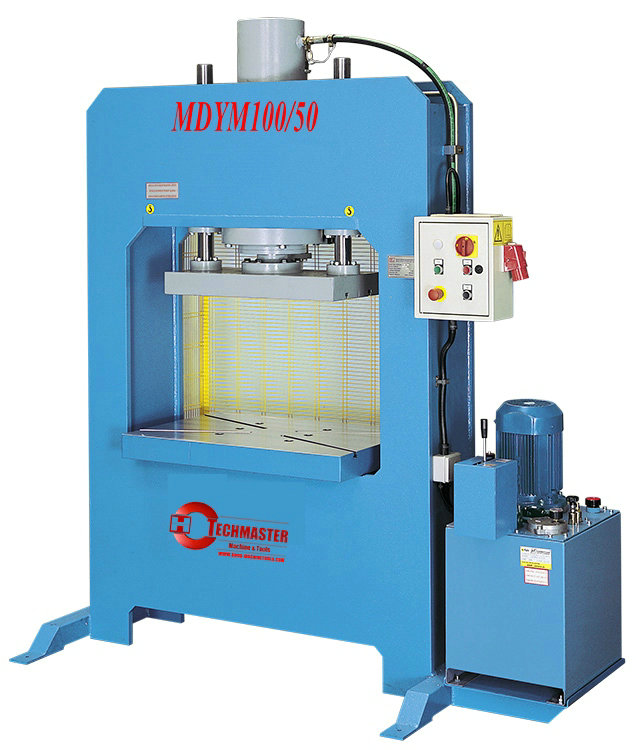

MDYM 100/50


Hydraulic Press for Bending, Blanking and Dies

strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
also suitable as try-out press
ram plate and large work table with T-slots for tool clamping
firmly bolted work table
adjustable end stop

Hydraulic Press MDYM63/50 MDYM100/50 MDYM150/50 MDY200/50
working area

pressure force 70 t 100 t 150 t 200 t
stroke 500 mm 500 mm 500 mm 500 mm
stroke speed 2 mm/s 2 mm/s 2 mm/s 2 mm/s
rapid feed 1080 mm/min 1320 mm/min 1200 mm/min 1200 mm/min
drive capacity

motor rating hydraulic pump 1,5 kW 4 kW 3,2 kW 7,5 kW
measures and weights

weight 1100 kg 1600 kg 3000 kg 4300 kg
