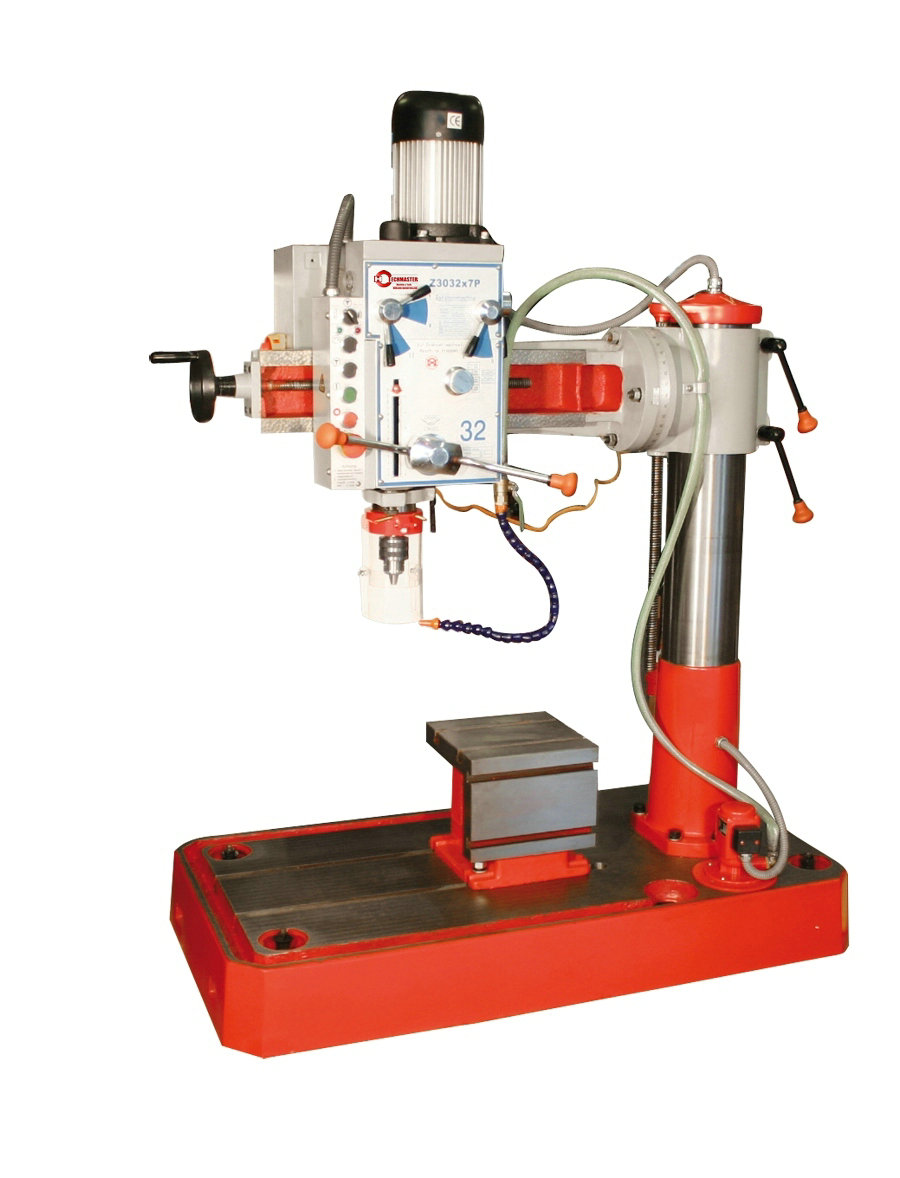

Z3032X7P
TECHMASTER
Model | Z3032*7P |
Max. Drilling capacity(mm) | 32 |
Max. Tapping capacity(mm) | Cost lron20 Steel16 |
Distance spindle axis to column generating line | 300 ~ 700 |
Diameter of column(mm) | 150 |
Spindle taper | MT3 |
Spindle travel | 150 |
Spindle speeds range(mm) | 100~ 1600 |
Spindle speeds series | 8 |
Spindle feeds(r/min) | 0.08 ; 0.14 ; 0.23 |
Rotary angle of rocker in hirizontal plane( °) | 360 |
Distance between spindle nose to working surface of base(mm) | 275 ~680 |
Dimension of Base(mm) | 250*250*250 |
Diameter of base(mm) | 1050*550*120/1200*625*255 |
Overall size(mm) | 1235*550*1195/1235*625*1230 |
Motor(w) | 750 or 1100 |
G.W./N.W.(Kg) | 475/380, 675/580 |
Packing dmension(cm) | 123*62*124 /127*69*138 |
