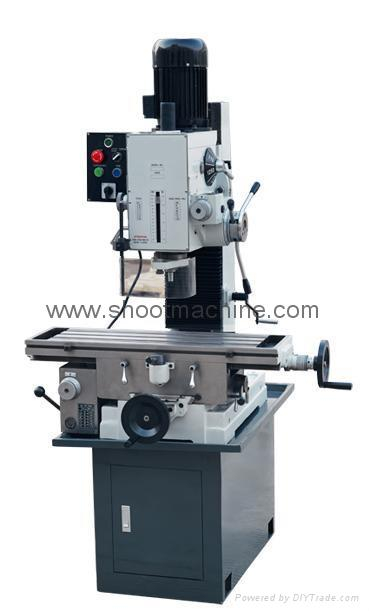

MECHANICAL WORKTABLE FEEDING FULLY INDUSTRIAL DRILLING AND MILLING MACHINE ZAY7045A-1 (ZAY7032A-1）(ZAY7040A-1)
Quantity: -
ZAY7045A-1
1.Product Description

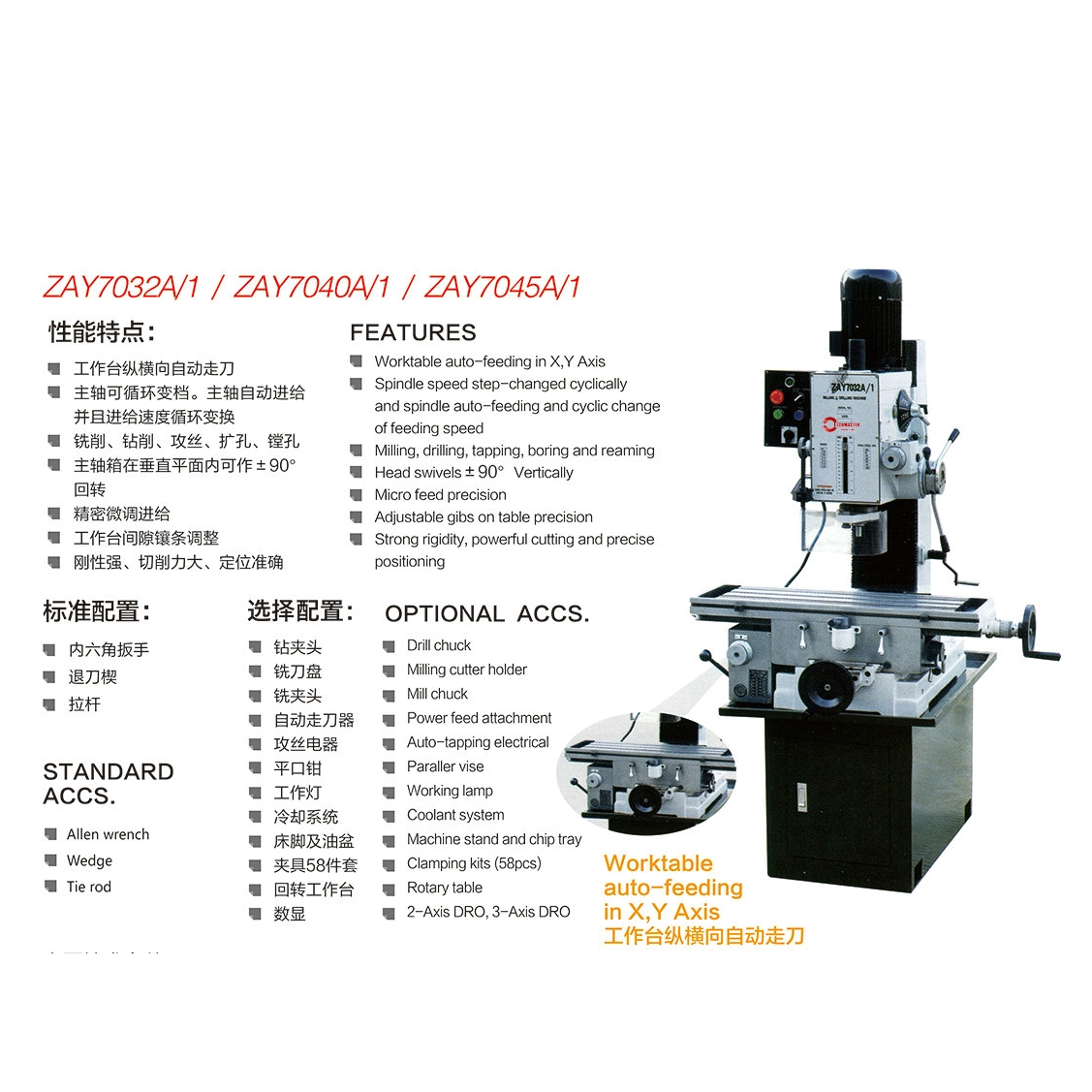

Features

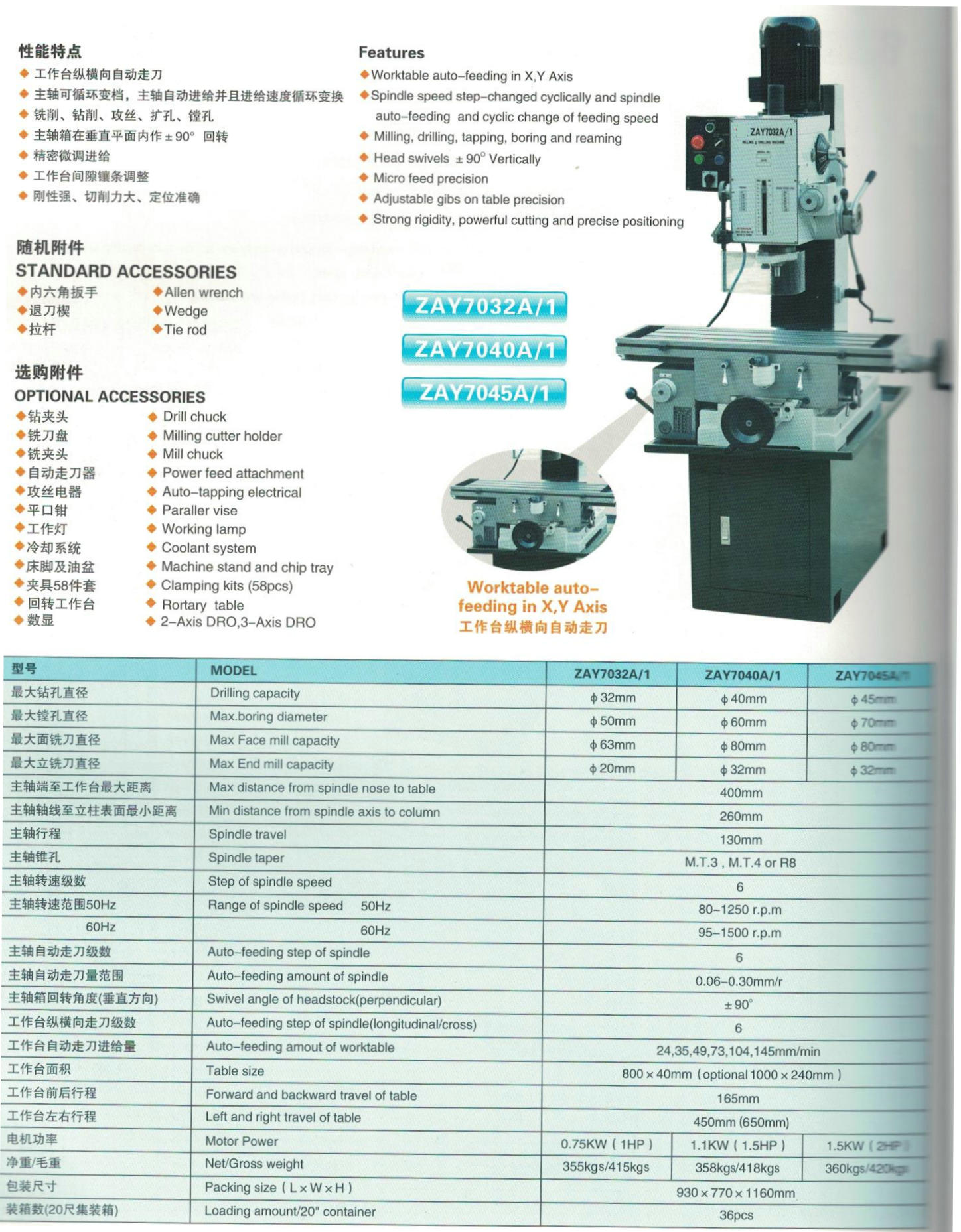

1)Worktable auto-feeding in X,Y Axis2) Spindle speed step-changed cyclically and spindle auto-feeding and cyclic change of feeding speed3) Milling,drilling ,tapping,boring and reaming4) Head swivels+-90' Vertically5) Micro feed precision6)Adjustable gibs on table precision7)Strong rigidity,powerful cutting and precise positioningSpecificationModel ZAY7032A/1 ZAY7040A/1 ZAY7045A/1 Drilling capacity 32mm 40mm 45mm Max.boring diameter 50mm 60mm 70mm Max Face mill capacity 63mm 80mm 80mm Max End mill capacity 20mm 32mm 32mm Max distance from spindle nose to table 400mm 400mm 400mm Min distance from spindle axis to column 260mm 260mm 260mm Spindle travel 130mm 130mm 130mm Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8 Step of spindle speed 6 6 6 Range of spindle speed 50Hz 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m 60Hz 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m Auto-feeding step of spindle 6 6 6 Auto-feeding amount of spindle 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r Swivel angle of headstock (perpendicular) ±90° ±90° ±90° Auto-feeding step of spindle(longitudinal/cross) 6 6 6 Auto-feeding amout of worktable 24,35,49,73,104,145mm/min 24,35,49,73,104,145mm/min 24,35,49,73,104,145mm/min Table size 800×240mm 800×240mm 800×240mm Forward and backward travel of table 165mm 165mm 165mm Left and right travel of table 450mm 450mm 450mm Motor Power 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP) Voltage/Frequency As customer's requirement As customer's requirement As customer's requirement Net weight/Gross weight 355kg/415kg 358kg/418kg 360kg/420kg Packing size 930×770×1160mm 930×770×1160mm 930×770×1160mm Loading amount 36pcs/20container 36pcs/20container 36pcs/20container 2.Machine Photo
