Quality Machine Tools

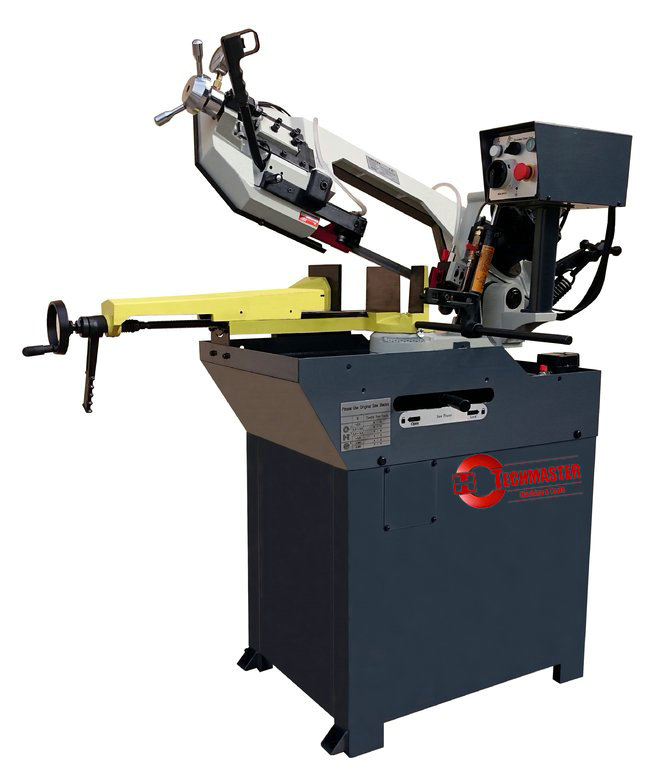

BF 270 SC TF-MANUAL AND CONTROLLED DESCENT
CARACTERISTICAS / FEATURES / CARACTERISTIQUES | |||
ES Tronzadora de sólido diseño y transmisión por engranajes, con: | |||
EN Strong design band saw and driven by gears with: | |||
FR Bande conception fort vu et entraînée par des engrenages avec: | |||
DATOS TÉCNICOS / TECHNICAL SPECIFICATIONS / CARACTERISTIQUES TECHNIQUES | | BF 270 SC TF | |
Alimentación / Voltage / Alimentation | V | 400 - F3 | |
Potencia / Power / Puissance | Kw - Hp | 1,1 - 1,5 | |
Velocidad / Speed / Vitesse | r.p.m. | 36 - 72 | |
corte 90º / Cutting capacity 90º / Capacité de coupe à 90° | 227 / 260x110 / 220x220 | ||
ad corte 45º / Cutting capacity 45º / Capacité de coupe à 45° | 150 / 200x125 / 145x145 | ||
dad corte 60º / Cutting capacity 60º / Capacité de coupe à 60° | 90 / - / 85x85 | ||
corte 45º izq. / Cutting capacity 45º L. / Cap. de coupe à 45° | - | ||
Apertura mordaza / Vice opening / Vice ouverture | mm. | 260 | |
Desarrollo sierra / Blade size / Dimension de la lame | mm. | 2455x0,9x27 | |
eso / Weight / Poids | kg. | 190 / 263 | |
imensiones / Dimensions / Dimensions | mm. | 1460x720x1100 |
