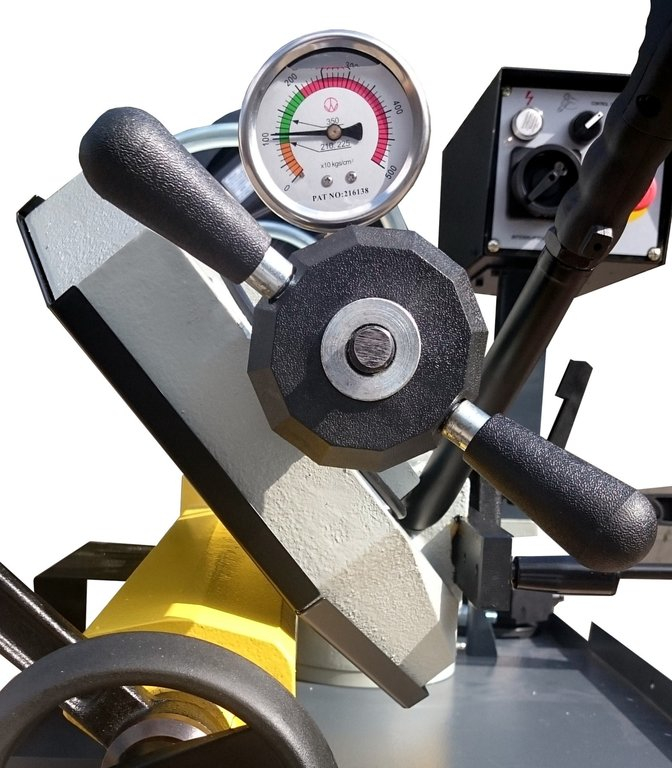

BF 350 DS TF - MANUAL AND CONTROLLER DESCENT
CARACTERISTICAS / FEATURES / CARACTERISTIQUES | |||
ES Tronzadora de sólido diseño y transmisión por engranajes, con: | |||
EN Strong design band saw and driven by gears with: | |||
FR Bande conception fort vu et entraînée par des engrenages avec: | |||
DATOS TÉCNICOS / TECHNICAL SPECIFICATIONS / CARACTERISTIQUES TECHNIQUES | | BF 350 DS TF | |
Alimentación / Voltage / Alimentation | V | 400 - F3 | |
Potencia / Power / Puissance | Kw - Hp | 1,5 - 2 | |
Velocidad / Speed / Vitesse | r.p.m. | 34 - 68 | |
Capacidad corte 90º / Cutting capacity 90º / Capacité de coupe à 90° | 270 / 350x220 / 260x260 | ||
Capacidad corte 45º / Cutting capacity 45º / Capacité de coupe à 45° | 240 / 240x160 / 220x220 | ||
Capacidad corte 60º / Cutting capacity 60º / Capacité de coupe à 60° | 160 / -- / 150x150 | ||
Cap. corte 45º izq. / Cutting capacity 45º L. / Cap. de coupe à 45° | 210 / -- / 180x180 | ||
Apertura mordaza / Vice opening / Vice ouverture | mm. | 350 | |
Desarrollo sierra / Blade size / Dimension de la lame | mm. | 3160x0,9x27 | |
Peso / Weight / Poids | kg. | 360 / 410 | |
Dimensiones / Dimensions / Dimensions | mm. | 1841x749x1092 |
