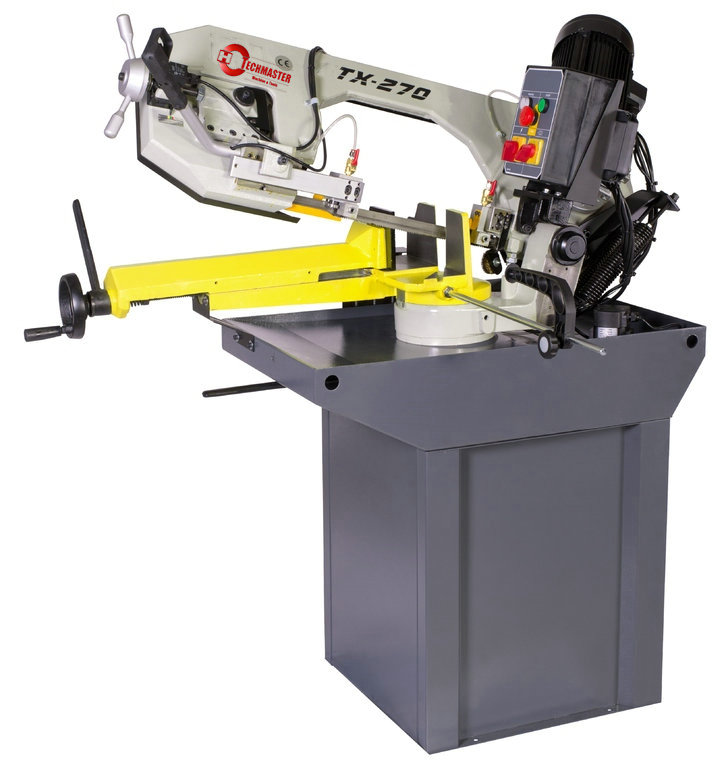

FTX 270 TF - MANUAL DESCENT
CARACTERISTICAS / FEATURES / CARACTERISTIQUES | |||
ES Tronzadora de sólido diseño y transmisión por engranajes, con: | |||
ENStrong design band saw and driven by gears with: | |||
FR Bande conception fort vu et entraînée par des engrenages avec: | |||
DATOS TÉCNICOS / TECHNICAL SPECIFICATIONS / CARACTERISTIQUES TECHNIQUES | | FTX 270 TF | |
Alimentación / Voltage / Alimentation | V | 400 - F3 | |
Potencia / Power / Puissance | Kw - Hp | 1,1 - 1,5 | |
Velocidad / Speed / Vitesse | r.p.m. | 35 - 70 | |
cidad corte 90º / Cutting capacity 90º / Capacité de coupe à 90° | 225 / 240x160 / 200x200 | ||
Capacidad corte 45º / Cutting capacity 45º / Capacité de coupe à 45° | 160 / 155x115 / 140x140 | ||
Capacidad corte 60º / Cutting capacity 60º / Capacité de coupe à 60° | 90 / 90x100 / 90x90 | ||
Cap. corte 45º izq. / Cutting capacity 45º L. / Cap. de coupe à 45° | -- | ||
Apertura mordaza / Vice opening / Vice ouverture | mm. | 260 | |
Desarrollo sierra / Blade size / Dimension de la lame | mm. | 2450x0,9x27 | |
Peso / Weight / Poids | kg. | 205 / 225 | |
s / Dimensions / Dimensions | mm. | 1300x640x950 |
