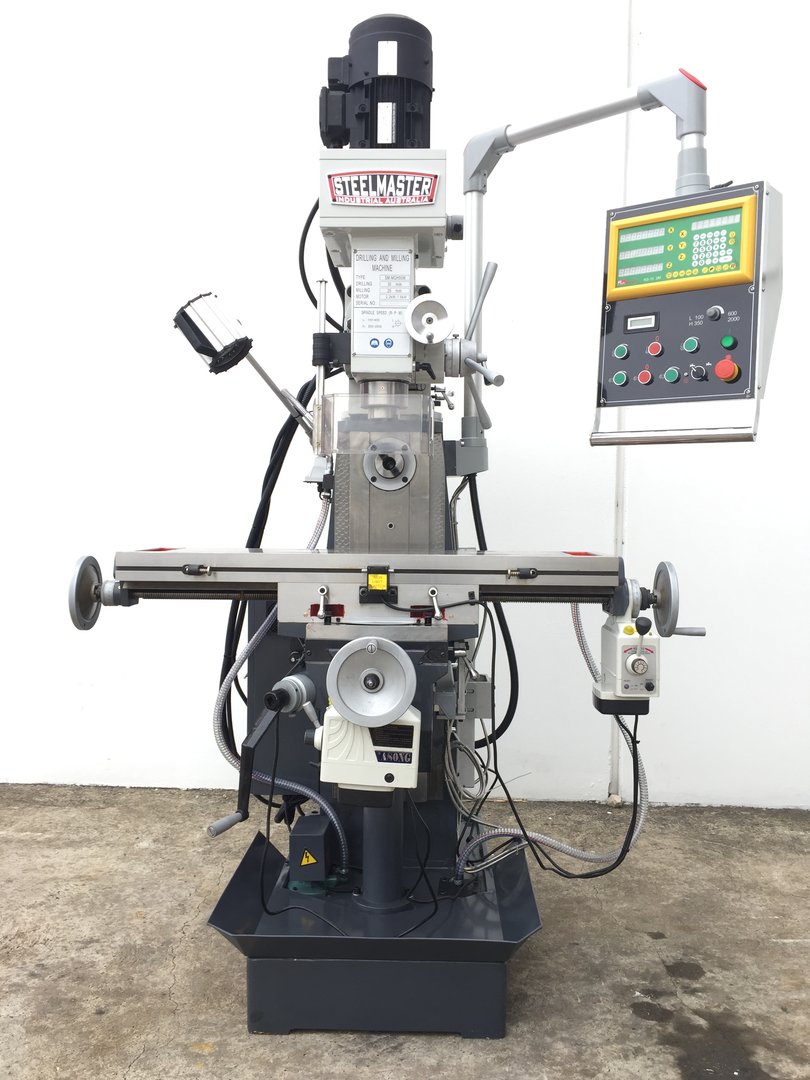

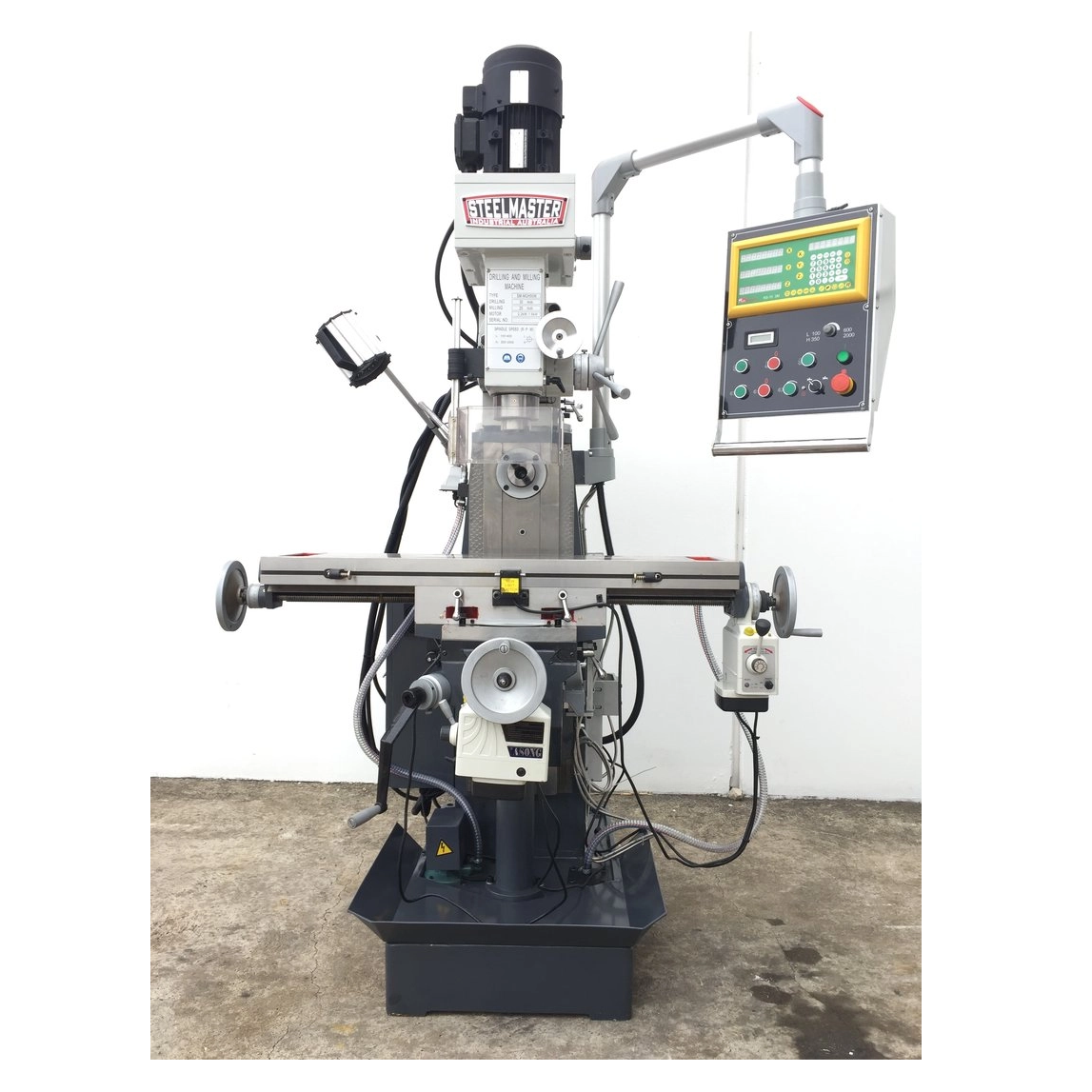

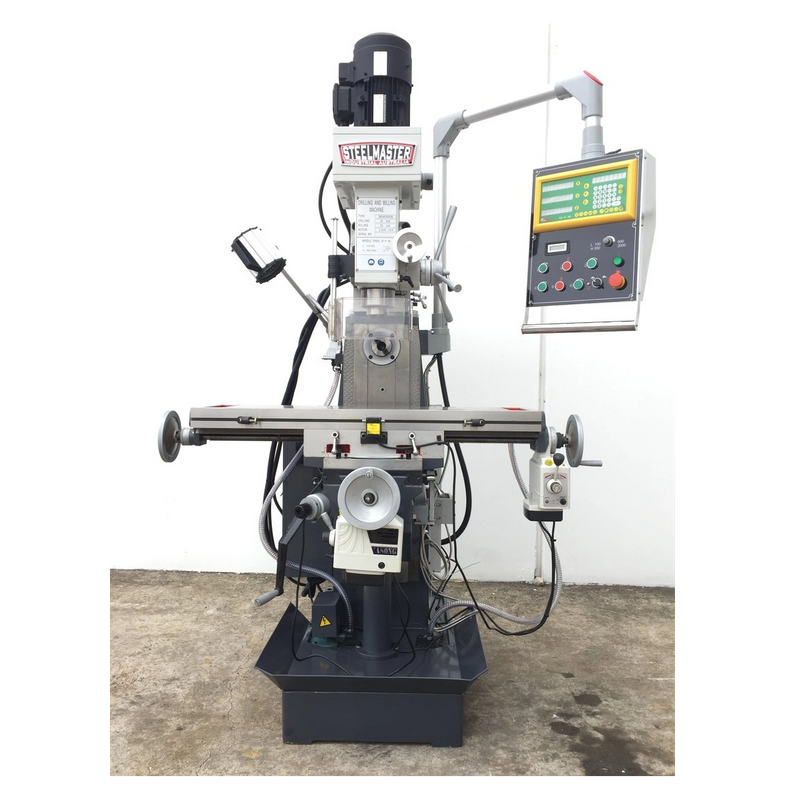

MGH50W. Universal Mill Steelmaster. Variable Speed, Gear Drive with 3 Axis Digital Readout

Quantity:
  • MGH50W. Universal Mill Variable Speed,

Variable speed  Head Universal Milling Machine with 240VOLT Power!
It has all the features that larger mills have like power table feeds and a long quill travel with a calibrated stop adjuster. The very heavy castings and large slide surfaces will give incredible performance and stability. And with the turret type head, its capacities are quite large. All this combined with the flexibility of a Horizontal Arbour and Variable Speed 240Volt operation makes this your best partner.
Shop around, won't find this kind of value in a mill of this type and size.

Features
❚ compact and practical milling machine manufactured from vibration dampening cast iron

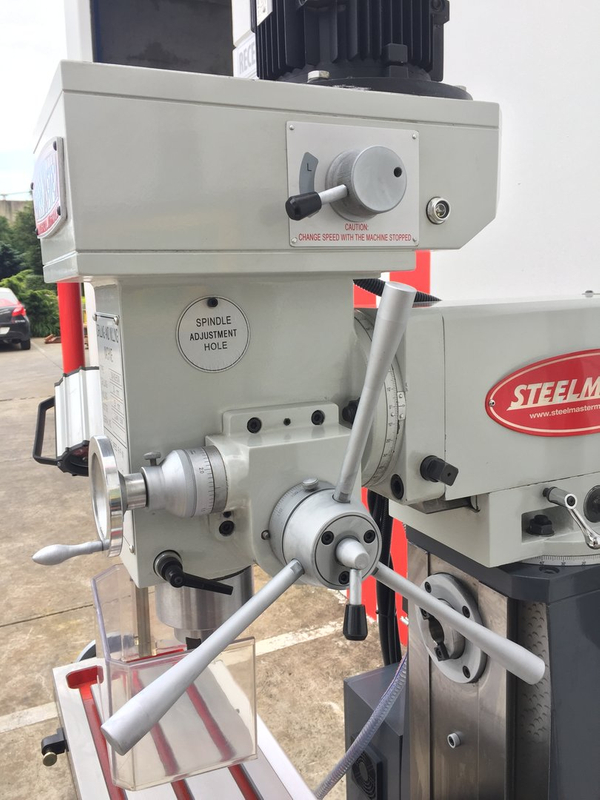

❚ swivelling head to 90°& table to 45°
❚ 30 ISO horizontal and vertical spindles are hardened and ground
❚ precision-machined dovetail slide ways and table
❚ forward and reverse on/off switch
❚ fine hand wheel operated quill feed
❚ swivel table & two arbours for the horizontal spindle
❚ calibrated hand wheels fitted on all movement directions
❚ height adjustment of work table through ergonomically designed crank handle. all 3 axis are fitted with clamping devices
❚ 2 axis power table feeds
❚ 3 axis DRO fitted
❚ 240Volt operation

Technical Data - Snap Shot
❚table size - 1000mm x 240mm
❚X travel - 600mm manual feed / 560mm power feed
❚Y travel - 180mm

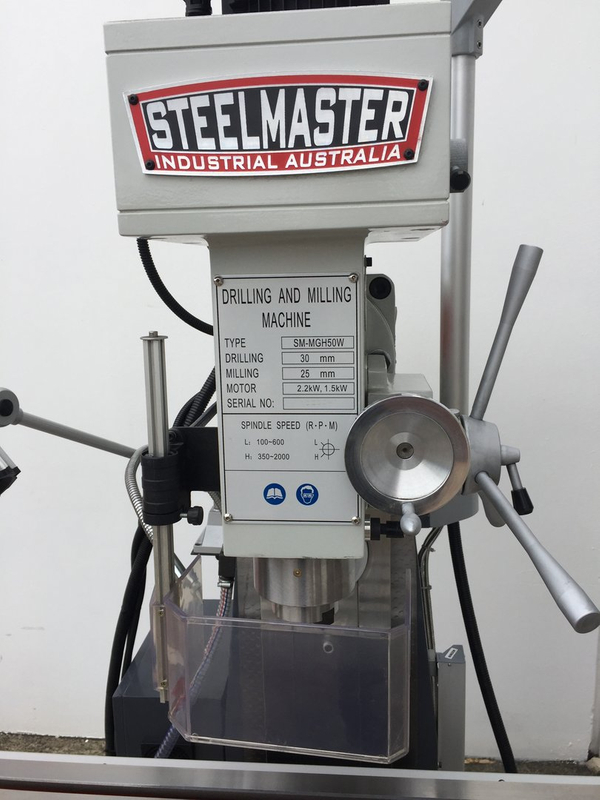

❚vertical speeds - 100 ~ 600 (low) & 350 ~ 2000 (high) Variable Speed.
❚horizontal speeds - 60 ~ 1350 Manually Adjusted.
❚motor capacity - 1.5Kw x 240Volt
❚shipping dimensions - 1140mm x 1340mm x 2240mm
❚approx weight: 1250kg

Includes
❚ 3 Axis digital readout system
❚ 2 x Axis power-feed

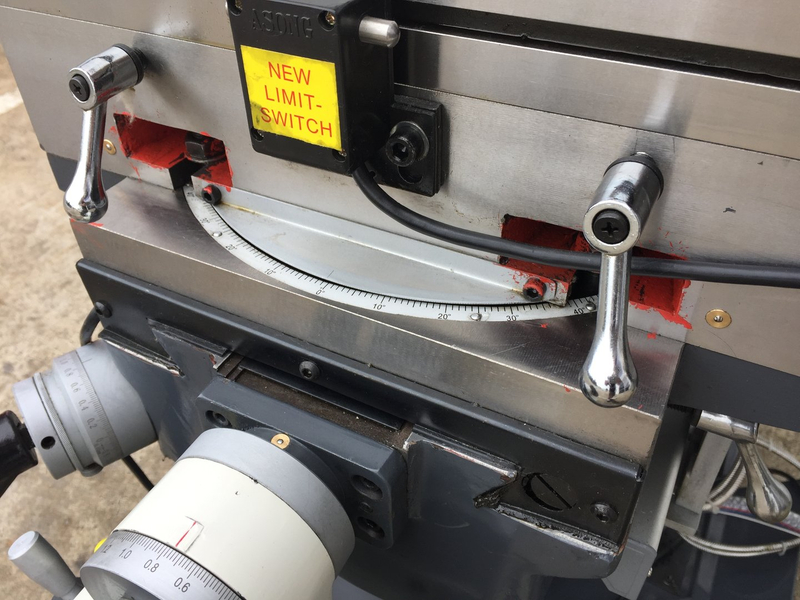

❚ 45 degree swivel table - left & right
❚ safety cutter guard
❚ swarf tray
❚ coolant system
❚ drill chuck & arbor
❚ 2 x horizontal arbors
❚ 2 x NT30 (ISO 30) to 2 & 3MT adaptors
❚ NEW LED lamp
