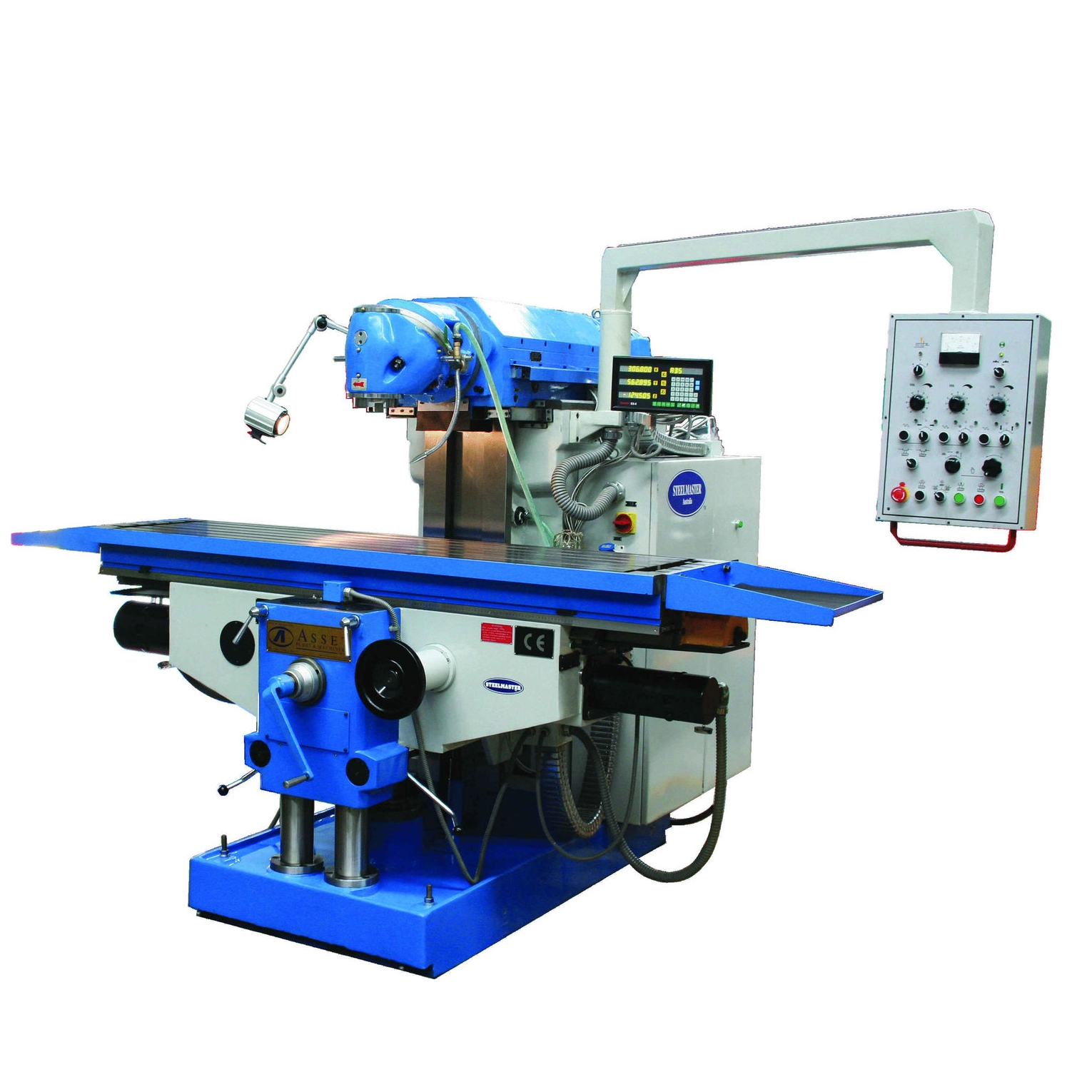

MHD2000. Universal Mill . ISO 50, 2000mm x 500mm Table, 3 Axis Servo Drive & Feeds,

Quantity:
  • MHD2000. Universal Mill
Description
Heavy duty universal mill offering servo drive operating in X, Y & Z axis. Combining and extra large working area and large travels to suit, we are confident this will cover your milling applications. Quality build and features this Mill offers muscle combined with built-in durability for years of service. Turcite - B coated guides, X axis dovetail guides, spindle brakes, pre loaded ball screws with zero backlash to name a few features. This is the machine to have for years of accurate, trouble-free operation.

Features

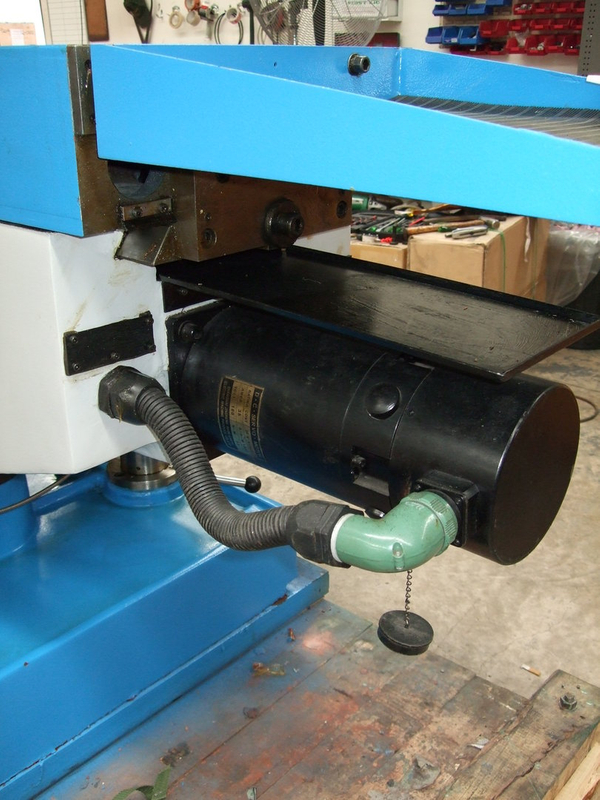

❚ infinitely variable feed speeds controlled via DC servo(MHD1600-2000 only).
❚ rapid feed on all 3 axis
❚ heavy duty ribbed machine frame ensures maximum rigidity
❚ rigid, torsion proof powered overarm

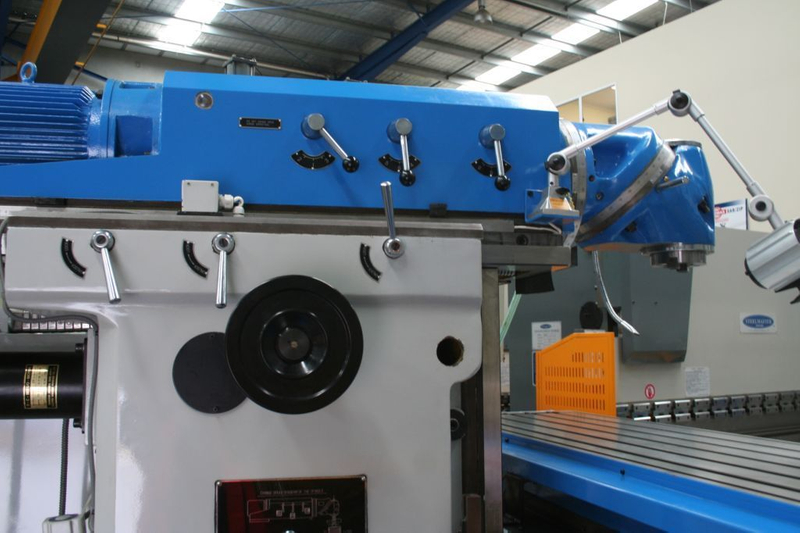

❚ universal by-rotative milling head
❚ safety interlocks to prevent simultaneous use of feed and table clamping

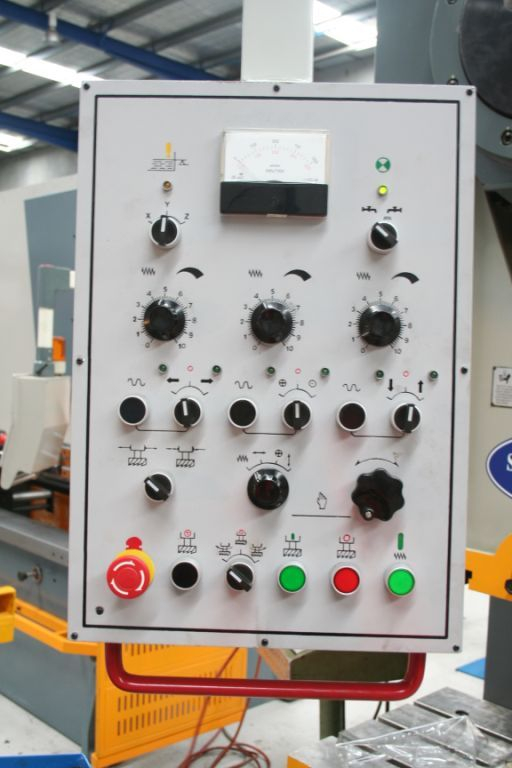

❚ ergonomic pendant type control console for easy access
❚ electric spindle brake
❚ automatic lubrication system
❚ suds pump and coolant system
❚ halogen work light
❚ multifunction 3 axis DRO
❚ splash guard / chip tray
❚ tool kit supplied
❚ operation manual

Technical Data - Snap Shot
❚table size - 2000mm x 500mm
❚X / Y / Z travel - 1500mm / 650mm / 500mm
❚head type - universal
❚universal head spindle fixture - ISO / INT-50
❚operating speeds - 30 ~ 2050 - (27)
❚motor capacity - 7.5Kw x 240Volt
❚shipping dimensions - 2400mm x 2800mm x 2100mm
❚approx weight: 6000kg

Includes
❚ 3 Axis digital readout system
❚ 2 x Axis power-feed
❚ safety cutter guard
❚ swarf tray
❚ coolant system
❚ halogen lamp
❚ machine vice
