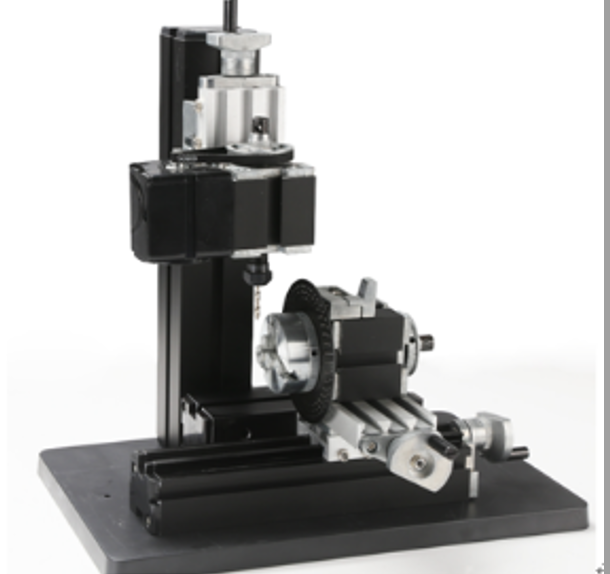

MINI METAL DRILLING MACHINE WITH DIVIDING TABLE 10002M
Quantity: Feature:
1.Main parts: headstock, radial arm, long machine bed, short machine bed, small slider, big slider, motor blade, connection piece, dividing positioned, gear etc. All parts are made of metal.
2. By using dividing plate, material can be drilled equally.
3. There are three circles of the holes on the dividing plate with 36, 40 and 48 holes.
Technical parameters:
1.Motor speed: 20,000rpm/min
2. Input voltage/current/power: 12VDC/2A/24W
3. Working material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)
4. Maximum diameter for three-jaw chuck: 50mm
5. There is over-current protection, over-voltage protection and over-heating protection for transformer.
6. With 0.02mm scale line, the hand wheel increases the precision when processing.
Feature:
1.Main parts: headstock, radial arm, long machine bed, short machine bed, small slider, big slider, motor blade, connection piece, dividing positioned, gear etc. All parts are made of metal.
2. By using dividing plate, material can be drilled equally.
3. There are three circles of the holes on the dividing plate with 36, 40 and 48 holes.
Technical parameters:
1.Motor speed: 20,000rpm/min
2. Input voltage/current/power: 12VDC/2A/24W
3. Working material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)
4. Maximum diameter for three-jaw chuck: 50mm
5. There is over-current protection, over-voltage protection and over-heating protection for transformer.
6. With 0.02mm scale line, the hand wheel increases the precision when processing.
