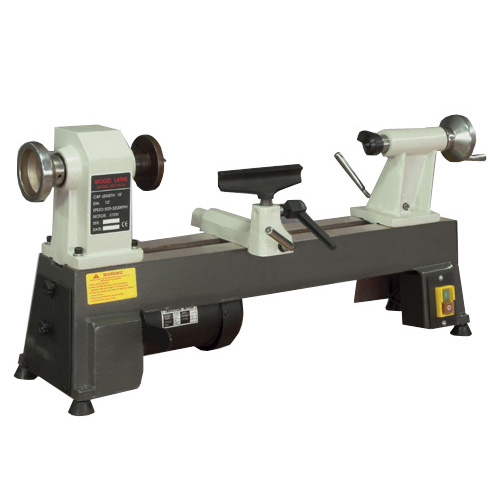

MC1018
* Complete cast iron structure provides solid and stable turning experience
* Quick belt-change design
* 5 choices of speed/torque for different projects
* Optional 550mm bed extension available, enables total working length of 1,000mm
01) Motor: 370W
02) Motor step: 5
03) Spindle speed: 500 to 3,150rpm
04) Swing over bed: 254
05) Distance between centers: 457
06) Drive spindle: 1/8-inch RH thread or other
07) Head and tailstock taper: #2 morse or other
08) Face plate: 3 inches
09) Tool rest: 6 inches
10) Net/Gross weight: 38kg/41kg
11) Packing size: 820 x 300 x 430mm
12) Units per 20-foot container: 245
The model number for MC1018 with extension bed is MC1039
Net weight: 38kg/Gross weight: 41kg
