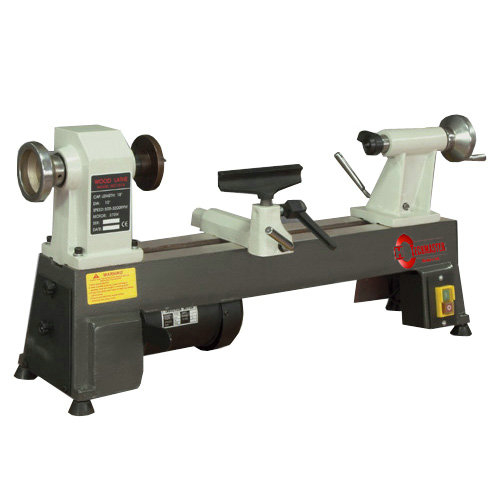

MINI WOOD LATHE MC1218 12X18 CAST IRON 550W

Availability:
Quantity:
  • MC1218


MINI WOOD LATHE 12X18 CAST IRON 550W

* Complete cast iron structure provides solid and stable turning experience

* Powerful 550W DC motor

* Quick belt-position-change design

* 5 choices of speed/torque for different projects

* Running very smoothly and quietly

* Optional 550mm bed extension available, enables total working length of 1,000mm

* Excellent for begginner



Product Description


01) Motor: 550W

02) Motor step: 5

03) Spindle speed: 500 to 3,150rpm

04) Swing over bed: 305mm

05) Distance between centers: 457mm

06) Drive spindle: 1/8-inch RH thread or other

07) Head and tailstock taper: #2 morse or other

08) Face plate: 3 inches

09) Tool rest: 6 inches

10) Net/Gross weight: 40/43kg

11) Packing size: 840 x 460 x 300mm

12) Units per 20-foot container: 245

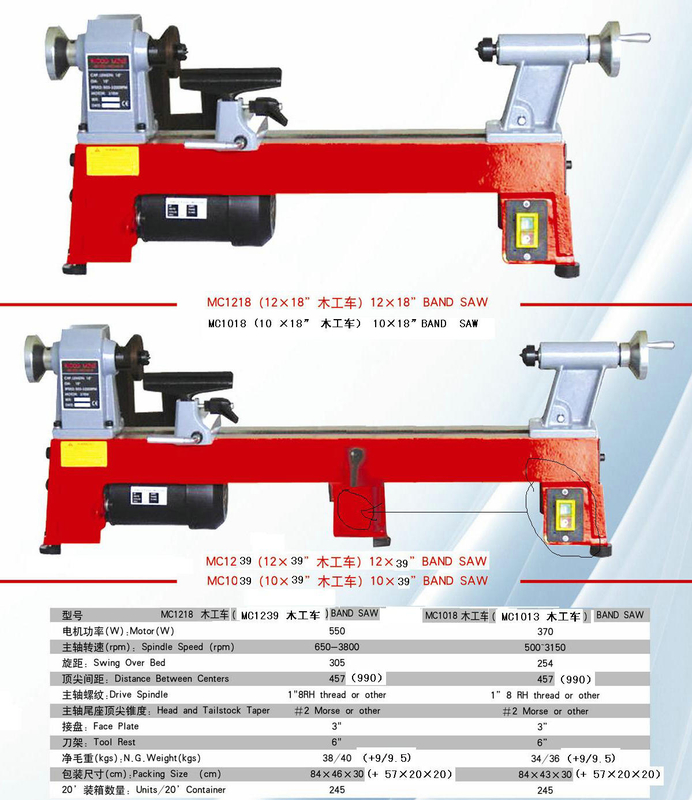

The model number for MC1218 with extension bed is MC1239





Packaging & Shipping

Net weight: 40kg, Gross weight: 43kg

Packing size: 840 x 460 x 300mm

Units per 20-foot container: 245
