MULTI-PURPOSE MACHINE AT750

Quantity:
  • AT750

DESCRIPTION

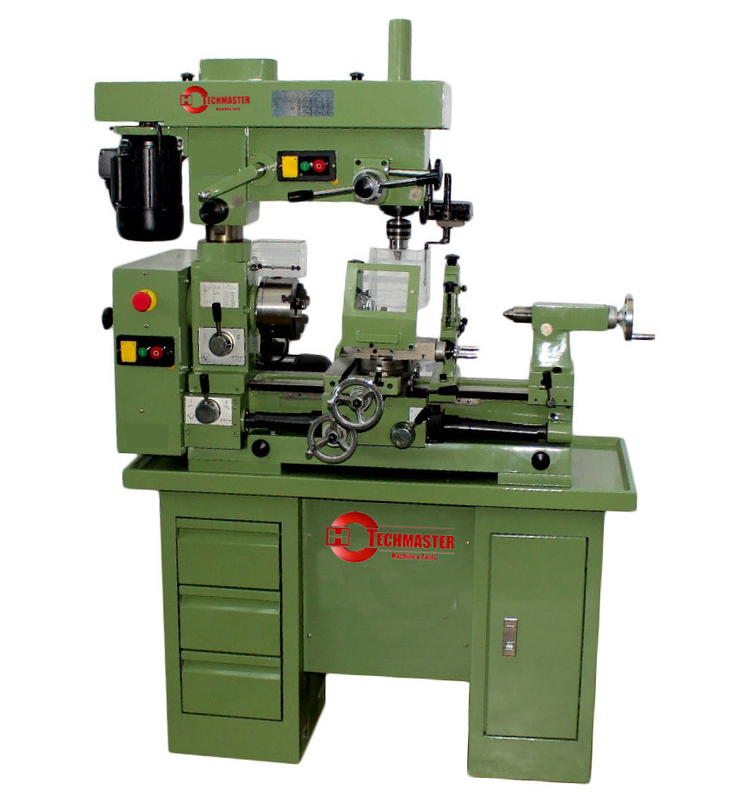

In this metalworking machine the metal lathe is bigger than in master 520 because the distance between center is 750 mm. As well as the smallest model it has two indipendet single phase motors 750 an automatic, the feed in both direction (cross and longitudinal) and can perform metric and inch threads with extreme precision. The basic model is supplied with 2 independently 750W in single phase motor. The standard machine is supplied with a 3 jaw chuck, 2 dead centre with conical attack, 2 rest, metal stand and working tool kit.

Technical data
DIMENSIONS
Dimensions with stand 1150 mm (L) x 500 mm (W) x 1680 mm (H)
Dimensions without stand 1100 mm (L) x 500 mm (W) x 900 mm (H)
Net weight 275 Kg
METAL LATHE
Distance between centers 750 mm
Centre Height 155 mm
Max swing over the bed 300 mm
Chuck diameter 130 mm
Spindle Bore 26 mm
Range of spindle speeds 160 to 1600 rpm
Metric thread 0,5 mm to 3 mm
Inch thread 11 to 40 TPI
Longitudinal travel 570 mm
Cross travel 250 mm
Tail stock taper CM3
Spindle taper CM4
Powerful motor 750 W
Voltage motor 1 Phase (220 V)
Milling and Drilling
Spindle taper CM3
Spindle dia. 80 mm
Spindle speeds Da 125 a 1600 rpm
Head tilt 360°
Table size 425 mm x 150 mm
Powerful motor 750 W
Voltage motor 1 Phase  (220 V)
FEED
Longitudinal feeds Automatic in both direction
Cross feeds Automatic in both direction
