Features:

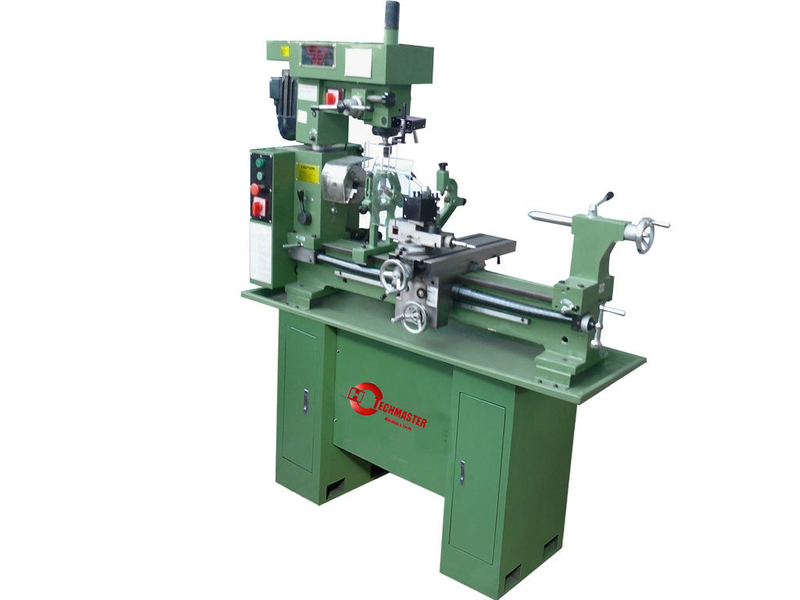

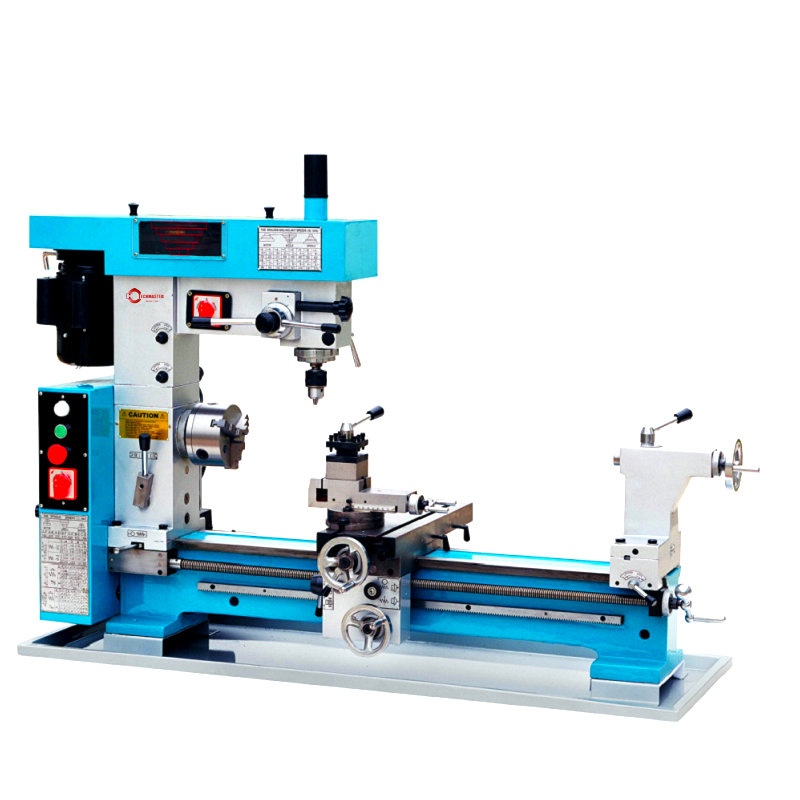

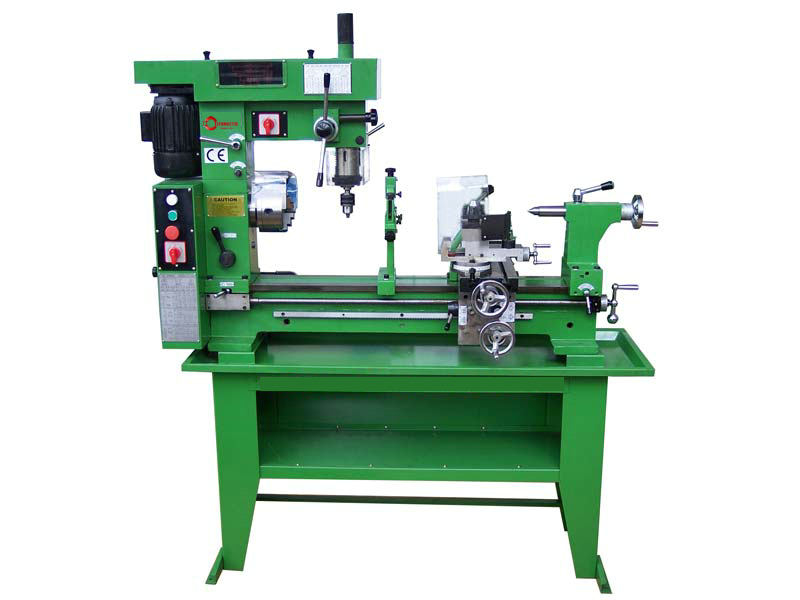

A kind of combination machines with turning, milling, drilling and threading.
Metric or imperial thread cutting
Suitable for processing metal, wood and other materials
Excellent advantage of various functions, small occupation and economization
| MOTOR | 550 W 230 V 50 hz (x2) |
| SWING OVER BED | 420 mm |
| DISTANCE BETWEEN CENTERS | 800 mm |
| LONGITUDINAL TRAVEL | 740 mm |
| CROSS TRAVEL | 200 mm |
| SPINDLE BORE | 28 mm |
| STOCK BARREL | 70 mm |
| SPINDLE TAPER (HEAD) | M.T.#4 |
| TAIL-STOCK BARREL TAPER | M.T.#3 |
| PITCH | 6 TPI or 4 mm |
| RANGE OF SPINDLE SPEED | 7 speeds 160 – 1360 rpm |
| THREAD THAT CAN BE CUT | 0.2 – 6 mm |
| RANGE OF AUTO FEEDING (LONGITUDINAL & CROSS) | 0.05 – 0.35 mm |
| MAX DRILLING Ø | 22 mm |
| MAX END MILLING CUTTER Ø | 28 mm |
| MAX FACE MILLING CUTTER Ø | 80 mm |
| MAX DISTANCE BETWEEN SPINDLE CENTER TO COLUMN | 285 mm |
| MAX DISTANCE BETWEEN NOSE AND TABLE | 306 mm |
| SPINDLE TAPER | M.T.#3 |
| SPINDLE TRAVEL | 110 mm |
| RANGE OF SPINDLE SPEED | 16 speeds 120 – 3000 RPM |
| TABLE SIZE | 475 x 160 mm |
