Milling and drilling machin UWF80
Quantity: -

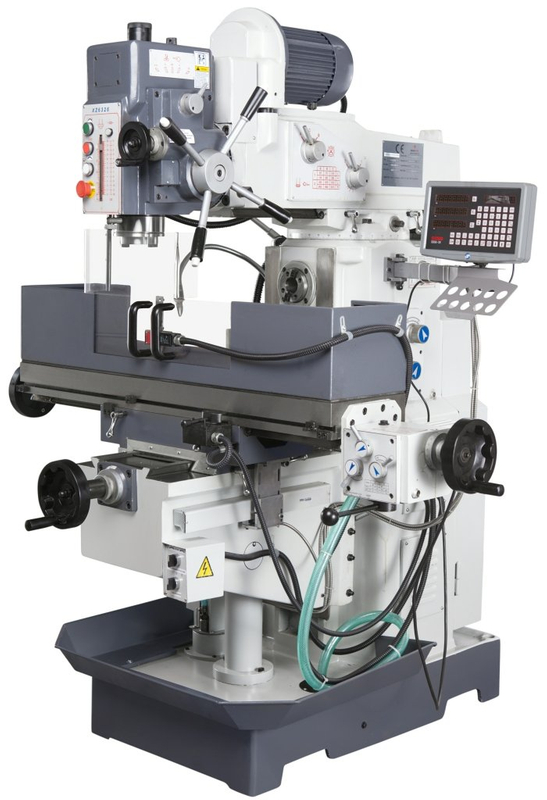

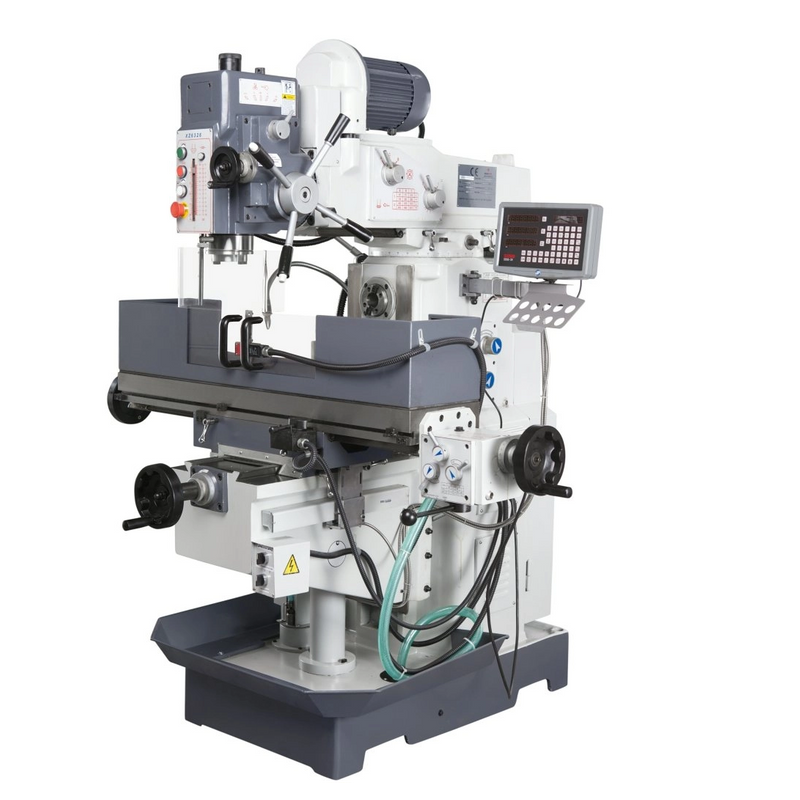

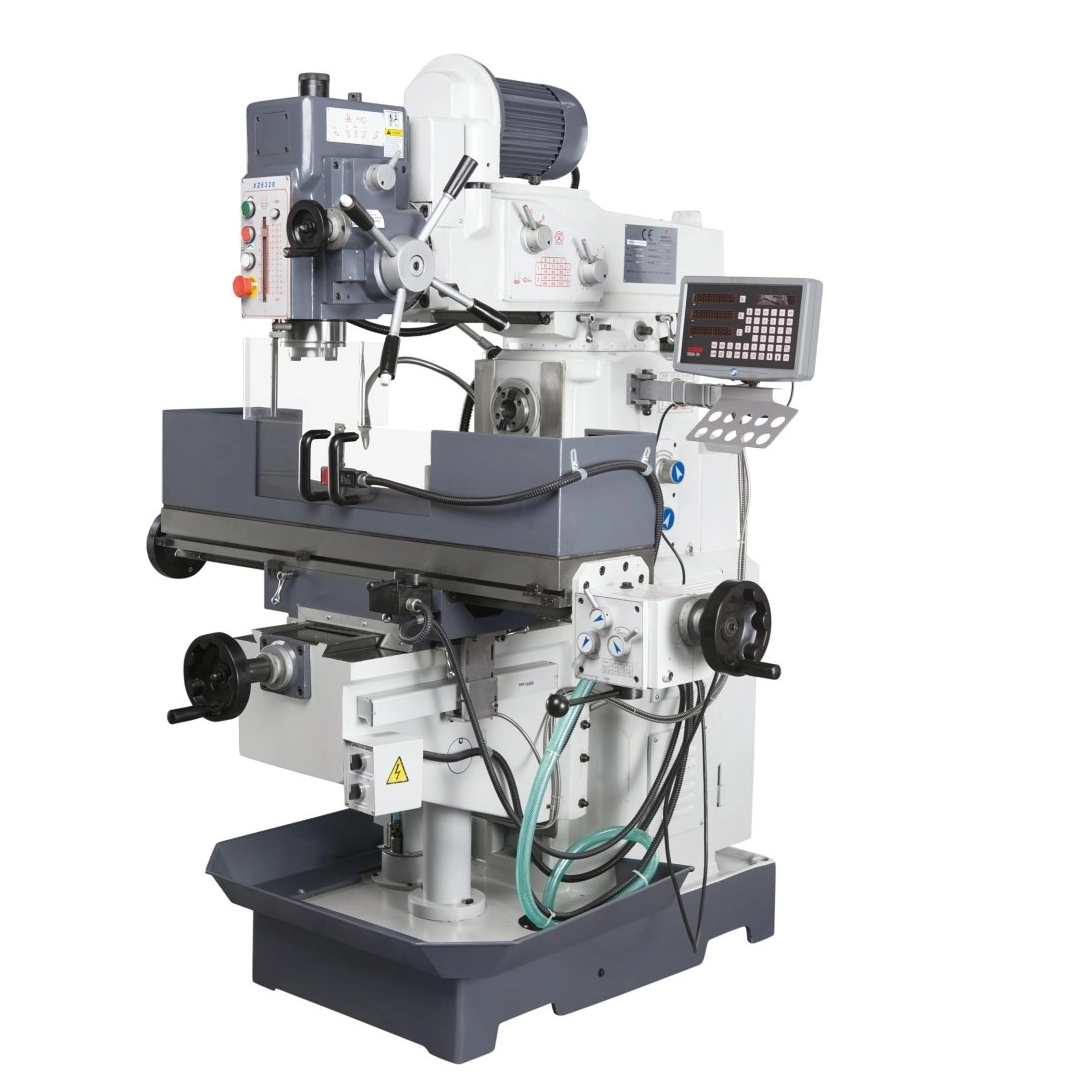

Milling and drilling machine UWF80

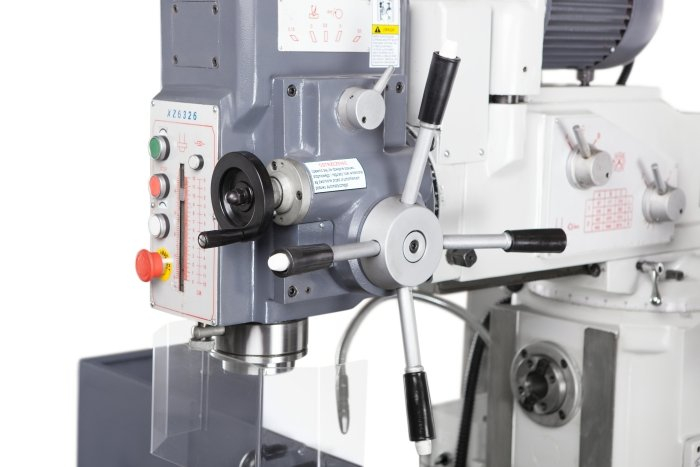

The milling and drilling machine is designed for milling, drilling and threading work. It is equipped with a hand and mechanical spindle pinole feed.
- Broad scope of use
- Machine easy operation
- Possible vertical and horizontal operation

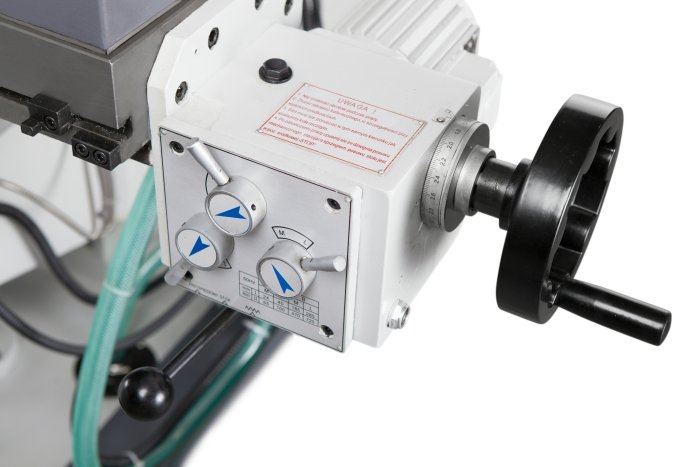

- Spindle power feed
- Possibility of mechanical threading
- Hardened guides

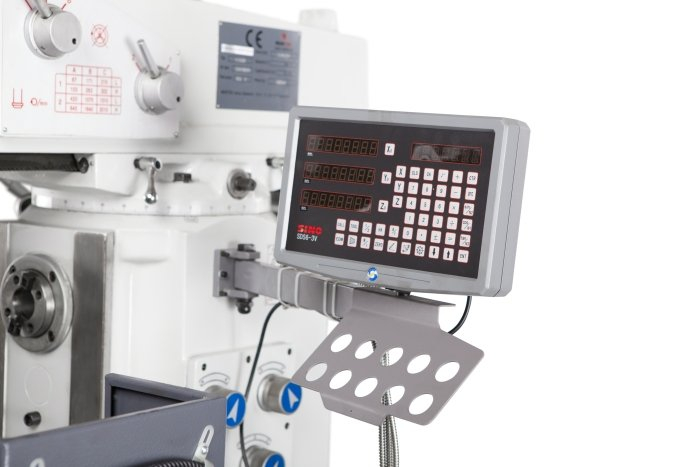

- Digital readout for 3 axes
- Precisely made
- Rich standard equipment
Standard equipment
- Drill chuck 1 – 16 mm
- Reducing milling arbors ISO 40/Morse
- Long milling arbors for horizontal milling 2 pcs
- Milling arbor with collets set for end mills
- Tools kit
- Lighting installation – 24 V
- Cooling system
- TOD in Polish language
- EC Declaration
Technical data
Table working dimensions (mm)
1270 x 260
Table travel longitudinal (mm)
600
Table travel cross (mm)
300
Table - column vertical travel (mm)
80 - 460
T-slots in table - number
3
Distance between T-slots (mm)
60
Maximum table load (kg)
300

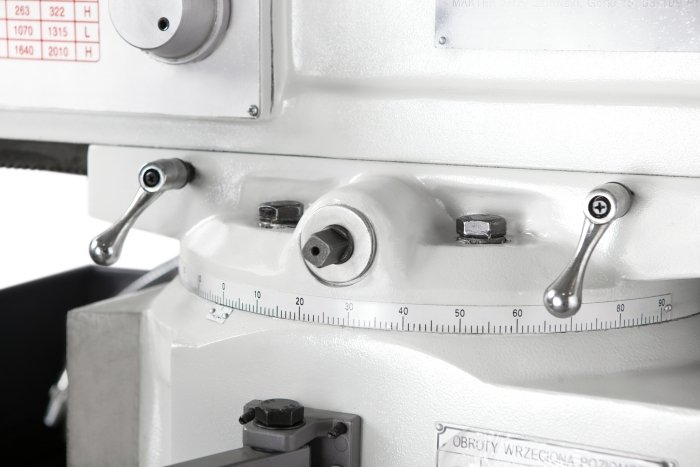

Vertical head - type
swivel 90°
Spindle
extension L - 120 mm
Spindle taper
ISO 40
Spindle power feed (mm/rotation)
0.1 – 0.15 – 0.30, spindle with mechanical threading option
Vertical spindle speed (rpm)
67 - 2010
Horizontal spindle speed (rpm)
38 - 1310
Travel longitudinal (mm/min)
24 - 402
Rapid feed (mm/min)
1024
Upper beam travel
450
Vertical spindle - column distance (mm)
200 - 500
Horizontal spindle - table distance (mm)
0 - 300
Digital readout
for 3 axes
Main motor power (kW)
2.2
Vertical spindle motor power (kW)
1.5
Overall dimensions (L x W x H)
1580 x 1450 x 2150
Weight (kg)
1350
