Milling and drilling machine UWF130
Quantity: -

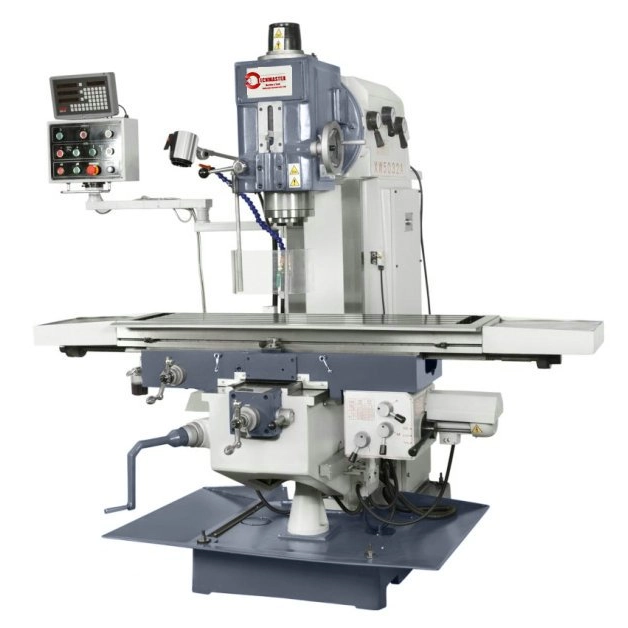

Milling and drilling machine UWF130

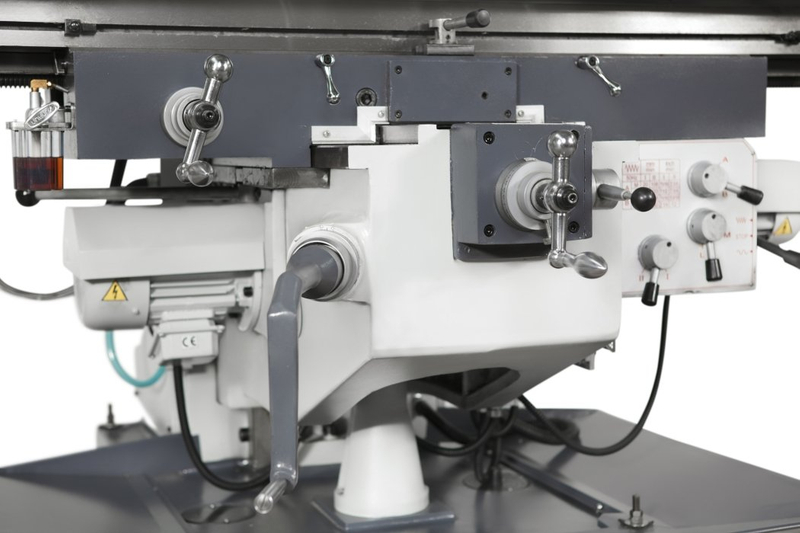

The milling machine UWF 130 is characterised by a simple and rigid construction what enables a broad range of use. Moreover it has very rich standard equipment e.g. a machine vice, a vertical swivel head and digital readouts, automatic feeds in X, Y, Z and a swivel table.
Standard equipment
- Digital readout for 3 axes
- Reducer sleeve ISO 50/Morse
- Milling arbor ISO 50 with collets set for end mills
- Milling arbor puller
- Tools kit
- Lighting installation - 24 V
- Cooling system
- TOD in Polish language
- EC Declaration
Technical data
Table working dimensions (mm)
1320 x 320
Table travel longitudinal (mm)
1000
Table travel cross (mm)
300
Table – column vertical travel (mm)
400
T-slots in table - number
5
Distance between T-slots (mm)
63
Maximum table load (kg)
600
Vertical spindle - column distance (mm)
350
Vertical spindle - table distance (mm)
45-445
Upper beam travel
-----------------

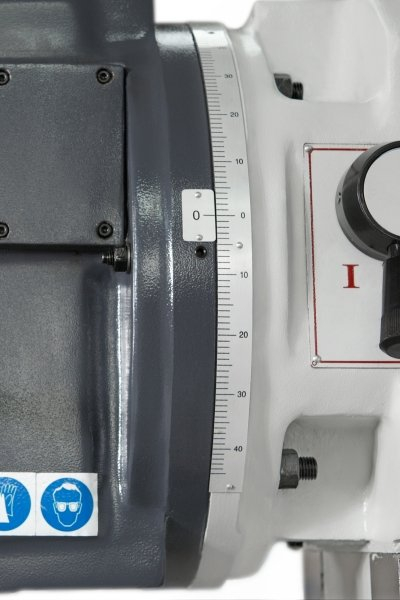

Vertical head - type
swivel – 45o

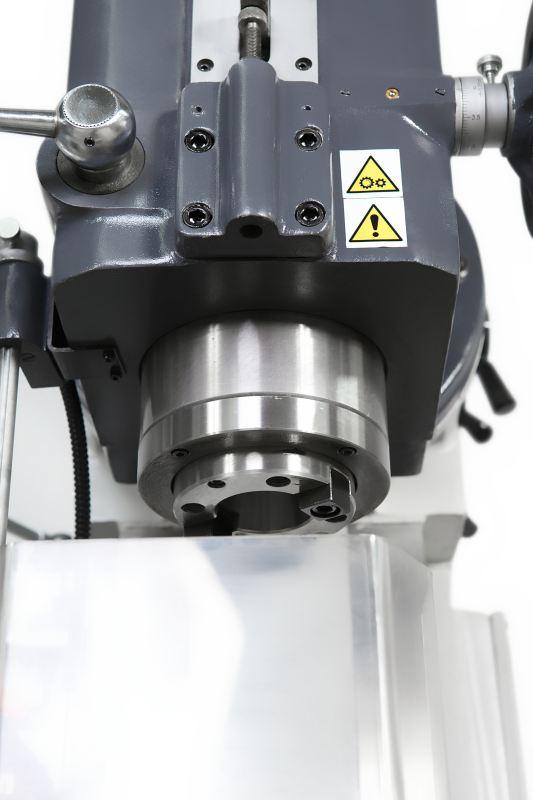

Spindle
Moved out L ? 70 mm
Spindle taper
horizontal - ISO 50
Vertical spindle speed (mm/min)
(12) 58 ? 1710
Travel longitudinal (mm/min)
(8) 20 - 360
Horizontal spindle speed (mm/min)
-----------------
Vertical feed speed range (mm/min)
quick - adjustable 670
Rapid feed (mm/min)
1200
Digital readout
3 axes
Main motor power (kW)
4
Overall dimensions ( L x W x H ) (mm)
2100 x 1820 x 1880
Weight (kg)
2300
