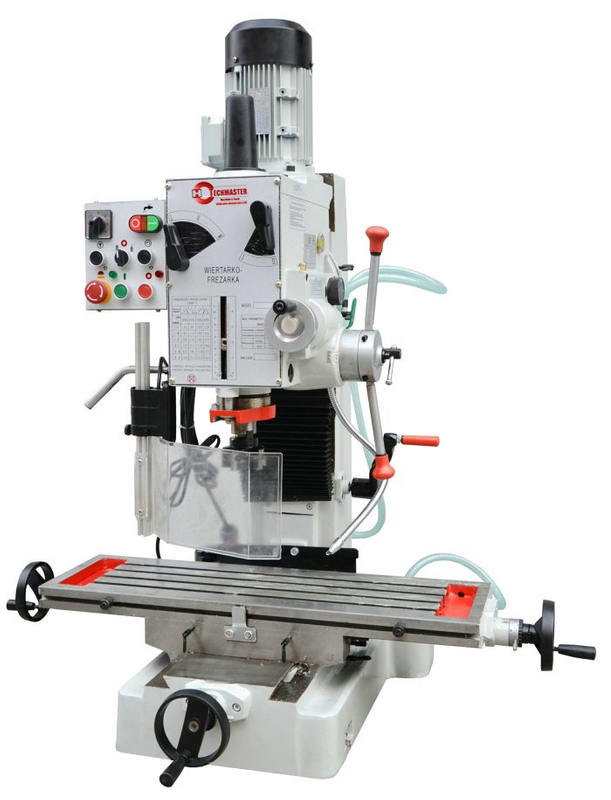

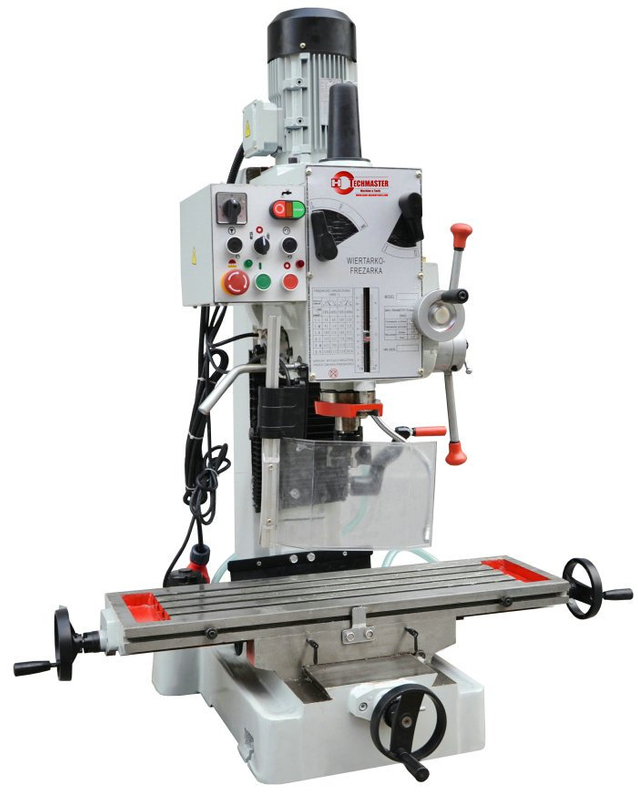

Milling and drilling machine XLZX 7045 B1
Quantity: -
Milling and drilling machine XLZX 7045 B1
The machine can be used for holes drilling, reaming and broaching up to 45/40 mm in cast iron and threading of bolts up to M12 mm, milling up to 80 mm width as well as notches up to 22 mm. It is also suitable for face milling and cutting. On the machine various accessories can be installed.
Product characteristics
- HEAVY, STABLE IRON CASTING
- AUTOMATIC FEED
- MILLING MACHINE HEIGHT CONTROLLED ON SLIDE AND NOT ON COLUMN
- ADDITIONALLY LIQUID COOLING
- MASSIVE CROSS TABLE WITH PRECISELY GROUND SURFACE
- GUIDES IN DOVETAIL SHAPE
- SILENT OPERATION THANKS TO GROUND TOOTHED WHEELS
- LEFT AND RIGHT ROTATIONS
- SWIVEL HEAD +/- 90°
- CONTROLLED HEAD HEIGHT
TECHNICAL DATA:
DRILLING IN STEEL OUTPUT
32 mm
DRILLING IN CAST OUTPUT
45 mm
FACE CUTTER DIAMETER
80 mm
SHANK CUTTER DIAMETER
28 mm
SPINDLE SPEED
50 - 3024 rpm (6/12)
ARBOR HOLDER
MT 4
SPINDLE FEED
110 mm (AUTOMATIC FEED)
WORK TABLE DIMENSIONS
820 mm x 240 mm
MAX. SPINDLE DISTANCE FROM TABLE
475 mm
TRAVEL DISTANCE LONGITUDINAL (X)
550 mm
TRAVEL DISTANCE CROSS (Y)
170 mm
SWIVEL HEAD, RIGHT/LEFT
90°
MOTOR POWER
1.3/1.8 kW
POWER SUPPLY
400 V
WEIGHT
360 kg
