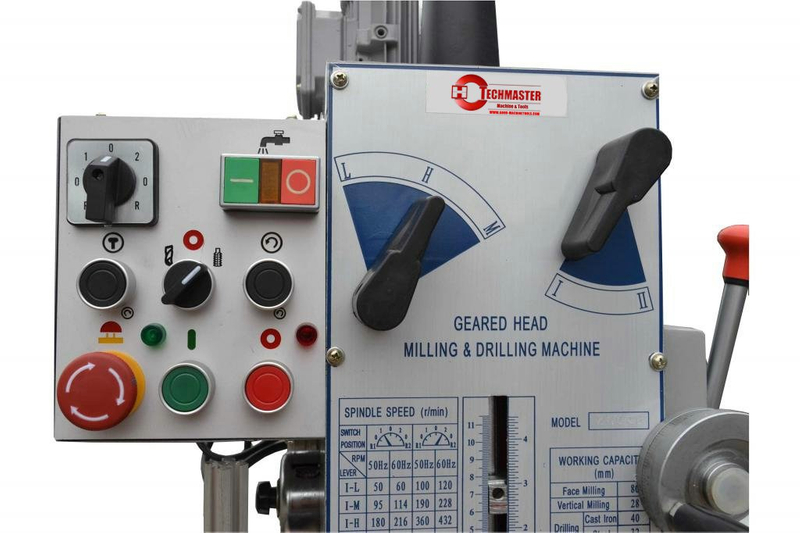

Milling and drilling machine ZX 7040 B1
Quantity: -
Milling and drilling machine ZX 7040 B1

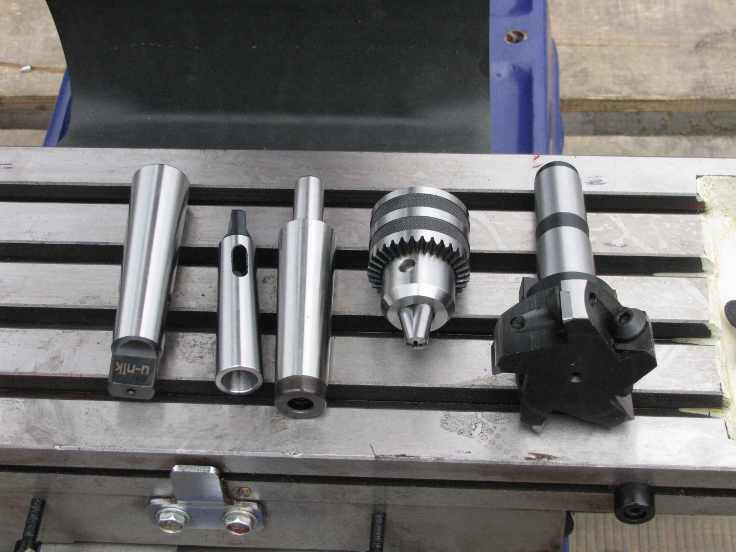

The machine can be used for holes drilling, reaming, milling and broaching up to 45/40 mm in cast iron and threading of bolts up to M12 mm, milling up to 80 mm width as well as notches up to 22 mm. It is also suitable for face milling and cutting. On the milling and drilling machine various accessories can be installed.
Machine characteristics
- HEAVY, STABLE IRON CASTING
- AUTOMATIC FEED
- MASSIVE CROSS TABLE WITH PRECISELY GROUND SURFACE
- GUIDES IN DOVETAIL SHAPE
- SILENT OPERATION THANKS TO GROUND TOOTHED WHEELS
- LEFT AND RIGHT ROTATIONS
- SWIVEL HEAD +/- 90°
- CONTROLLED HEAD HEIGHT
- MILLING: CENTRE FEEDING WITH HAND CHUCK
- DRILLING: CENTRE FEEDING WITH HAND CHUCK
Technical parameters
DRILLING IN STEEL OUTPUT
32 mm
DRILLING IN CAST IRON OUTPUT
40 mm
FACE CUTTER DIAMETER
80 mm
SHANK CUTTER DIAMETER
32 mm
SPINDLE SPEED
50 - 3024 rpm (6/12)
ARBOR HOLDER
MT 4/ MT3
SPINDLE FEED
110 mm (automatic feed)
WORK TABLE DIMENSIONS
730 mm x 210 mm
MAXIMUM SPINDLE DISTANCE FROM TABLE
450 mm
TRAVEL DISTANCE LONGITUDINAL (X)
450 mm
TRAVEL DISTANCE CROSS (Y)
170 mm
SWIVEL HEAD, RIGHT/LEFT
90°
MOTOR POWER
0.85 /1.5 kW
POWER SUPPLY
400 V
WEIGHT
350 kg
