BS-100

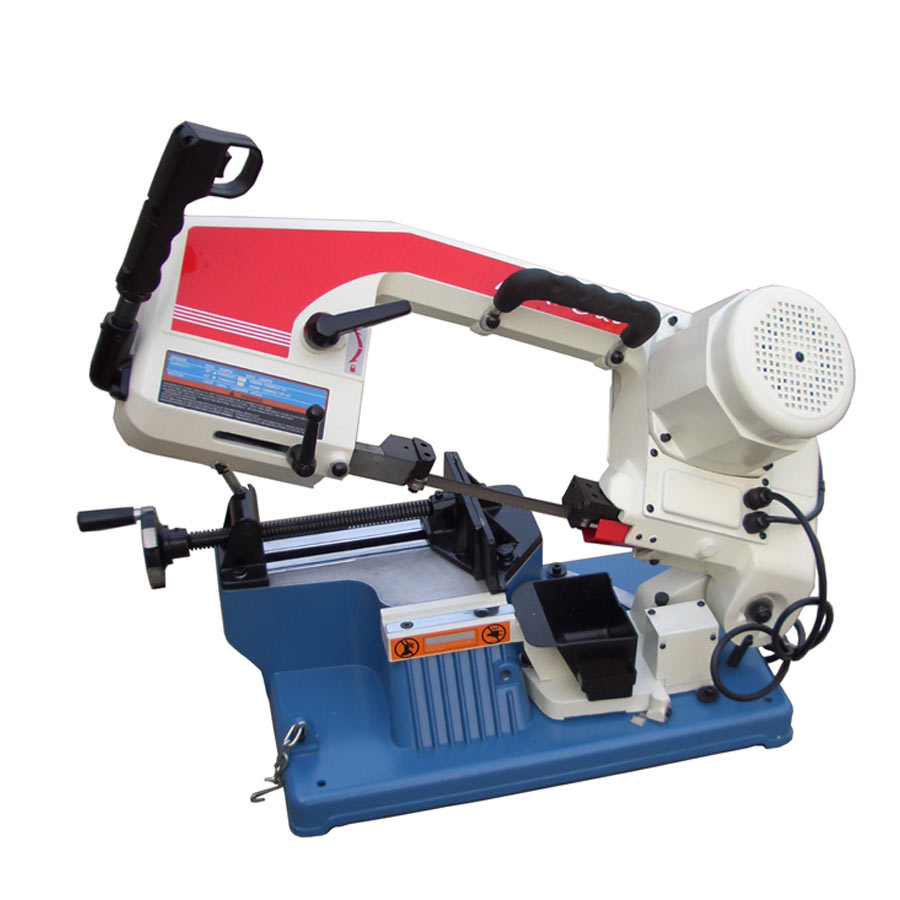

Metal Cutting Band Saw
BS-100
Features
1. Our portable band saw features an aluminum-casting structure, light weight and stability.
2. Our portable band saw has the advantage of stepless speed regulation.
3. Our portable band saw is easy to use.
4. The saw bow of our portable band saw can be rotated from 0° to 45°. It is equipped with block feeder (with fixed sawing length).
Technical specifications
| Model | BS-85 | BS-100 | |
| Capacity | Circular@90° | 85mm(3.3”) | 100mm(4”) |
| Rectangular @90° | 85x105mm(3.3”x4.1”) | 100x150mm(4”x6”) | |
| Circular @45° | 70mm(2.7”) | 60mm(2.4”) | |
| Rectangular @45° | 65x75mm(2.5”x2.9”) | 60x100mm(2.4”x4”) | |
| Blade speed | @60Hz | 40-88MPM | 54MPM |
| @50Hz | 40-88MPM | 45MPM | |
| Blade size | 13x0.65x1325mm | 13x0.65x1470mm | |
| Motor power | 1000W | 375W 1/2HP(3PH), 550W 3/4HP(1PH) | |
| Drive | Gear | Gear | |
| Packing size | 69x31x46cm | 72x37x46cm | |
| N.W./G.W. | 19.4/21.3kg | 26/29kg | |
