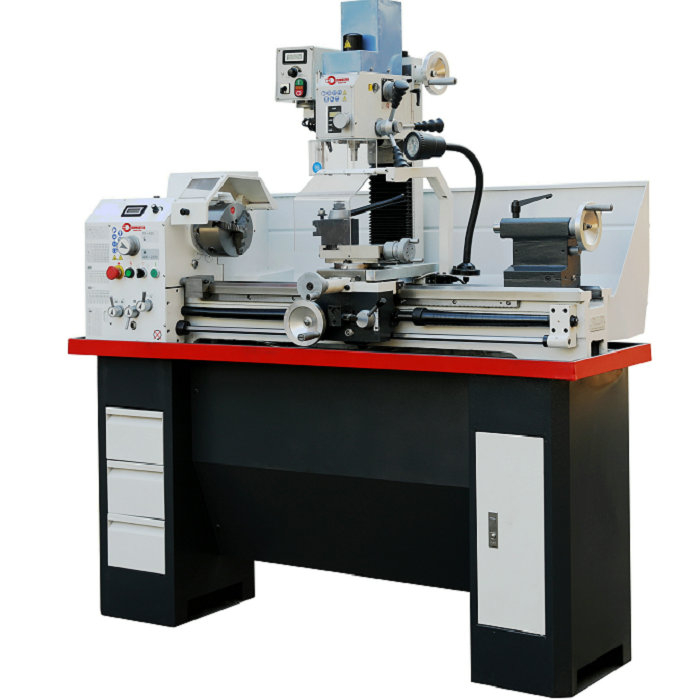

Mutipurpose Combinated Lathe Machine CENETER880GV

Quantity:
  • CENTER880GV


Model No.
Model No.The Center 880 G Vario features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads. The machining centre allows drilling, milling and turning on minimum space, comes with a digital display of drill depth and speed for high comfort and features a large spindle bore.

  • Complete with 38 mm spindle bore to allow processing of large shaft diameters

  • Strongly reinforced machine bed featuring induction-hardened, polished guide

  • Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

  • Change gears for cutting of metric threads are part of the standard accessories

  • Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

  • Main spindle features adjustable tapered roller bearings in P5 quality

  • Mill head with digital display for spindle stroke and speed

  • Mill head tilts to both sides allowing angular boring, milling of bevels etc.

  • Suitable for processing of steel, non-ferrous metals and plastics

  • User-friendly arrangement of control elements on gear head

  • Tailstock features single-lever clamping, adjustable for taper turning

  • Turning lathe



    Distance between centers

    880 mm

    Center height

    160 mm

    Swing over bed

    320 mm

    Spindle bore

    38 mm

    Taper at spindle bore

    DIN 55029, D1-4

    Speed range, stepless

    75 – 435 / 400 – 2250 rpm

    Longitudinal feed

    (15) 0,07 – 1,0 mm/rev.

    Cross feed

    (15) 0,017 – 0,25 mm/rev.

    Metric thread

    (18) 0,2 – 3,5 mm

    Inch thread

    (21) 8 – 56 threads/1“

    Travel of tailstock sleeve

    100 mm

    Taper of tailstock sleeve

    MT 3

    T-slot size at cross slide

    12 mm

    Motor power output S1 100%

    1,5 KW / 230 V

    Motor power input S6 40%

    2,2 kW / 230 V

    Milling attachment



    Drilling capacity max.

    20 mm

    Face mill capacity max.

    63 mm

    End mill capacity max.

    20 mm

    Distance spindle to column

    170 mm

    Spindle speed, stepless

    50 - 2250 rpm

    Spindle taper

    MT 2

    Mill head tiltable

    -90° to +90°

    Height adjustment of mill head

    260 mm

    Motor power output S1 100%

    0,60 kW / 230 V

    Motor power input S6 40%

    0,90 kW / 230 V





    Machine dimension (W x D x H)*

    1660 x 650 x 1090 mm

    Weight approx.

    318 kg

Standard accessories

  • 2-axis digital readout ES-12 V with LCD-display)OPTIONAL)

  • 3-jaw chuck DK11-160 mm / D4

  • Drill chuck 1 - 13 mm / B 16

  • Drill chuck arbor MT 2 / B 16

  • Dead centers

  • Change gears

  • 4-way tool post holder

  • Safety clutch

  • Micrometer longitudinal fence

  • Cross slide with top support

  • Frequency inverter

  • Drawbar M 10

  • Digital spindle stroke indication

  • Digital speed indication

  • Thread dial

  • LED machine light

  • Chuck guard

  • Leadscrew cover

  • Splash guard

  • Tools
