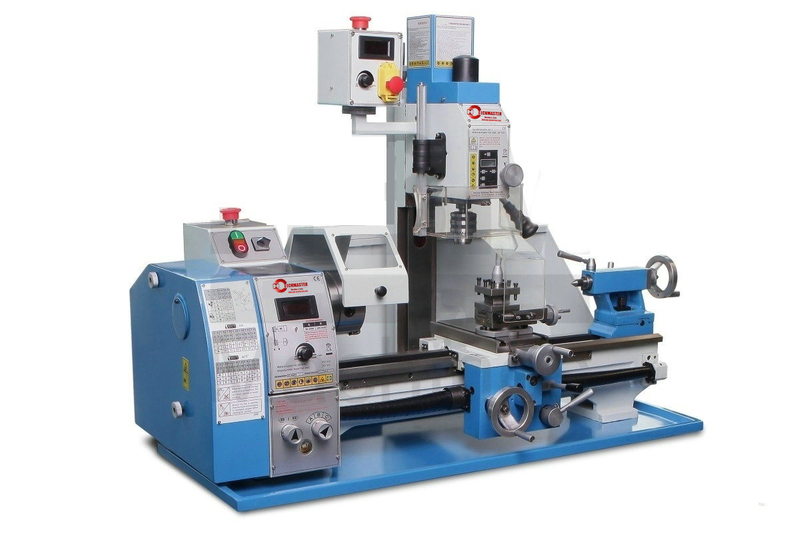

Turning lathe | |
Distance between centres | 550mm |
Swing over bed | 250mm |
Spindle bore taper | MT4 |
Spindle bore | 26mm |
Range of spindle speeds | 50-2000rpm |
Range of longitudinal feeds | 0.08-0.48mm/r |
Range of cross feeds | 0.026-0.156mm/r |
Range of inch threads | 8-56tpi |
Range of metric threads | 0.2-3.5mm |
Top slide travel | 70mm |
Cross slide travel | 115mm |
Tailstock quill travel | 60mm |
Tailstock quill taper | MT2 |
Motor | 900w |
Milling attachment | |
Max. drilling capacity | 16mm |
Height adjustment | 195mm |
Spindle taper | MT2 |
S Spindle stroke | 50mm |
Range of spindle speeds | 50-2250rpm |
Head tilt left and right | ± 90º |
Motor | 500w |
