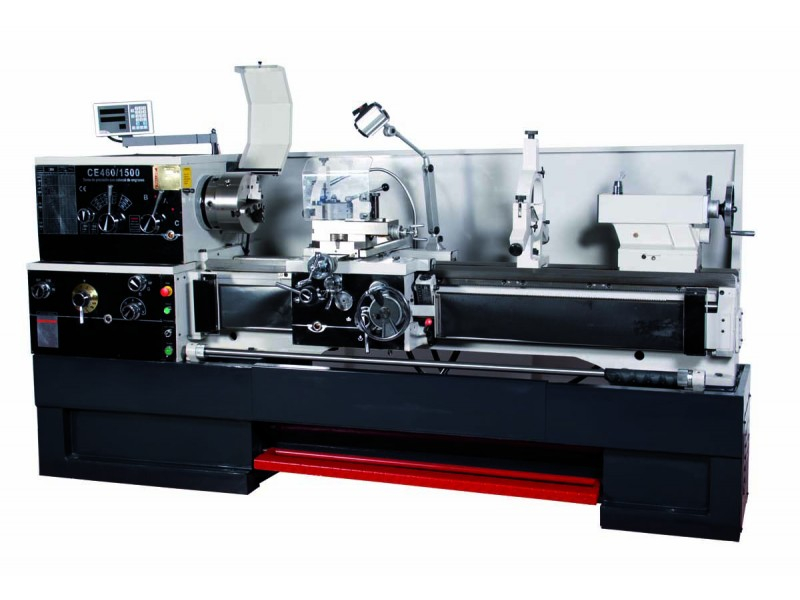

PARALLEL LATHE CE410X1000
Quantity: -
PARALLEL LATHE CE410X1000
PARALLEL LATHE CE410X1000
Distance between centers (mm) 1000 Modular pitch (20) 0,25-10 Diametral pitch (45) 96-31/4 Cross carriage travel (mm) 290 Carriage travel (mm) 135 Max. dimension of tool (mm) 25x25 Diameter tailstock quill (mm) 75 Tailstock spindle travel (mm) 150 Tailstock morse taper MT 4 Power main motor (Kw) 7,5 Power of motor pump (Kw) 0,09 Dimensions (mm) (length x width x height) 2480x1150x1600 Whitworth pitch per inch (61)1,5/8-72 Metric pitch (24) 0,5-20 Swing over bed (mm) 410 Swing over ram (mm) 640 Swing over carriage (mm) 250 Bed width (mm) 340 Length gap 310 Main spindle hole (mm) 80 Spindle nose CAMLOCK Nº8 Main spindle morse taper MT7 Spindle speed range (rpm) 25-1800 Speed number 12 Longitudinal feed (mm/rev) 0,041-2,46 Cross feed (mm/rev) 0,02-1,25 Net weigth (Kg) 2500
PARALLEL LATHE CE410X1000
Distance between centers (mm) 1000 Modular pitch (20) 0,25-10 Diametral pitch (45) 96-31/4 Cross carriage travel (mm) 290 Carriage travel (mm) 135 Max. dimension of tool (mm) 25x25 Diameter tailstock quill (mm) 75 Tailstock spindle travel (mm) 150 Tailstock morse taper MT 4 Power main motor (Kw) 7,5 Power of motor pump (Kw) 0,09 Dimensions (mm) (length x width x height) 2480x1150x1600 Whitworth pitch per inch (61)1,5/8-72 Metric pitch (24) 0,5-20 Swing over bed (mm) 410 Swing over ram (mm) 640 Swing over carriage (mm) 250 Bed width (mm) 340 Length gap 310 Main spindle hole (mm) 80 Spindle nose CAMLOCK Nº8 Main spindle morse taper MT7 Spindle speed range (rpm) 25-1800 Speed number 12 Longitudinal feed (mm/rev) 0,041-2,46 Cross feed (mm/rev) 0,02-1,25 Net weigth (Kg) 2500
