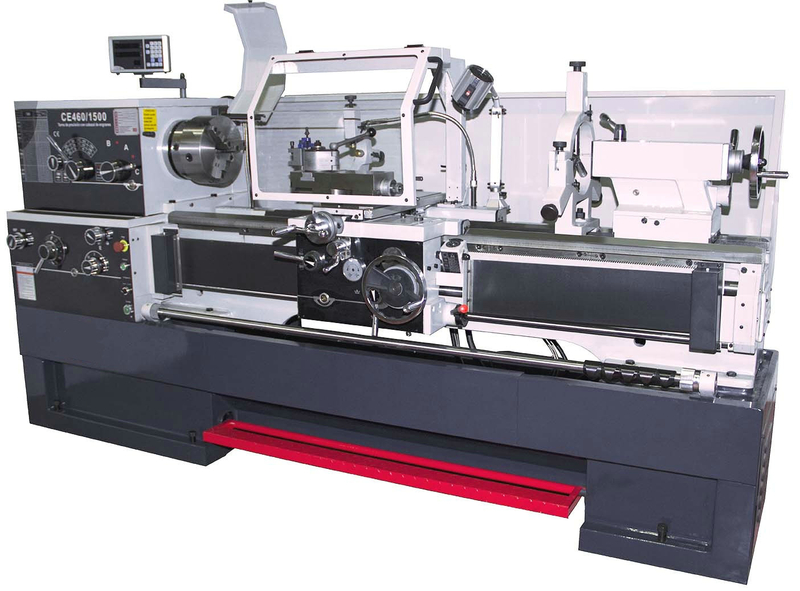

PARALLEL LATHE CE460X1000
| Distance between centers (mm) | 1000 |
| Modular pitch | (20) 0,25-10 |
| Diametral pitch | (45) 96-31/4 |
| Cross carriage travel (mm) | 290 |
| Carriage travel (mm) | 135 |
| Max. dimension of tool (mm) | 25x25 |
| Diameter tailstock quill (mm) | 75 |
| Tailstock spindle travel (mm) | 150 |
| Tailstock morse taper | MT 5 |
| Power main motor (Kw) | 7,5 |
| Power of motor pump (Kw) | 0,09 |
| Dimensions (mm) (length x width x height) | 2480x1150x1600 |
| Whitworth pitch per inch | (61)1,5/8-72 |
| Metric pitch | (24) 0,5-20 |
| Swing over bed (mm) | 460 |
| Swing over ram (mm) | 700 |
| Swing over carriage (mm) | 300 |
| Bed width (mm) | 340 |
| Length gap | 310 |
| Main spindle hole (mm) | 80 |
| Main spindle morse taper | MT7 |
| Spindle speed range (rpm) | 25-1800 |
| Speed number | 12 |
| Longitudinal feed (mm/rev) | 0,041-2,46 |
| Cross feed (mm/rev) | 0,02-1,25 |
| Net weigth (Kg) | 2700 |
