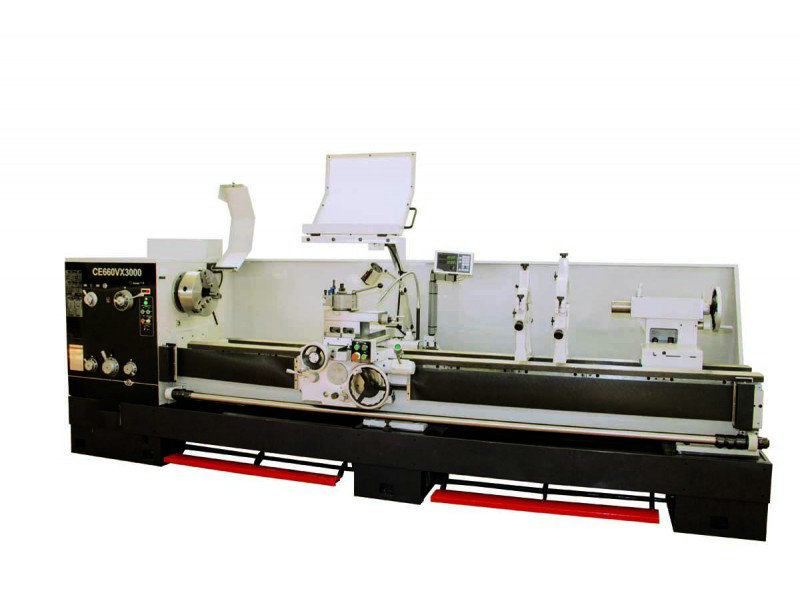

PARALLEL LATHE CE660V X 3000
Distance between centers (mm) | 3000 |
Diametral pitch | 56-4 |
Cross carriage travel (mm) | 310 |
Carriage travel (mm) | 145 |
Max. dimension of tool (mm) | 25x25 |
Diameter tailstock quill (mm) | 75 |
Tailstock spindle travel (mm) | 150 |
Tailstock morse taper | MT 5 |
Power main motor (Kw) | 7,5(10Hp) |
Power of motor pump (Kw) | 0,09 |
Dimensions (mm) (length x width x height) | 4500x1100x1450 |
Modular pitch | 0,5-7 |
Whitworth pitch per inch | 28-2 |
Swing over bed (mm) | 660 |
Swing over ram (mm) | 870 |
Swing over carriage (mm) | 420 |
Length gap | 240 |
Main spindle hole (mm) | 105 |
Spindle speed range (rpm) | 36-1600 |
Speed number | 3 variables (23-150/150-433/433-1300) |
Longitudinal feed (mm/rev) | 0,028-6,43 |
Cross feed (mm/rev) | 0,012-2,73 |
Metric pitch | 1-14mm/22 |
Net weigth (Kg) | 4500 |
