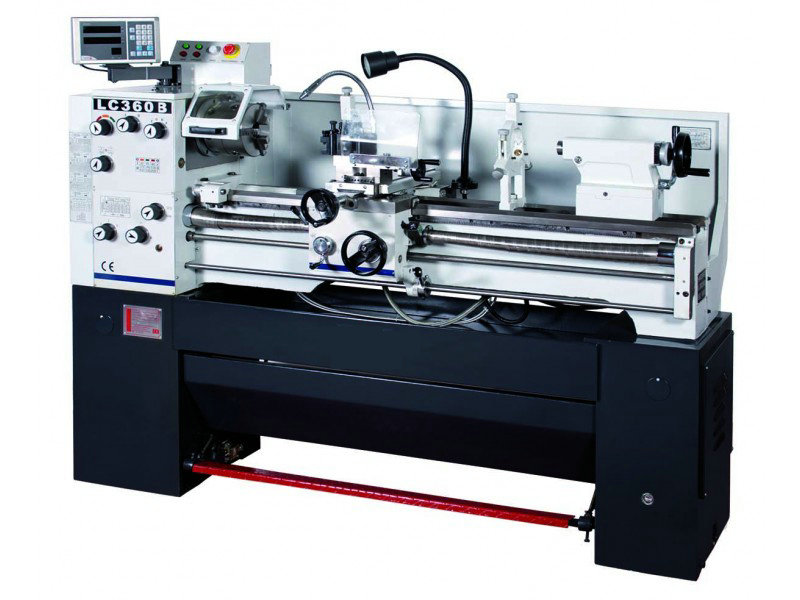

PARALLEL LATHE LC360X1000
| Distance between centers (mm) | 1000 |
| Modular pitch | (12) 0,25-3,5 |
| Diametral pitch | (30) 8-14 |
| Main spindle pitch (mm) | Ã - 25x 4 DP |
| Cross carriage travel (mm) | 200 |
| Carriage travel (mm) | 95 |
| Max. dimension of tool (mm) | 16x16 |
| Diameter tailstock quill (mm) | 40 |
| Tailstock spindle travel (mm) | 100 |
| Tailstock morse taper | MT 3 |
| Power main motor (Kw) | 2,2 |
| Power of motor pump (Kw) | 0,075 |
| Dimensions (mm) (length x width x height) | 1850x800x1280 |
| Whitworth pitch per inch | (33) 72-4,3/4 |
| Metric pitch | (27) 0,25-9 |
| Swing over bed (mm) | 360 |
| Swing over ram (mm) | 500 |
| Swing over carriage (mm) | 210 |
| Bed width (mm) | 225 |
| Length gap | 210 |
| Main spindle hole (mm) | 38 |
| Spindle nose | CAMLOCK Nº5 |
| Main spindle morse taper | MT5 |
| Spindle speed range (rpm) | 60-2000 |
| Speed number | 9 |
| Longitudinal feed (mm/rev) | (9) 0,030-0,423 |
| Cross feed (mm/rev) | (9) 0,0012-0,0144 |
| Net weigth (Kg) | 750 |
