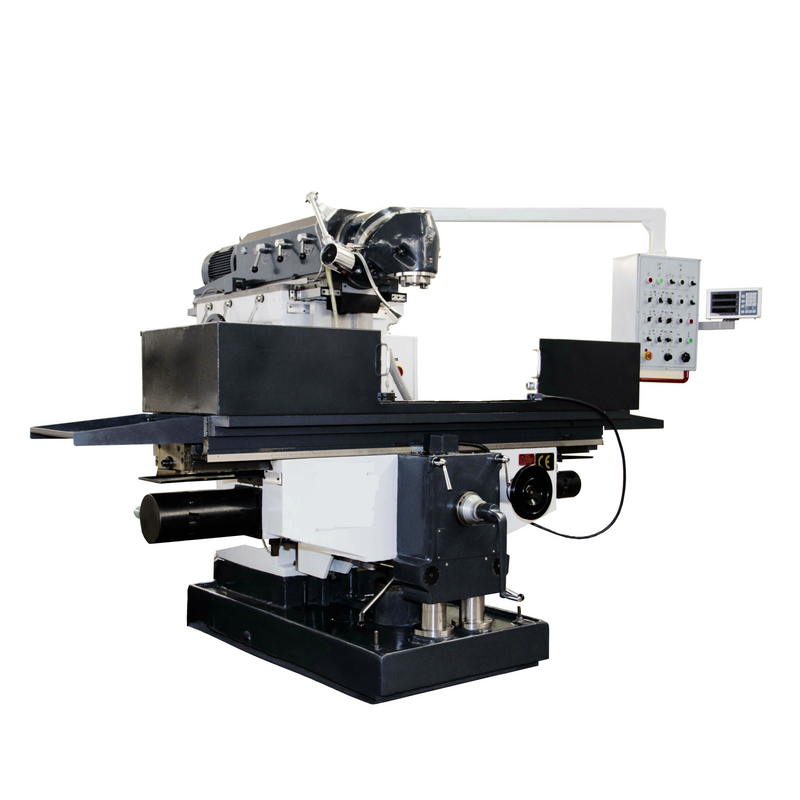

POWERED RAM MILLING MACHINE FCM 2000
Ram headstock speed range (r.p.m) | 30-2050 |
Longitudinal and cross rapid movement (mm/min) | 2200 |
Taper of ram headstock | ISO50 |
Distance between the front spindle and the ram slide(mm) | 760 |
Distance headstock/ table (mm) | 530 |
Ram movement | MOTORIZADO |
Work feed ram headstock | 5-500 |
Rapid vertical movement (mm/min) | 1100 |
Vertical feed (mm/min) | 10-1000 |
Worktable surface (mm) | 2000x600 |
T-slot (mm) | 5x18 |
Max. weight over table (Kg) | 1800 |
Longitudinal travel (mm) | 1500 |
Cross travel (mm) | 700 |
Ram travel (mm) | 500 |
Table feed | variador |
Longitudinal feed (mm/min) | 10-1000 |
Number of ram headstock speeds | 27 |
Dimensions (mm) (length - width - high) | 2986x2150x1950 |
Net weight (Kg) | 3700 |
Ram headstock motor (Kw) | 11 |
Cross feed (mm/min) | 5-500 |
