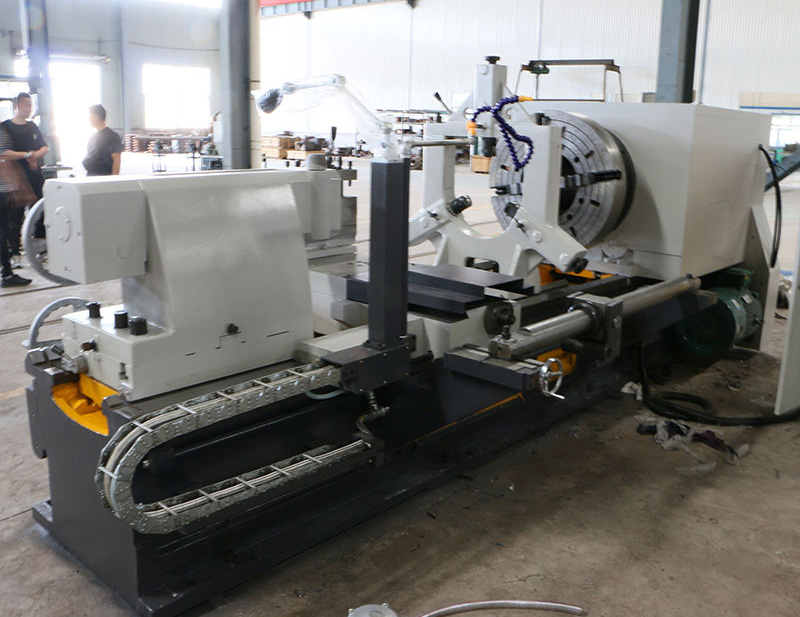

Pipe threading machine Q1322
Quantity: -
Q1322
Description
Pipe threading machine Q1322 is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Specification
Specification Unit Q1322 Max dia.swing over bed mm 670 Max dia.swing over cross slide mm 380 Max.length of work-piece mm 1500 Width of bed mm 550 Spindle bore mm 225 Power of spindle motor Kw 11 Spindle speed r/min 24-300 FWD.12 steps Z axis feed grade/range mm/r 26/0.07-1.33 X axis feed grade/range mm/r 22/0.02-0.45 Carriage rapid traverse speed mm/min 4000 Cross slide rapid traverse speed mm/min 2300 Metric thread grade/range mm 2024/1/14 Inch thread grade/range T.P.I 1940/2/28 Module thread grade/range mm 0.5-7.5 DP thread grade/range D.P. 28-2 Traverse of cross slide mm 320 Max. Traverse of turret mm 200 Tailstock quill travel mm 250 Tailstock quill Dia./taper mm Φ100/（MT5#） Chuck 4-jaw manual Overall dimensions(L*W*H) mm 3657×1360×1480 Net weight T 4.8 Main Features
Big spindle bore and double chuck allow clamp and process big diameter pipes.
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Equipped with a taper guide bar device this enables the machine to process taper threads.
