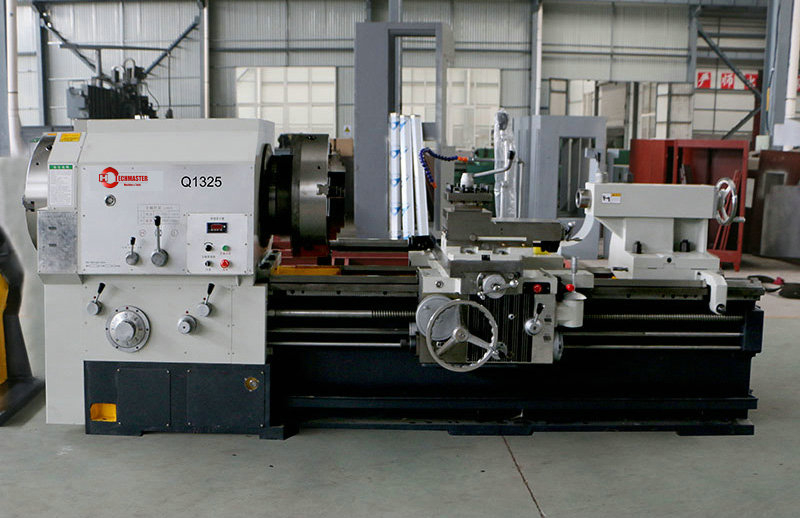

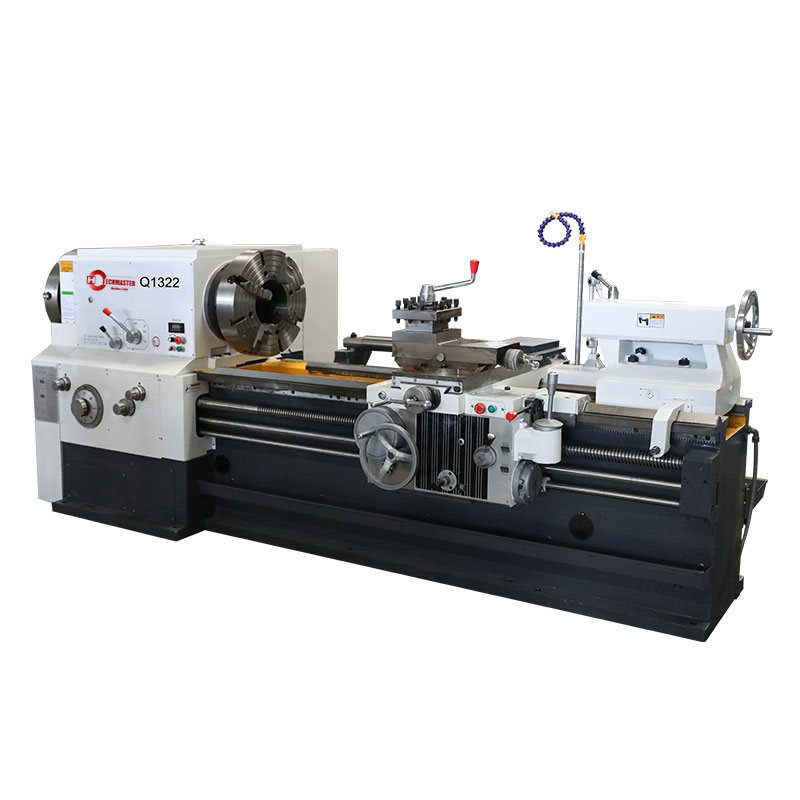

Pipe threading machine Q1325 is widely used in industries including petroleum exploiting ,coal and minerals mining,chemical piping and geological prospecting,it is high-efficiency equipment in processing and repairing drilling pipe,drilling rod,thread coupling and so on.
Specification | Unit | Q1325 |
Max dia.swing over bed | mm | 800 |
Max dia.swing over cross slide | mm | 480 |
Max.length of work-piece | mm | 1500 |
Width of bed | mm | 550 |
Spindle bore | mm | 225 |
Power of spindle motor | Kw | 11 |
Spindle speed | r/min | 12-642 VF2 steps |
Z axis feed grade/range | mm/r | 26/0.07-1.33 |
X axis feed grade/range | mm/r | 22/0.02-0.45 |
Carriage rapid traverse speed | mm/min | 4000 |
Cross slide rapid traverse speed | mm/min | 2300 |
Metric thread grade/range | mm | 52/1-224 |
Inch thread grade/range | T.P.I | 1940/2/28 |
Module thread grade/range | mm | 53/0.5-120 |
DP thread grade/range | D.P. | 2024/1/28 |
Traverse of cross slide | mm | 320 |
Max. Traverse of turret | mm | 200 |
Tailstock quill travel | mm | 250 |
Tailstock quill Dia./taper | mm | Φ100/(MT5#) |
Chuck | 4-jaw manual | |
Overall dimensions(L*W*H) | mm | 3657x1757x1740 |
Net weight | T | 3.8 |
Big spindle bore and double chuck allow clamp and process big diameter pipes.
Integral machine bed adopts high strength iron to realize high rigidity and precision.
Ultrasonic frequency quenched guide-ways are hard enough for good wear-resistance.
Equipped with a taper guide bar device this enables the machine to process taper threads
