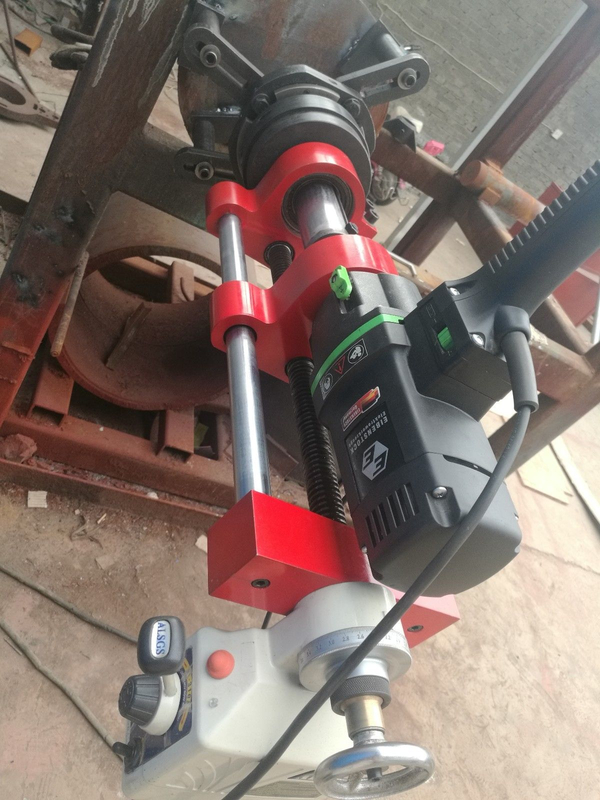

YK60 portable Line Boring Machine
Machine Performance:
1. Eibenstock 1.8Kw powerful electric motor, lightweight,infinite speed variation.
2. The main body of machine use aviation aluminum alloy, high strength,light weight.
3. Control unit is simple,easy to maintain and operate.
4. Spherical bearing mounting system allows quick setup and ensure the concentricity of the boring bar and the shaft of electric motor,avoiding vibration during machining.Bearings can be finely calibrated,fast and accurate.
5. Universal bearing mount assembly can be adjusted according to the mounting position.
6. One machine body can match boring bars of various diameters.
7. Reasonable gear reducer avoid the wear of worm gear mechanism.
8. Reducer equipped with torque limiting protection.Electric motor equipped with torque overload protection and overheat protection
SPECIFICATIONS:
| YK60 portable boring machine specification(standard)<o:p> | ||
| Name<o:p> | Parameter<o:p> | Remarks<o:p> |
| Model<o:p> | YK600<o:p> |
|
| Boring bar diameter<o:p> | 60mm×1500（standard）<o:p> | Customizable<o:p> |
| Boring diameter<o:p> | 65-400mm<o:p> |
|
| Boring stroke<o:p> | 350mm<o:p> |
|
| Power<o:p> | Eibenstock 1.8Kw, Germany |
|
| Boring bar speed<o:p> | 470rpm<o:p> | Variable speed<o:p> |
| Feed method<o:p> | Forward,Reverse,Manual<o:p> |
|
| Feed speed<o:p> | variable speed<o:p> |
|

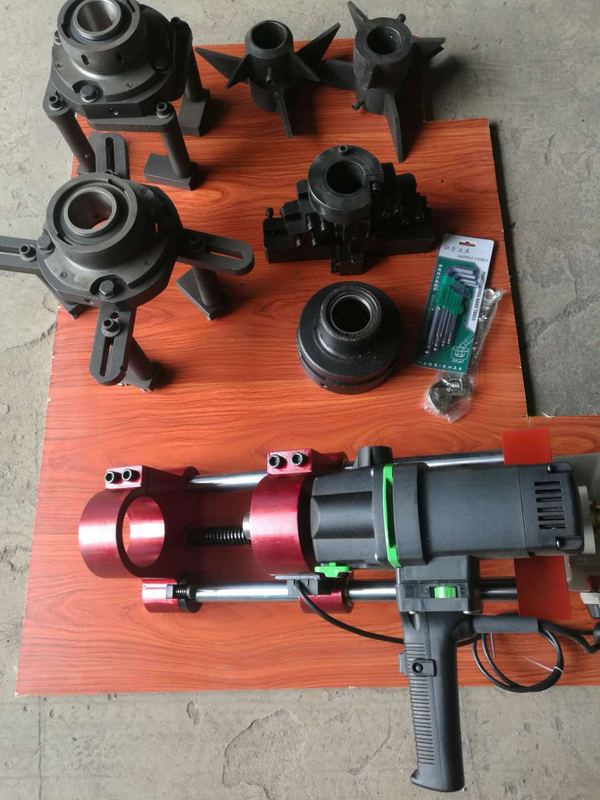

| YK60 Standard configuration list<o:p> | ||
| Name<o:p> | Parameter<o:p> | Remarks<o:p> |
| 1<o:p> | Boring bar 60mm×1500<o:p> | 1<o:p> |
| 2<o:p> | Mainbody (include electric motor)<o:p> | 1<o:p> |
| 3<o:p> | Set-up cones<o:p> | 4<o:p> |
| 4<o:p> | Bearing mount assembly<o:p> | 2<o:p> |
| 5<o:p> | Tool holder<o:p> | 3<o:p> |
| 6<o:p> | locking sleeve | 1<o:p> |
| 7<o:p> | Tools<o:p> | 3<o:p> |
| 8<o:p> | Dial indicator（Magnetic seat）<o:p> | 1<o:p> |
| 9<o:p> | Spare bolts<o:p> | 1<o:p> |
| 10<o:p> | Wrench tool<o:p> | 1<o:p> |
| 11<o:p> | Manual<o:p> | 1<o:p> |
| Optional Boring bar and boring range(boring bar length customizable)<o:p> | ||
| Name<o:p> | boring bar diameter<o:p> | boring diameter |
| Boring bar diameter(40)<o:p> | 40mm×1500mm<o:p> | 45mm-250mm |
| Boring diameter（50）<o:p> | 50mm-1500mm<o:p> | 55mm-250mm |
More Products Option
| Jierui Machine Portable Boring Machines | ||||||
| Item | Boring bar Diameter(MM) | Boring Diameter(mm) | Strok(mm) | Power | Feed Speed | |
| JRT40 | 40*1500(customizable) | 45*200 | 390 | 1.5kw | 0-100(mm/min) | |
| JRT50 | 50*1500(customizable) | 55*250 | 390 | 1.5kw | 0-100(mm/min) | |
| JRT60 | <o:p> 60*2000(customizable) | 65*700 | | 2.2kw | 0-0.6mm/r | |
| JRT90 | 90*3000(customizable) | 95-900 | | Hydraulic/Servomotor 3KW | 0-0.6mm/r | |
| JRT110 | 110*3500(customizable) | 180-1000 | | Hydraulic motor | 0-0.6mm/r | |
| JRT150 | 150*3500(customizable) | 270-1800 | | Hydraulic motor | 0-0.6mm/r | |
| BB50 | 50*1500 (customizable) | 55-350 | 400 | 2.2Kw electric moto | 0-0.5mm/r | |
| YK60 | 60*1500(customizable) | 65-400 | 350 | eibenstock 1.8KwGermany | | |
|
| | | | | | |
| Optional Facer and facing range<o:p> | ||
| Name<o:p> | boring range<o:p> |
|
| 40 Facer（Match 40 boring bar）<o:p> | 50mm-250mm<o:p> |
|
| 50 Facer（Match 50 boring bar）<o:p> | 60mm-350mm<o:p> |
|
| 60-1 Facer（Match 60 boring bar）<o:p> | 64mm-305mm<o:p> |
|
| 60-2 Facer（Match 60 boring bar）<o:p> | 64mm-480mm<o:p> |
|
| 60-3 Facer（Match 60 boring bar）<o:p> | 64mm-609mm<o:p> |
|
