Quality Machine Tools
DS300
These universal bench grinding machine is designed for professional use.
The induction motor features top quality ball bearings to eliminate noise and maintenance.
Quality grinding wheels ensure optimal results when sharpening and deburring tools.
Rotor features ball bearings to ensure smooth running and long life span
High performance drive motor ensures powerful torque
Protective cover closed on sides for more efficient spark protection
Complete with dust port (Ø 35 mm) to allow for connection to dust collector
Solid design and top of the range accessories make this model qualify for industrial use
Optionally available dust collector allows efficient elimination of dust
Comes complete with solid, adjustable workpiece support to achieve top results
• Heavy duty type of industrial grinder
• Solid adjustable workpiece support
• New design electrical system with power switch
• Emergency stop switch
• High quality construction, running without vibration
• LED light as optional for professional work
Permanent magnet motor;
Big torque force;
low noise
These universal bench grinding machine is designed for professional use. The induction motor features top quality ball bearings to eliminate noise and maintenance. Quality grinding wheels ensure optimal results when sharpening and deburring tools.

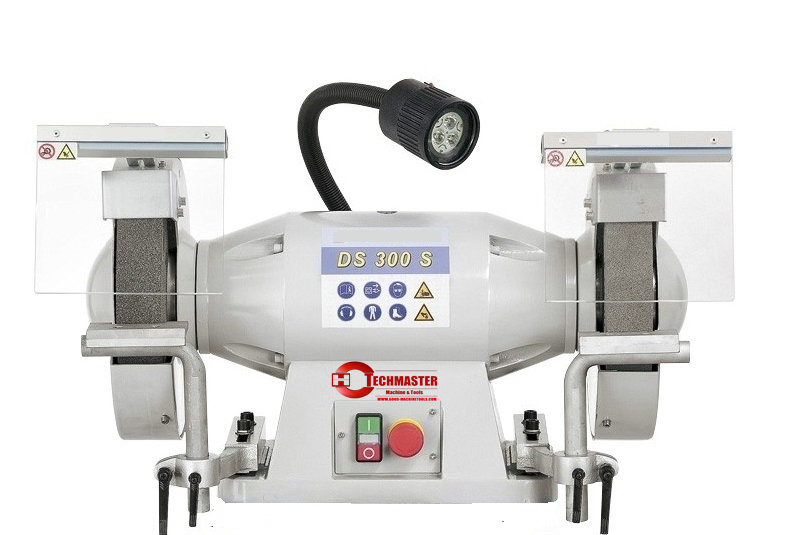

TOP INDUSTRIAL BENCH GRINDER DS300S
Grinding wheel Ø x W | 300 x 50 mm |
Grinding wheel bore | 75 mm |
Grinding wheel grit | Grit 36 / Grit 80 |
Speed | 1450 rpm |
Dust extraction outlet | 2 x 35 mm |
Motor power output S1 100% | 2,2 kW |
Motor power input S6 40% | 3,0 kW |
Voltage | 400 V |
Width | 700 mm |
Depth | 500 mm |
Height | 460 mm |
Weight approx. | 84 kg |
