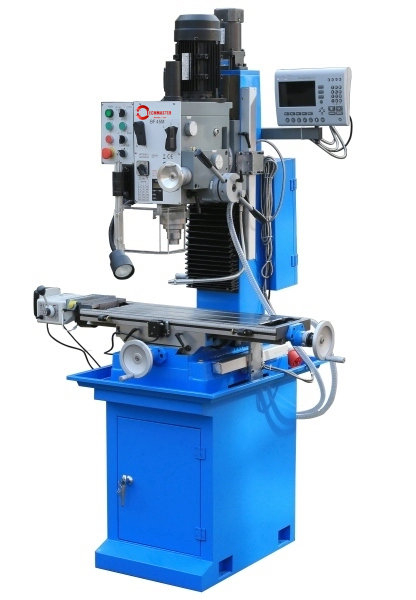

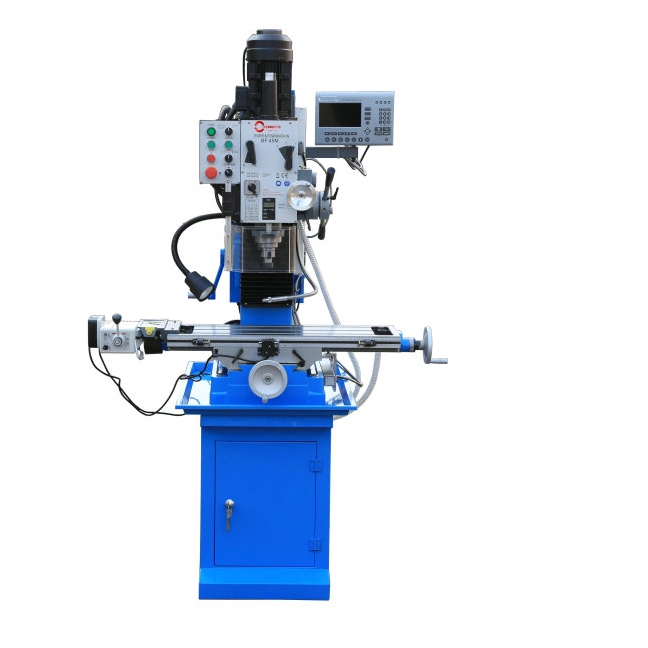

Power Feed Bench Drilling&Milling Machine (BF45M)
Quantity: -
BF45M
Product Description
BF45M
FEATURES:
High-precision P5 (ABEC-5 equivalent) spindle bearings

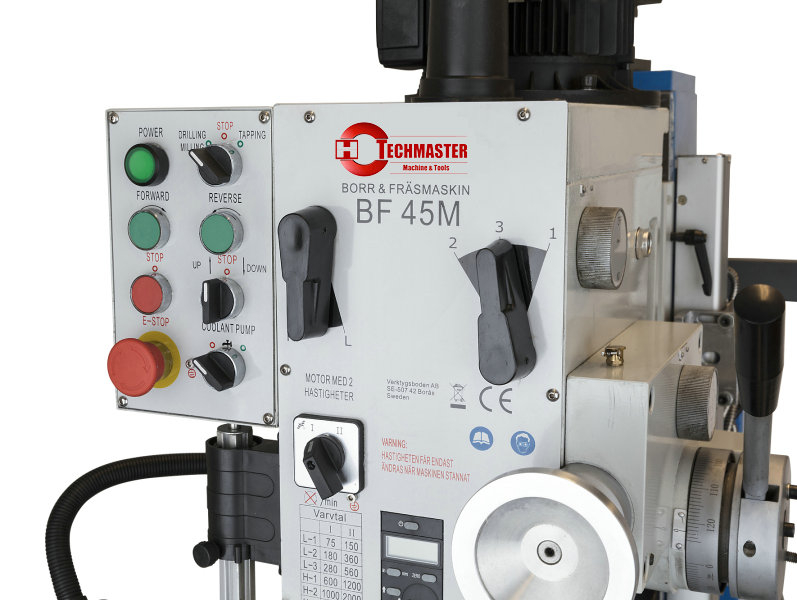

Spindle speeds change with convenient gear-head levers instead of V-belts
Reversible spindle direction
Dovetail ways
Head tilts up to 90° left or right and swivels up to 360° around the column

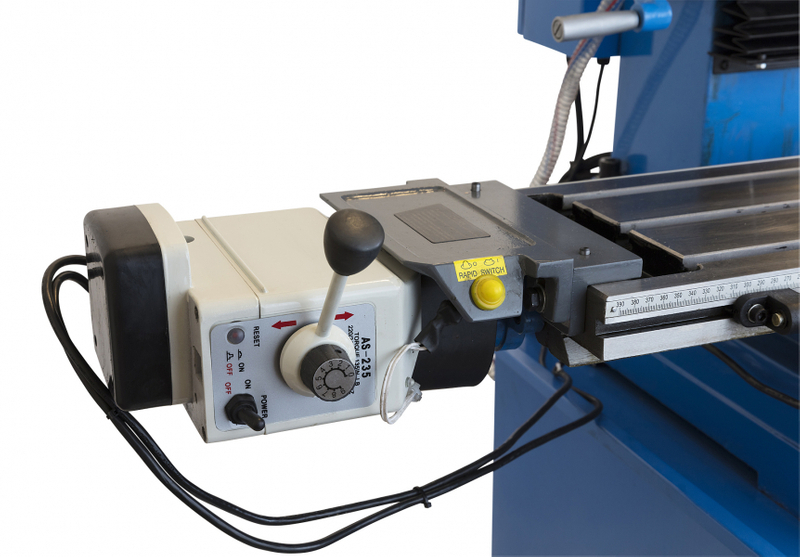

Longitudinal variable speed power feed
Table is coolant system ready
Heavy-duty cast-iron construction
Fine downfeed control and adjustable depth stop
Made in ISO 9001 factory
STANDARD ACCESSORIES:
Spindle adapter R-8 x MT#3
Spindle adapter MT#3 x MT#2
Drill chuck arbor and 1-13mm drill chuck
T-slot bolts with nuts
Drift key for tool removal
Service wrenches
Hex wrench set
Bottle for oil
Tool box
OPTIONTAL ACCESSORIES:

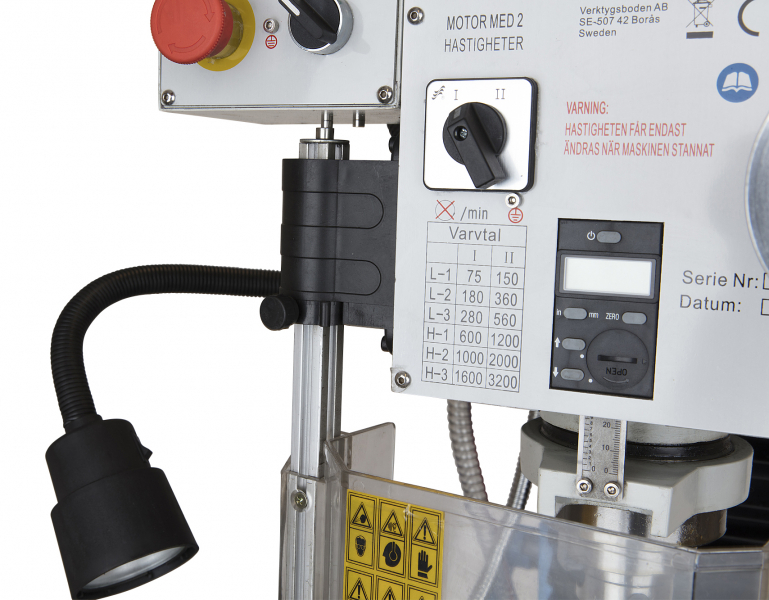

Halogen Lamp 24V/ 50W
Cabinet Stand with Chip Tray
Tapping Control Electrical System
Power Table Feed for Travel X or Y
3-Axis Digital Readout System
Spindle Protection Guard with Switch on/off
Digital Scale Unit Readout for Spindle Feeding Depth
Double Speed Motor for big Spindle Speed Range 75- 3200 rpm
Coolant System with coolant tank in machine foot integrated
Technical DataModel BF45M Drilling Capacity in Iron 45 mm Drilling Capacity in Steel 32 mm End Milling Capacity in Steel 32 mm Face Milling Capacity in Steel 80 mm Distance Spindle to Column 270 mm Max. Dist. Spindle to Work Table 460 mm Spindle Taper MT4 or ISO30 Spindle Speed 75 - 1600 rpm (6) Spindle Travel 120 mm Head tilt left and right ±90° Column Diameter 115 mm Work Table Size 800 x 240 mm Work Table Travel X 560 mm Work Table Travel Y 190 mm T- Slot Size x pcs 14 mmx 3 Motor Power 1.5 Kw, 400V/50 Hz Net Weight 350 Kg Packing Size 850x760x1150mm 20'ft Container 42 pcs
