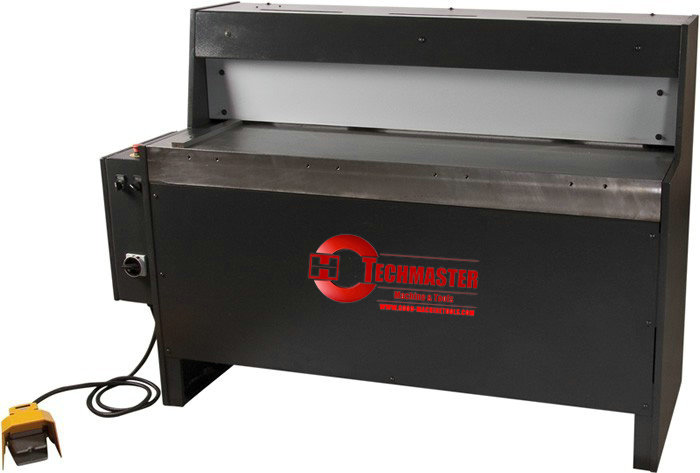

Q11-4X1250

Quantity:
Inquire Add to Basket

Product Description

1. Metal Electric Shearing Machinery with Bench angle-stop
2. Has safty nets at rear of the machine.
3.24V pedal switch of electric shearing machine is safe and easy to operate.
4. Our electric shearing machine features high precision, high efficiency and stability.
5. The smaller shearing angle ensures the shearing precision of the workpiece.
6. Standard series electric shearing machine is equipped with a manual blocking device and counter readout device which can achieve accurate adjustment.

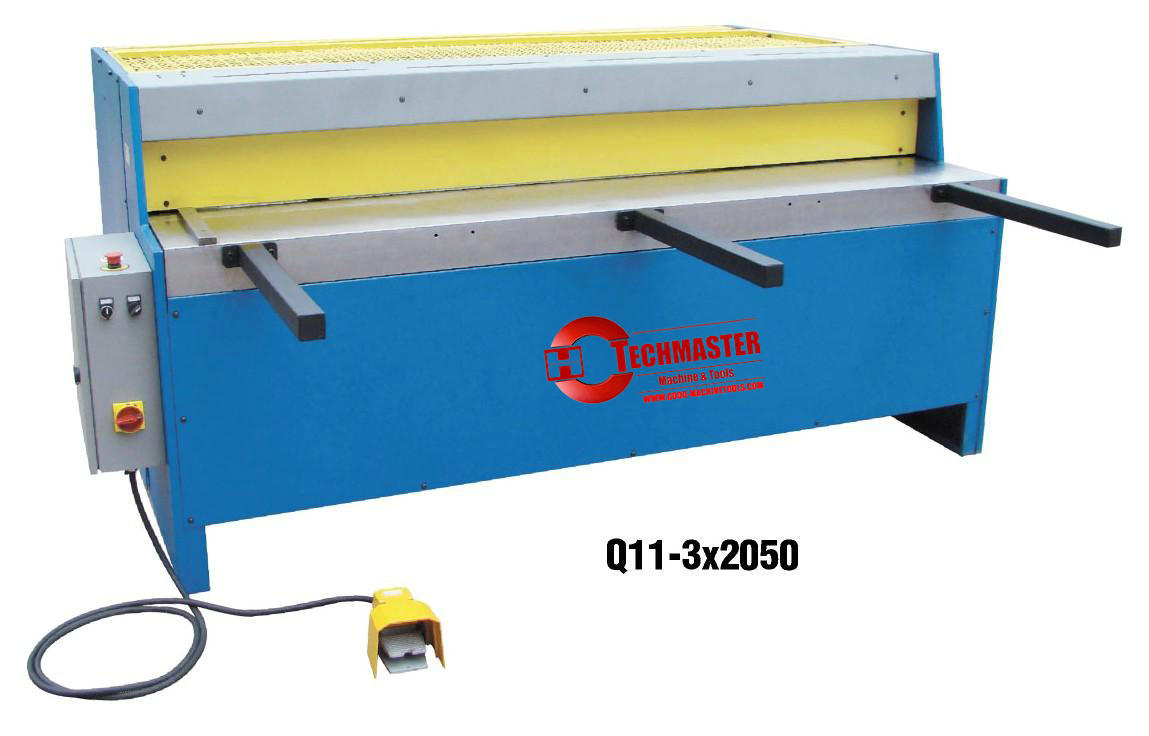

Model Q11-3X1250 Q11-3x2050 Q11-4X1250 Q11-2X2050
Max.shearing thickness(mm) 3.0 3.0 4.0 2.0
Max.shearing width(mm) 1250 2050 1250 2050
Shearing angle 2° 2° 2.4° 2°
No.of stroke(per minute) 30 30 30 30
Motor power(kw) 3 4 4 3
Back gauge(mm) 630 630 630 630
Packing size(cm) 184X103X135 266x116x147 187X116X147 266X116X147
N.W./G.W.(kg) 980/1140 1520/1740 1200/1400 1360/1580
