Q1221

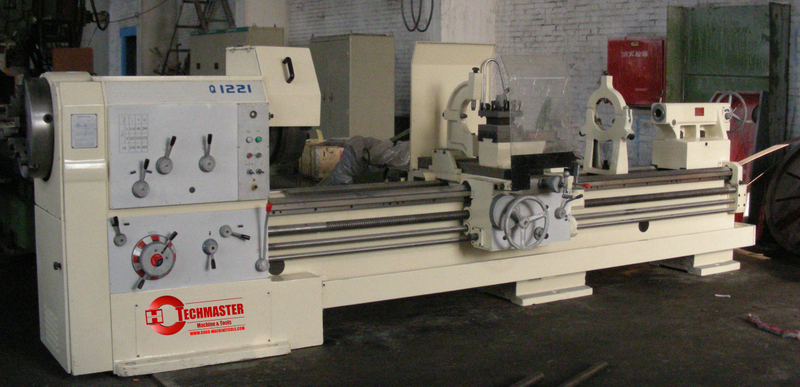

Quantity: For Q1221 pipe threading lathe, it can machine many kinds pipe threads, also can machine the taper threads with the taper attachment and the support.
Features of Structure:
1.The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.
2.The spindle applies the double-chuck structure.
Model Q1221 Max. swing over bed 840mm Max. outer diameter of pipe 210mm Max. swing over carriage 560mm Max. length of work piece 1500/3000/4000/5000/6000mm Max. turning length 1350/2850/3850/4850/5850mm Diameter of spindle through hole 210 Taper of spindle bore 225 Type of spindle nose C type flange connect Range of spindle speed 12 steps (45~572r/min) Morse taper of center sleeve MT6 Kinds, range of longitudinal feed 32 kinds 0.1-1.5mm/r Kind, range of transverse feed 32 kinds, 1/2 of longitudinal feed Pitch of leadscrew 12 Kinds, range of metrical thread 22 kinds 1-15mm Kinds, range of inch-system thread 28kinds 15-1 t.p.i Kinds, range of modular thread 21 kinds 0.5-7.5um Kinds, range of pitch thread 20 kinds 28-2 D.P Diameter of tailstock sleeve 100mm Morse taper of sleeve MT6 Max. travel of sleeve 300mm Max. travel of top slide 240mm Max. travel of cross slide 500mm Double-speed motor power 9/11kw Double-speed motor speed 1000/1500r/min Rapid-travel motor power 1.1kw Rapid-travel motor speed 1350r/min Cooling pump power 0.125kw Cooling motor flow 22L/min
For Q1221 pipe threading lathe, it can machine many kinds pipe threads, also can machine the taper threads with the taper attachment and the support.
Features of Structure:
1.The integral bed ensuring the rigidity of the lathe and the guide-ways are medium-frequency hardened to ensure the long working life.
2.The spindle applies the double-chuck structure.
Model Q1221 Max. swing over bed 840mm Max. outer diameter of pipe 210mm Max. swing over carriage 560mm Max. length of work piece 1500/3000/4000/5000/6000mm Max. turning length 1350/2850/3850/4850/5850mm Diameter of spindle through hole 210 Taper of spindle bore 225 Type of spindle nose C type flange connect Range of spindle speed 12 steps (45~572r/min) Morse taper of center sleeve MT6 Kinds, range of longitudinal feed 32 kinds 0.1-1.5mm/r Kind, range of transverse feed 32 kinds, 1/2 of longitudinal feed Pitch of leadscrew 12 Kinds, range of metrical thread 22 kinds 1-15mm Kinds, range of inch-system thread 28kinds 15-1 t.p.i Kinds, range of modular thread 21 kinds 0.5-7.5um Kinds, range of pitch thread 20 kinds 28-2 D.P Diameter of tailstock sleeve 100mm Morse taper of sleeve MT6 Max. travel of sleeve 300mm Max. travel of top slide 240mm Max. travel of cross slide 500mm Double-speed motor power 9/11kw Double-speed motor speed 1000/1500r/min Rapid-travel motor power 1.1kw Rapid-travel motor speed 1350r/min Cooling pump power 0.125kw Cooling motor flow 22L/min
