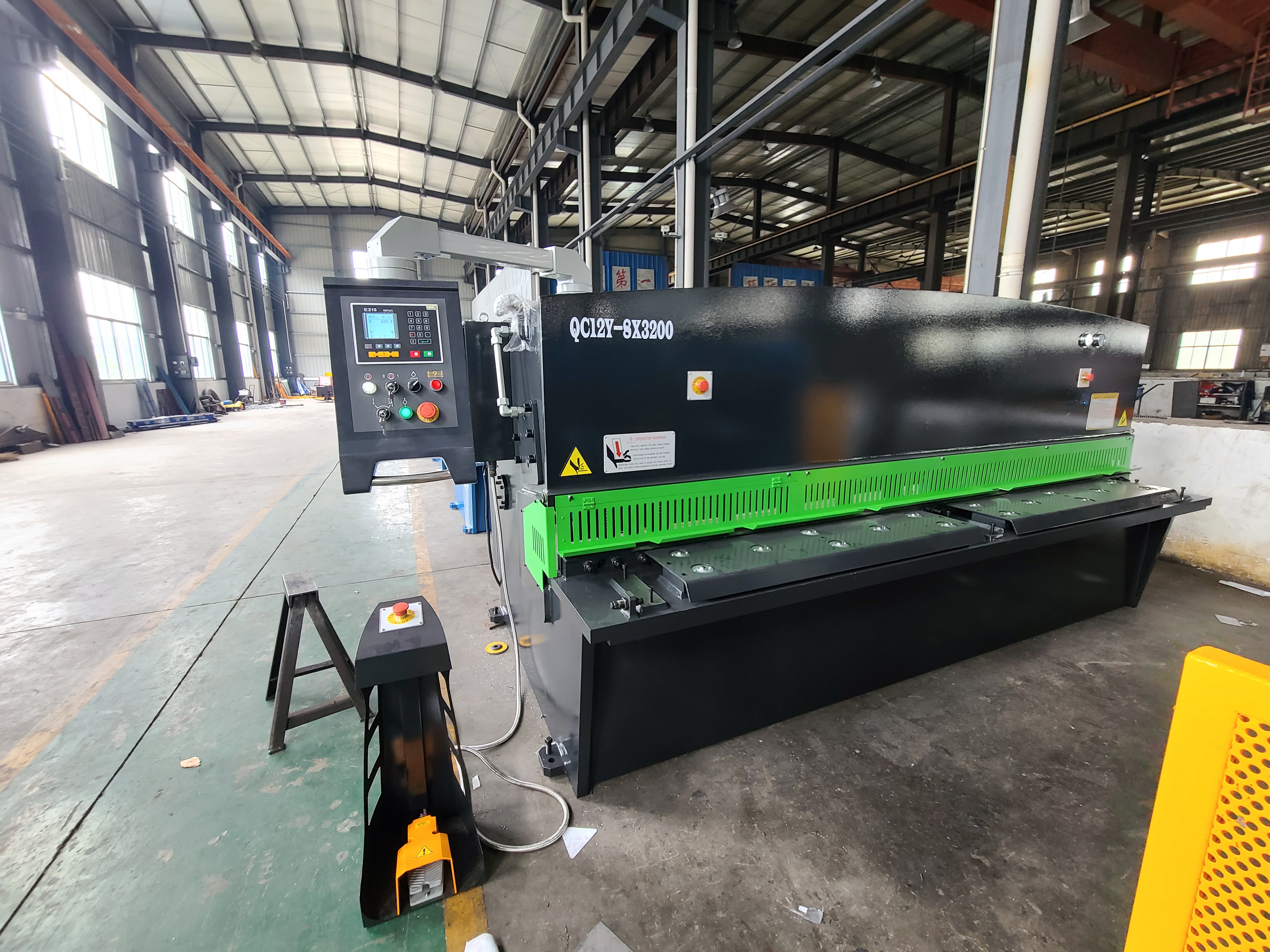

QC12Y 8x3200 SWING BEAM GUILLONTINE

Quantity:
  • qc12y-8x3200

Model Cutting Thickness (mm) Working Table Length (mm) Shearing Angle Number Strokes
min-1
Backgauge Range (mm) Throat Depth (mm) Motor Power (kw) Weight (Kgs)
4×2500 4 2500 1°30′ > / = 22 20-600 85 5.5 3000
4×3200 4 3200 1°30′ > / = 18 20-600 85 5.5 5000
6×2500 6 2500 1°30′ > / = 16 20-600 145 7.5 5200
6×3200 6 3200 1°30′ > / = 12 20-600 145 7.5 6800
6×4000 6 4000 1°30′ > / = 10 20-800 145 7.5 8300
8×2500 8 2500 1°30′ > / = 12 20-600 145 11 6200
8×3200 8 3200 1°30′ > / = 10 20-600 145 11 7800
8×4000 8 4000 1°30′ > / = 10 20-600 145 11 9600
12×2500 12 2500 > / = 10 20-800 300 18.5 9200
12×3200 12 3200 > / = 9 20-800 300 18.5 10500
12×4000 12 4000 > / = 8 20-800 300 18.5 13300
16×2500 16 2500 > / = 9 20-800 315 22 9600
16×3200 16 3200 > / = 8 20-800 320 22 12600
16×4000 16 4000 > / = 7 20-1000 320 30 16500



 Features of Plate Shear:

■ Totally European design, streamlined looking,Monoblock,The frame of this machine tool is welded construction with steel plate, and stress is eliminated by vibration. As a result, this forging machine features high strength, stable performance, easy operation and convenient maintenance.

■ As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed.

■ Hydraulic drive, swing beam, return of knife beam is smooth and prompt by accumulator or nitrogen cylinder

■ Stepless adjusting is available for the stroke of knife beam to promote the production on plate shearing

■ The position of low blade is adjustable, thus ensuring the equilibrium of the gap between blades after regrinding

■ It is easy and quick to adjust the gap between blades. The value of the gap is indicated on a dial.

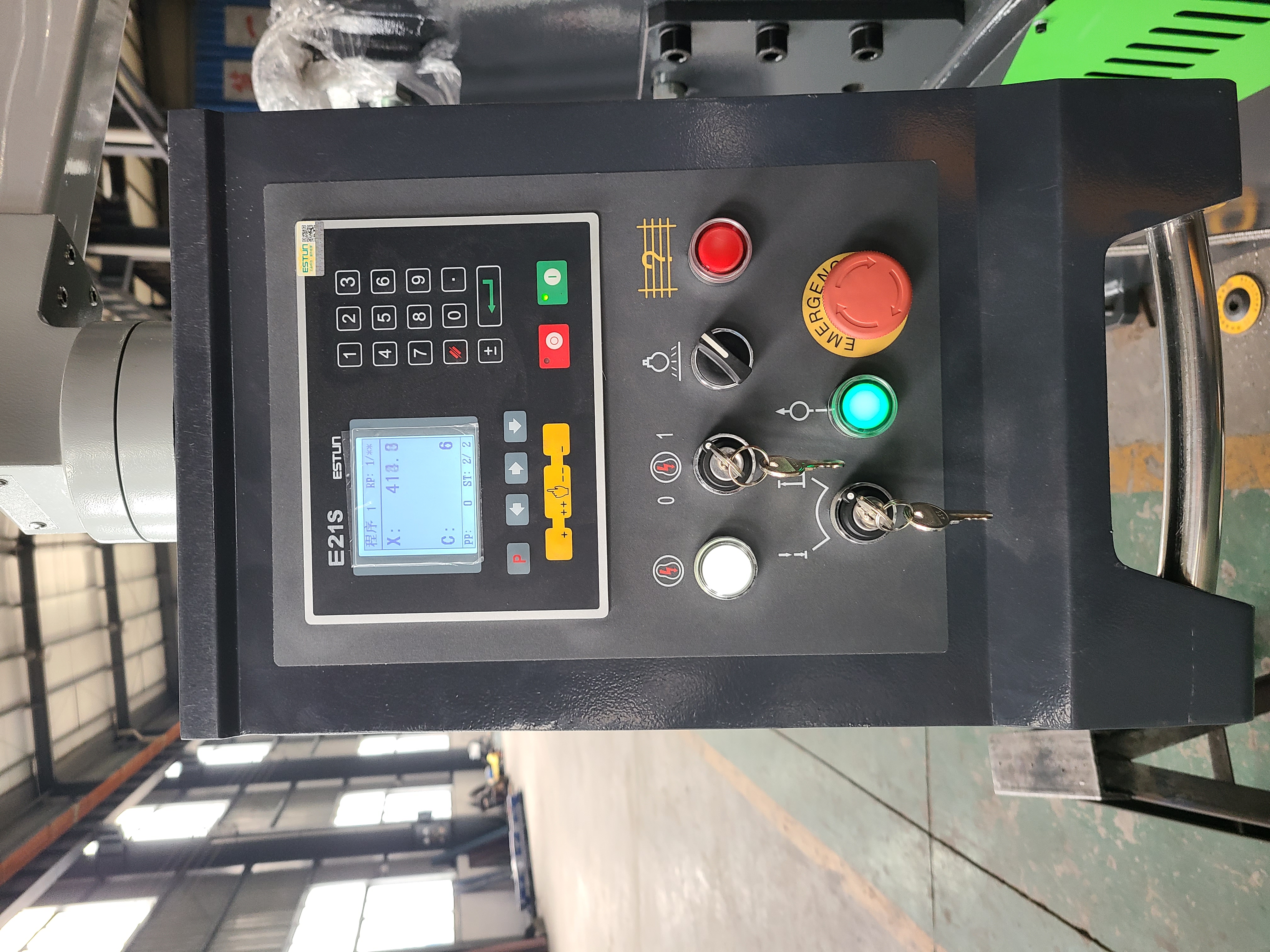

■ Motorized adjusting and manual adjusting for the back gauge

■ Cutting times of this machining tool are controlled by the time relay.

■ A set of standard blades.

■ Standard front support sheet frame.

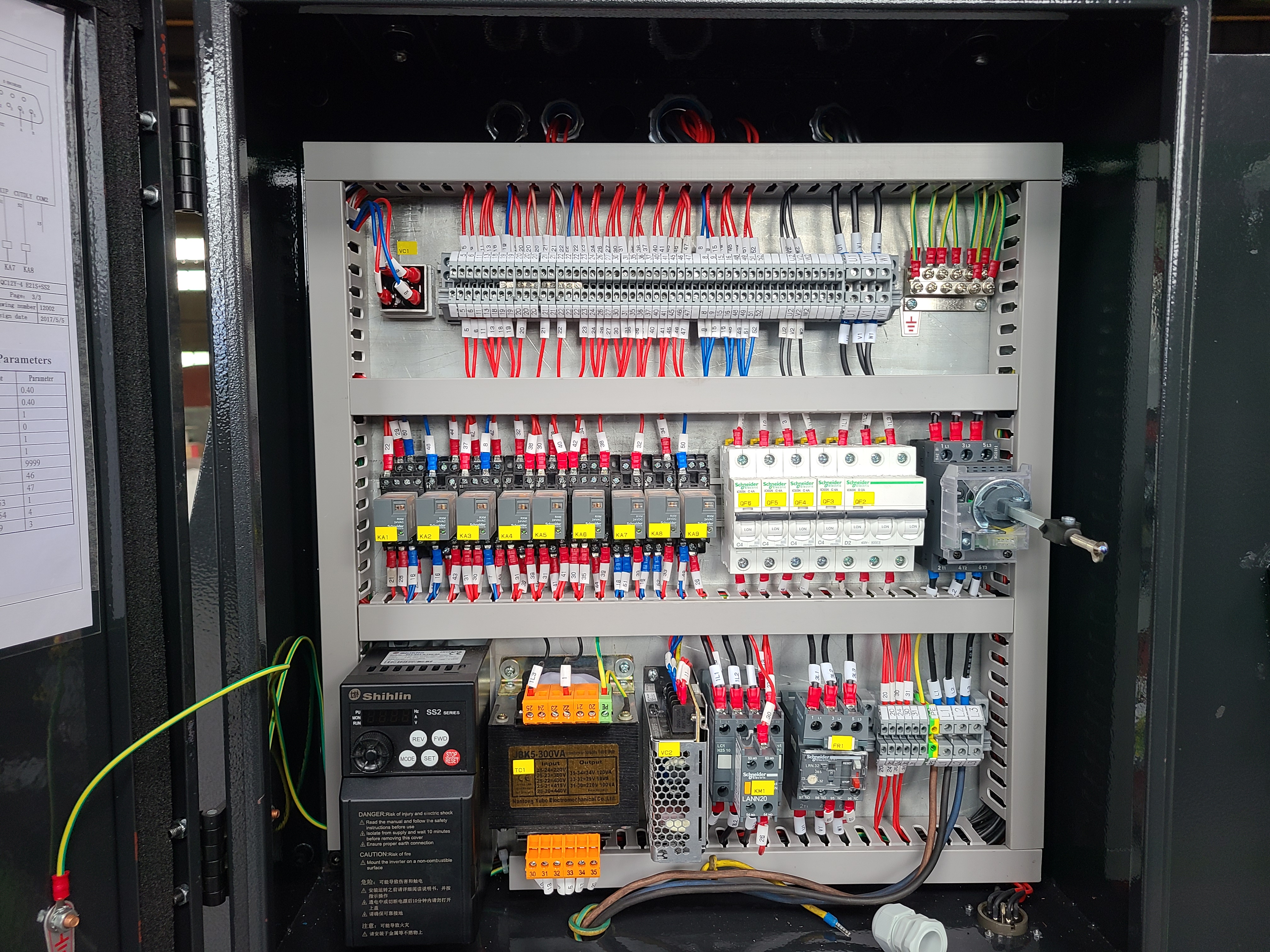

■ Protection fence and the electric interlocker to ensure the safety of the operator.

■ The machine by the European Union CE certification and ISO quality system certification

Technical Specification:

Model
Cutting Thickness
Cutting Length
Cutting angle
Strength
Strokes
Main power
Weight
Dimension(LxWxH)

(mm)
(mm)
(°)
(KN/CM)
(Spm)
(kw)
(kg)
L×W×H(mm)
QC12Y-4×2500
4
2500
1°30′
≤450
10
5.5
3800
3040×1610×1620
QC12Y-4×3200
4
3200
1°30′
≤450
10
5.5
5000
3840×1610×1620
QC12Y-4×4000
4
4000
1°30′
≤450
8
5.5
6500
4600×1700×1700
QC12Y-4×6000
4
6000
1°30′
≤450
5
7.5
11000
6460×2100×3200
QC12Y-6×2000
6
2000
1°30′
≤450
12
7.5
430
2540×1610×1620
QC12Y-6×2500
6
2500
1°30′
≤450
10
7.5
5000
3040×1610×1620
QC12Y-6×3200
6
3200
1°30′
≤450
9
7.5
6000
3840×1610×1620
QC12Y-6×4000
6
4000
1°30′
≤450
8
7.5
8200
4620×1750×1700
QC12Y-6×6000
6
6000
1°30′
≤450
5
11
16500
6480×2100×2300
QC12Y-8×2500
8
2500
1°30′
≤450
10
7.5
6000
3040×1700×1700
QC12Y-8×3200
8
3200
1°30′
≤450
8
7.5
7200
3860×1700×1700
QC12Y-8×4000
8
4000
1°30′
≤450
8
7.5
8800
4640×1700×1700
QC12Y-8×6000
8
6000
1°30′
≤450
8
11
18000
6480×2100×2350
QC12Y-10×2500
10
2500
1°30′
≤450
9
11
7300
3040×1700×1700
QC12Y-10×3200
10
3200
≤450
9
11
8000
3860×1700×1700
QC12Y-10×4000
10
4000
≤450
8
11
12050
4650×2100×2000
QC12Y-10×6000
10
6000
1°30′
≤450
5
15
24000
6500×2100×2300
QC12Y-12×2500
12
2500
1°40′
≤450
9
18.5
9000
3140×2150×2000
QC12Y-12×3200
12
3200
1°40′
≤450
9
18.5
10800
3880×2150×2000
QC12Y-12×4000
12
4000
1°40′
≤450
8
18.5
13000
4680×2150×2000
QC12Y-12×6000
12
6000
≤450
5
18.5
29500
6900×2600×2700
QC12Y-12×8000
12
8000
≤450
5
18.5
46500
9000×3500×3500
QC12Y-16×2500
16
2500
2°30′
≤450
9
18.5
11000
3140×2150×2000
QC12Y-16×3200
16
3200
2°30′
≤450
8
18.5
13000
3880×2150×2000
QC12Y-16×4000
16
4000
2°30′
≤450
8
18.5
16300
4650×2150×2200
QC12Y-16×6000
16
6000
2°30′
≤450
5
22
36000
6900×2700×2700
QC12Y-16×8000
16
8000
2°30′
≤450
5
22
75000
9000×3500×3500
QC12Y-20×2500
20
2500
≤450
8
22
15800
3440×2300×2500
QC12Y-20×3200
20
3200
≤450
8
22
18500
4150×2350×2700
QC12Y-20×4000
20
4000
≤450
5
22
21500
4850×2600×2400
QC12Y-20×6000
20
6000
≤450
4
22
47000
6700×3000×3000
QC12Y-25×2500
25
2500
≤450
8
37
19000
3200×2700×2900
QC12Y-25×3200
25
3200
≤450
5
37
23000
4200×2500×2600
QC12Y-30×2500
30
2500
≤450
4
37
23500
3300×2900×3000
QC12Y-30×3200
30
3200
3°30′
≤450
4
40
26000
4200×2500×2600
QC12Y-40×2500
40
2500
≤450
3
75
38000
3200×3300×3200
QC12Y-40×3200
40
3200
≤450
3
90
49000
4300×3300×3000
