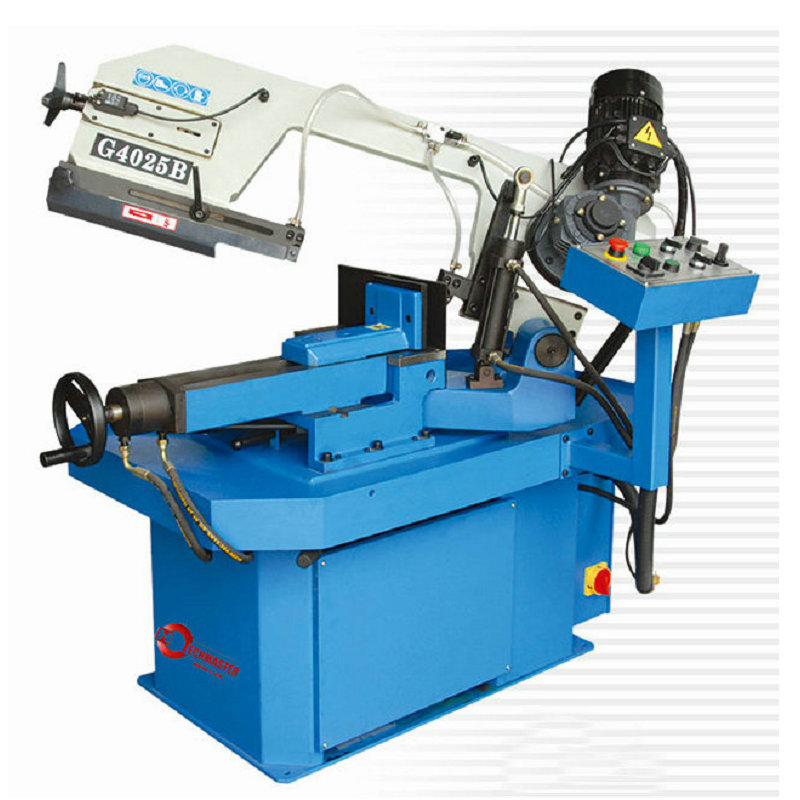

QUALITY METAL SAW G4025B
Quantity: Pushbutton Manual saw band switches the blade of the saw blade on and off.Ball bearing saw band guide.Robust substructure.Fully equipped machine;Silent run.Base plate and saw bow made of cast iron.Stable saw frame, therefore quiet and low-vibration run.Easy to read scale for angle adjustment.As standard with high-quality bi-metal saw band.Saw band tension adjustable on the front side via handwheel.Adjustable material stop for serial work.Quick hold of the workpiece by quick-action vice. whereby the user can work immediately after commissioning.
G4025B Specifications The bow swivel degree0° ~ 60°0° ~ －45°Cutting Capacity
- 45° Φ190 mm 180 x 230 mm
0° Φ250 mm 280 x 230 mm
45° Φ190 mm 180 x 230 mm
60° Φ120 mm 115 x 230 mmBlade Speed27 ~ 53 m/min.
Blade Size2700 x 27 x 0.9 mm
Worm gear reduction ratio1:50
Motor Main850W / 1.1 kw
Weight350 kg
Overall Dimension1500 x 900 x 1300 mmPushbutton Manual saw band switches the blade of the saw blade on and off.Ball bearing saw band guide.Robust substructure.Fully equipped machine;Silent run.Base plate and saw bow made of cast iron.Stable saw frame, therefore quiet and low-vibration run.Easy to read scale for angle adjustment.As standard with high-quality bi-metal saw band.Saw band tension adjustable on the front side via handwheel.Adjustable material stop for serial work.Quick hold of the workpiece by quick-action vice. whereby the user can work immediately after commissioning.
G4025B Specifications The bow swivel degree0° ~ 60°0° ~ －45°Cutting Capacity
- 45° Φ190 mm 180 x 230 mm
0° Φ250 mm 280 x 230 mm
45° Φ190 mm 180 x 230 mm
60° Φ120 mm 115 x 230 mmBlade Speed27 ~ 53 m/min.
Blade Size2700 x 27 x 0.9 mm
Worm gear reduction ratio1:50
Motor Main850W / 1.1 kw
Weight350 kg
Overall Dimension1500 x 900 x 1300 mm
