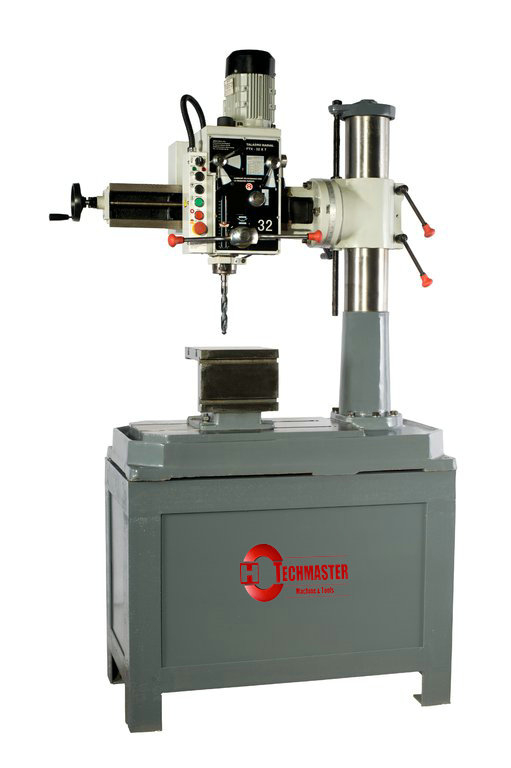

RADIAL DRILL FTX 32X7 RADIAL

Quantity:
  • RADIAL DRILL FTX 32X7 RADIAL
ACCESORIOS INCLUIDOS / INCLUDED ACCESORIES / ACCESSOIRES INCLUS

ES / EN / FR

Pedestal incluído / Stand included / Socle inclus

CARACTERISTICAS / FEATURES / CARACTERISTIQUES

ES

Amplio rango de velocidades, de avance manual y automátic
Brazo radial, giratorio e inclinable a +-45º.
Las partes principales han sido elaboradas en centro de mec
Máquina de pequeña apariencia y numerosas funciones.
Máquina para un uso amplio en taladro, achaflanado, fresado,
aterrajado, etc...
Declaración y equipamiento CE.

EN

Wide range speed, manual and power feed.
Radial arm rotates and tilts +-45º.
Main parts are made by machine center which ensures reliability and
high quality.
Machine with small appearence and lot of function.
Machine is widely used for drilling, counterboring, reaming, tapping,
etc...
Declaration of conformity and equipment CE.

FR

 Large gamme de vitesses, d’avance manuelle et automatique.
Bras radiale, pivotante et inclinable +-45º.
Exécution robuste assurant rigidité et précision.
Machine aux applications multiples.
Moteur puissant d’haute qualité.
Marquage et équipement CE.

CARACTERISTICAS TÉCNICAS / TECHNICAL SPECIFICATIONS / CARACTERISTIQUES TECHNIQUES
FTX 32X7 RADIAL
Alimentación / Input voltage / Alimentation V 400-F3
Potencia / Power / Puissance Kw - Hp 1,1-1,5
Transmisión / Transmission / Transmission
Engranajes / Gears / Engrenages
Nº Velocidades / Nº Speeds / Nº Vitesse
8
Velocidades / Speeds / Vitesse r.p.m 100 - 1600
Capacidad broca / Drilling capacity / Capacité de perçage mm. 32
Dist. portabrocas-columna / Distance from spindle axis to column / Distance mandrin-colonne mm. 300 - 700
Max. distancia portabrocas-mesa / Max. distance spindle-table / Max. distance mandrin-table mm. 275 - 680
Cono morse / Morse taper / Cône morse
MT3
Profundidad taladro / Max.travel spindle / Profondeur de perçage mm. 140
Avance husillo / Spindle feed / Avance vérin mm./r 0,08/0,14/0,23
Diámetro columna / Diameter of column / Diamètre colonne mm. 150
Dimensión base / Base size / Base dimension mm. 1050x550x120
Dimensión mesa / working table dimensions / Dimension table mm. 250x250x250
Dimensiones / Dimensions / Dimensions mm. 1230x620x1340
Peso / Weight / Poids kg. 380
