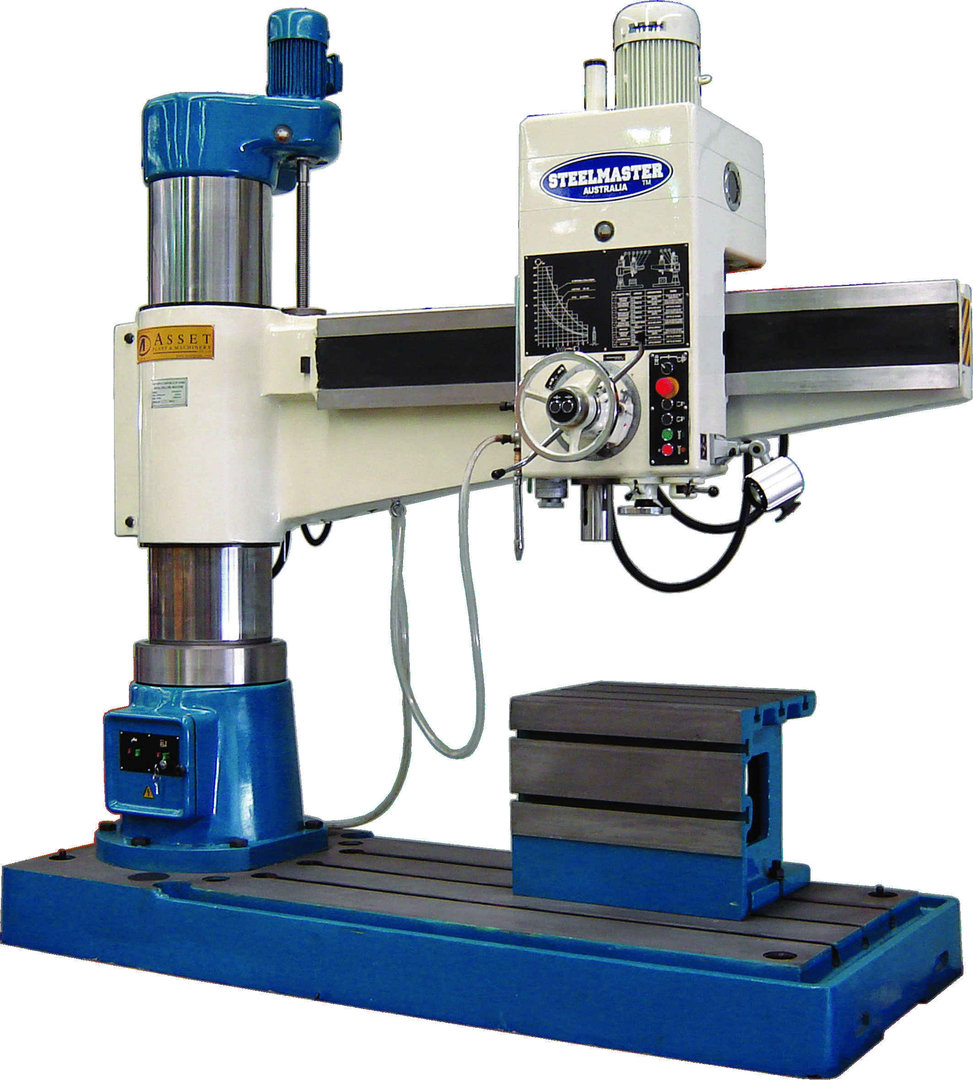

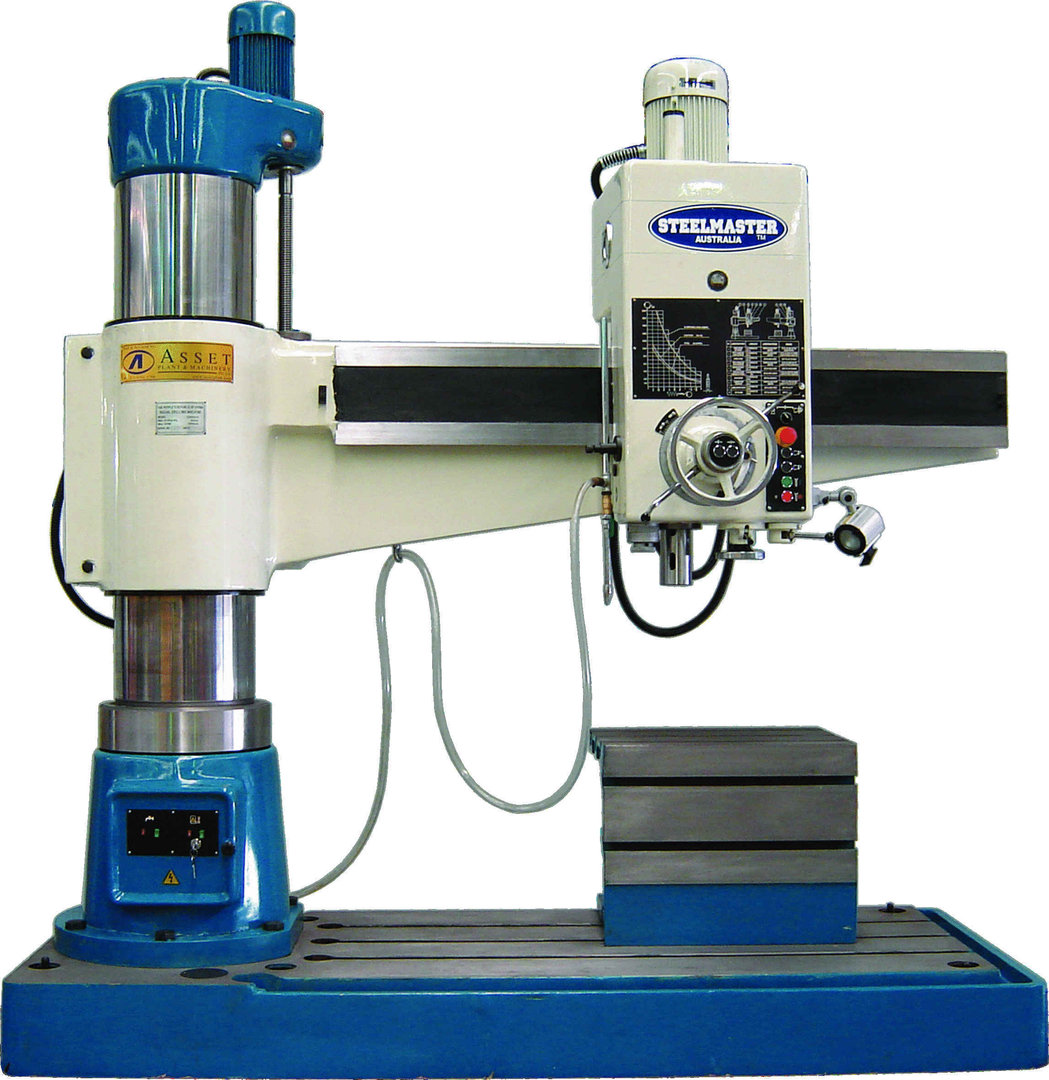

RD2063. Radial Arm Drill Steelmaster. 2000mm Arm, 63mm Drilling Capacity, 5 M.T. Spindle,
Quantity: -
RD2063
Description
This Radial Drill has long been accepted in the market as a machine that can handle the work of machines costing thousands of dollars more.
We go one step further and offer you this improved model with a super-large box table.
It comes standard with drill chuck and standard accessories.
Features
❚ made from high quality fine grain cast iron with heavy duty ribbing to ensure extremely low vibration
❚ oil bath lubricated gearbox with hardened, precise ground gears
❚ quiet operation

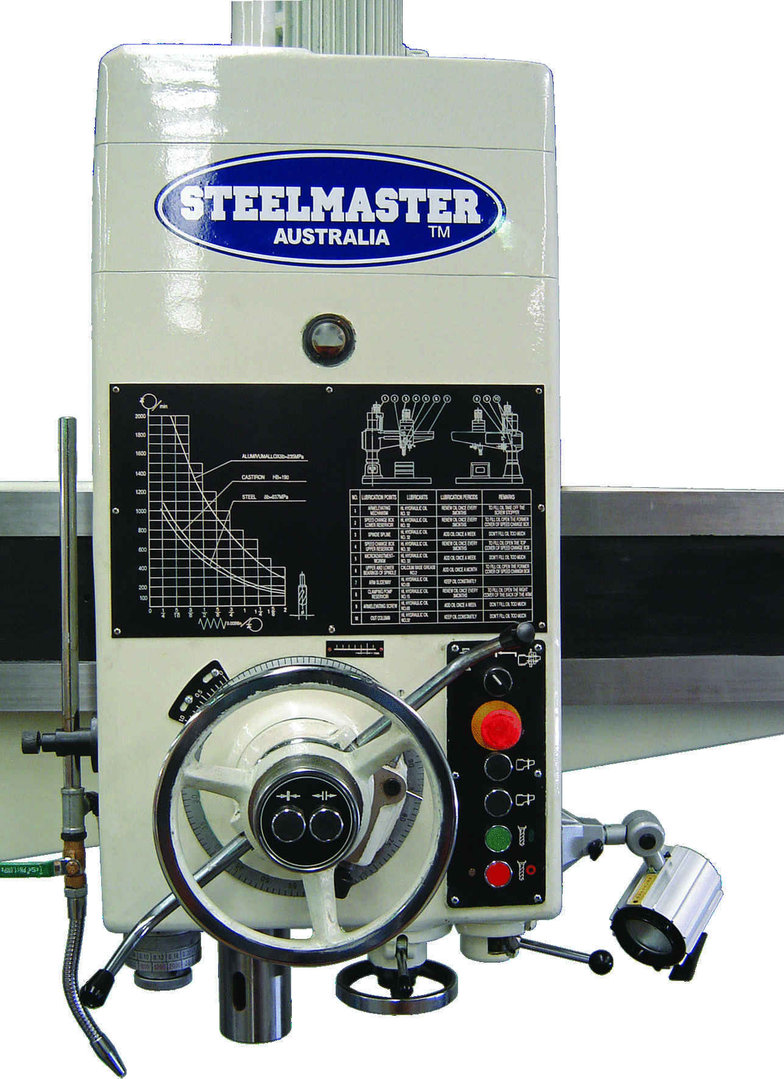

❚ easily accessible front panel to electrical and mechanical controls

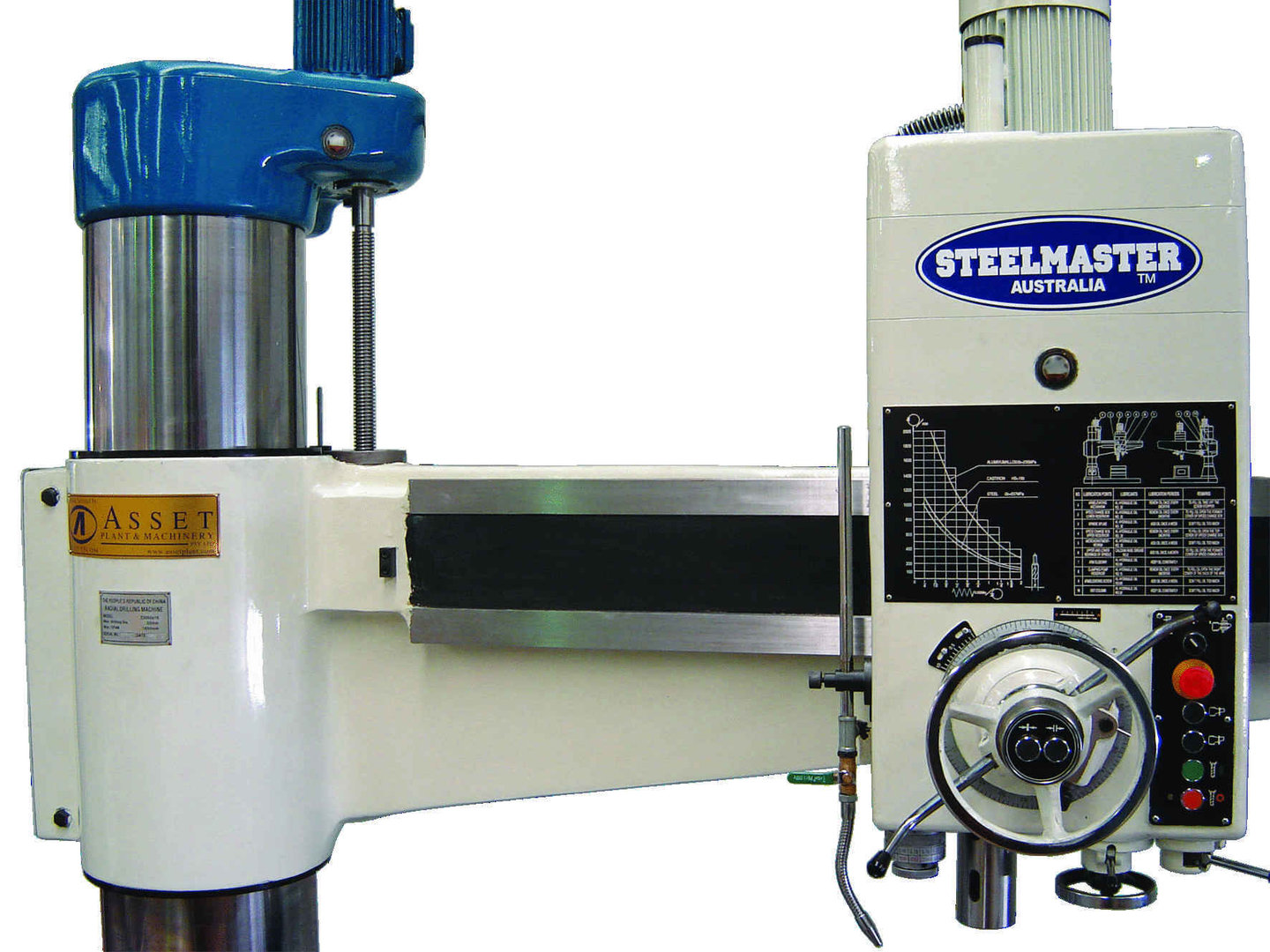

❚ arm height adjustment through elevating screw and elevating motor
❚ hardened and ground guide ways
❚ hydraulic operated feed and spindle drive system ensuring long life

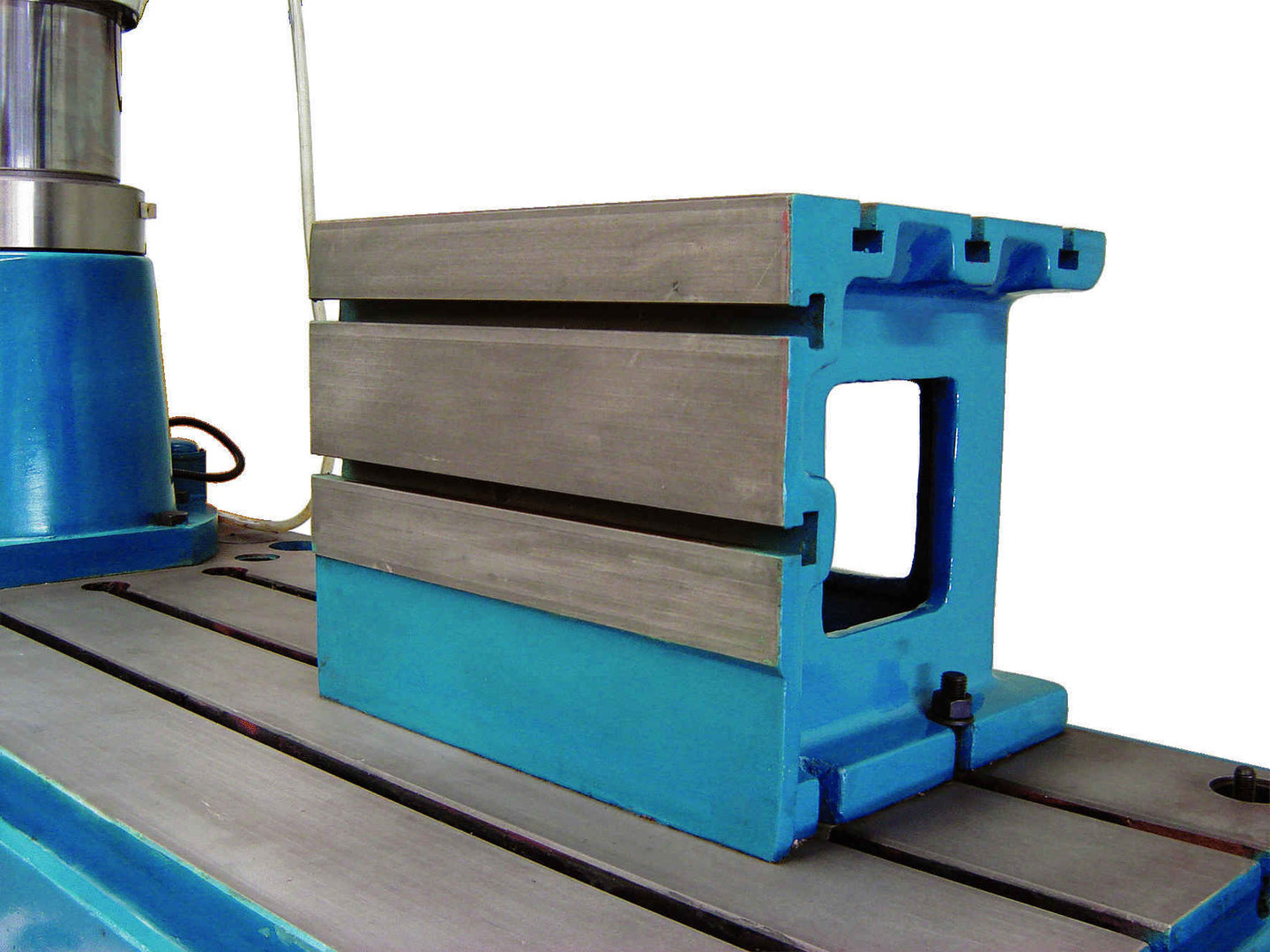

❚ heavy duty tee slotted box table
❚ up to 3000 mm capacity available
Technical Data Snap-Shot
❚63mm drilling & M50 tapping capacity
❚800mm x 630mm x 630mm heavy duty box table
❚400mm spindle travel

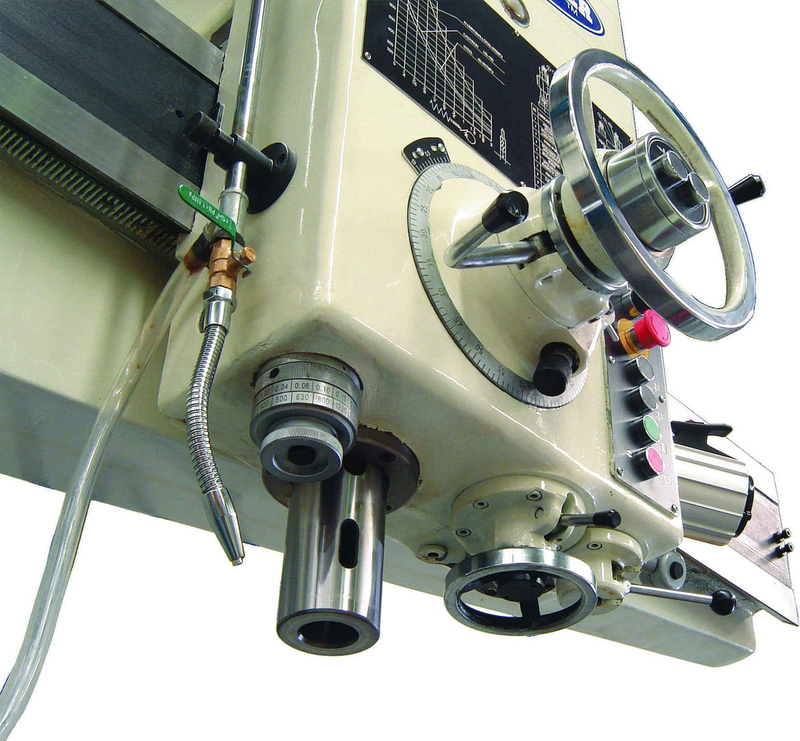

❚5 morse taper spindle
❚speeds range - 20 ~ 1600 (8)
❚motor capacity - 5.5Kw x 415Volt
❚shipping dimensions - 2800mm x 1400mm x 3000mm
❚approx weight: 8000kgDescription
