Rotary Table HV-3”HV-4″ HV-5″
Quantity: -

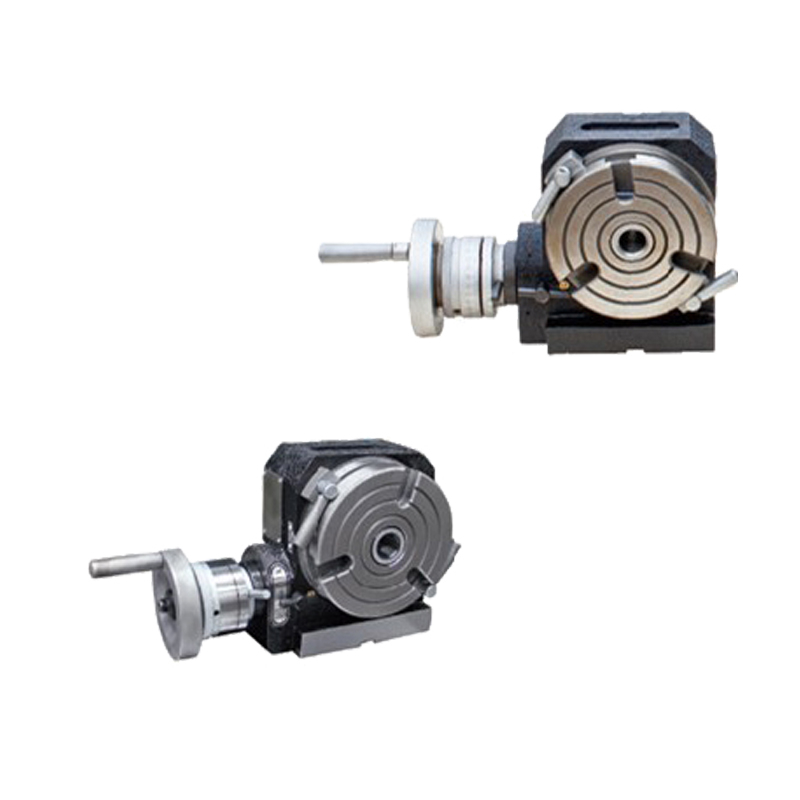

Rotary Table HV-3”HV-4″ HV-5″
MINI SERIES ROTARY TABLE FEATURES:
Mini H/V rotary is one of main accessories of DIY and home use milling machines it is used for index
boring, milling, circle cutting, spot facing and boring hole etc on milling machine. Rotary table in vertical
with tailstock working together, it can used on complex work for circle index boring and milling.
SPECIFICATIONS:
MODEL
HV-3”
HV-4”
HV-5”
Table diameter mm
Φ76.2
Φ110
Φ127
Morse taper of the center hole
MT2
MT2
MT2
Height of center for Verti.mounting mm
59
81.5
90
Width of the T-slot mm
8
12
12
Adjacent angle of table T-slot
90°
120°
120°
Width of the locating key mm
12
12
12
Module of the worm gear
1
1
1
Transmission ratio of the worm gear
1:36
1:72
1:72
Graduation of the table
360°
360°
360°
Rotating angle of the table with one revolution of the worm
10°
5°
5°
Max.bearing(with table Hor.)kg
100
150
200
Max.bearing(with table Vert.)kg
50
75
100
MODEL
HV-3”
HV-4”
HV-5”
A
98
145
155
B
78
114
127
C
59
85.5
90
D
76.2
110
127
E
12
12
12
H
83
85
85
J
15
M
MT2
MT2
MT2
N
71
68
68
