FEATURE:
● Widely useful, grind various surfaces
● Spindle and leadscrew is imported
● Mutiple labyrinth seal is used on spindle quill
● Rolling ball guideway is used on longitudinal direction
● Double V type guideways
● Vertical handwheel is fixed on bed
● Manual oil pump lubricates all moveable parts

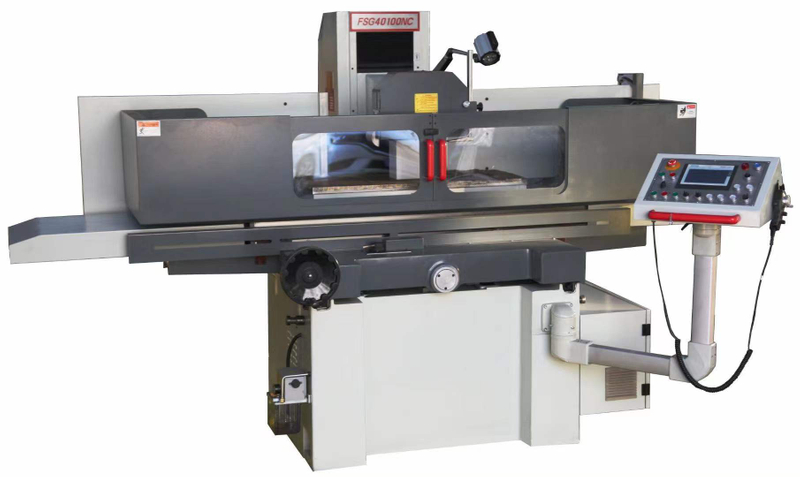

SG-SERIES SADDLE MOVING SURFACE GRINDER
Model No. | SG-4080AH | SG-40100AH | |
Specifications | |||
Table size (mm) | 406 x 813 mm | 406 x 1020 mm | |
Max. longitudinal travel (mm) | 910 mm | 1130 mm | |
Max. cross travel (mm) | 450 mm | 450 mm | |
Max. dis. from spindle to table (mm) | 580 mm | 580 mm | |
Electro magnetic chuck size(mm) | 400 x 800 mm | 400 x 1000 mm | |
Table longitudinal feed speed | 7-23 m/min. | ||
Table tansverse movement | Auto feed | 0.1 - 8 mm/min. | |
Rapid speed | 990 m/min. | ||
Feed of electro handwheel | 0.02 mm/div. | ||
Head vetical movement | Auto feed | 0.005/0.01/0.02/0.03/0.04/0.05 mm (only for AHD) | |
| Rapid feed | 460 mm/min. (only for AHD) | ||
Feed of handwheel | 0.005 mm/div. | ||
Grinding wheel | Speed | 1450 rpm | |
Size (ODxWxID) | 350 x 40 x 127 mm | ||
Spindle Motor (kw) | 5.5 kw | ||
Hydranlic motor (kw) | 2.2 kw | ||
Cooling pump motor (kw) | 0.125 kw | ||
Elevating motor (kw) | --- (AH mode) 0.25 (AHR mode) 0.5 (AHD mode,servo motor) | ||
Cross feed motor (kw) | 0.04 kw | ||
Max. loading of table ( include chuck) (kg) | 500 kg | 600 kg | |
Total rated power (kw) | 9 kw | ||
Height of machine (mm) | 1890 mm | ||
Floor space (mm) | 3600 x 2400 mm | 4400 x 2400 mm | |
Gross weight (kg) | 3500 kg | 4000 kg | |
Package dimensions (mm) | 2850x2270x2180 mm | 2950x2270x2210 mm | |
