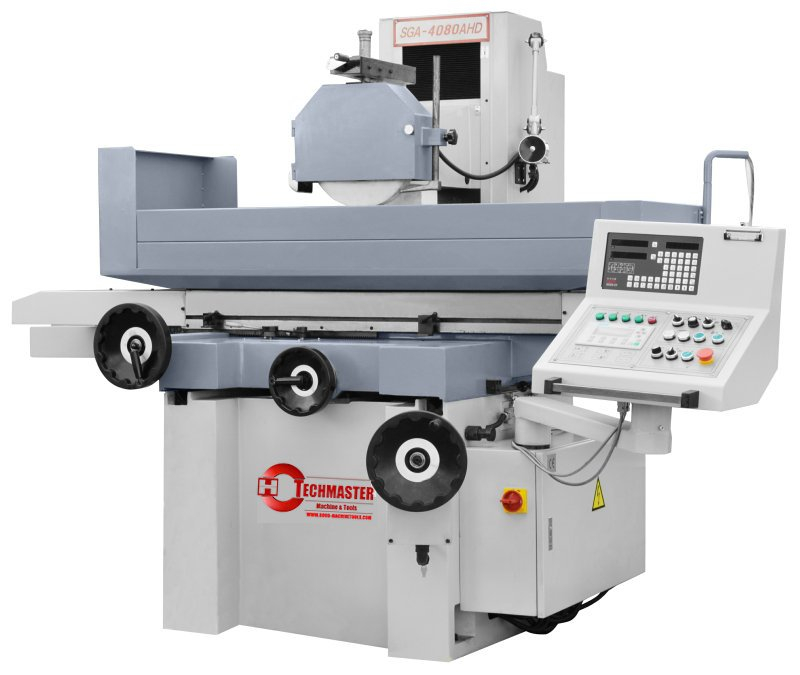

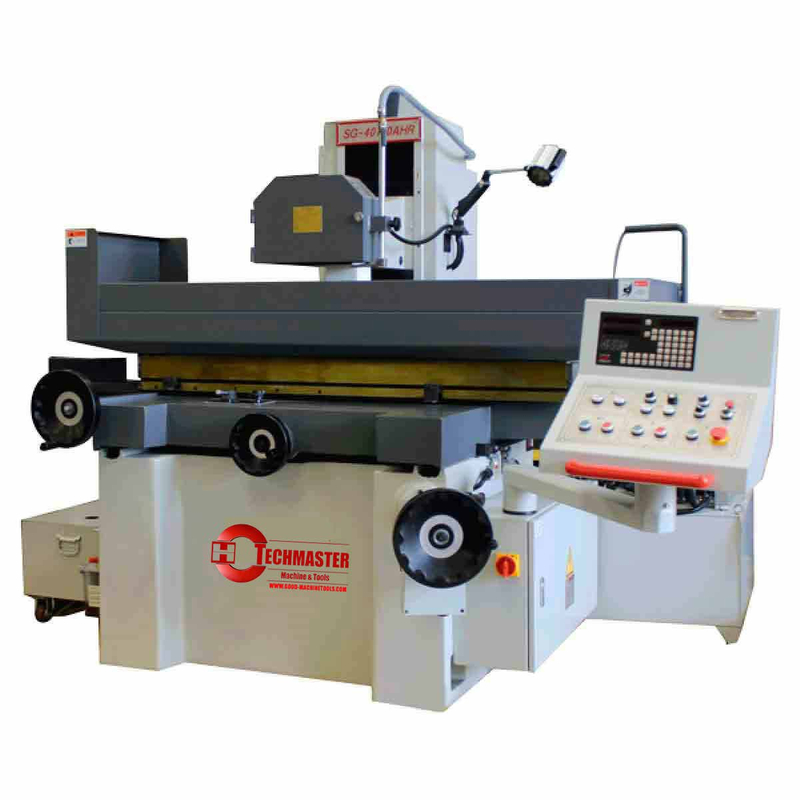

SADDOW MOVING SURFACE GRINDER SG4080AHR

Quantity:
  • SG4080AH



FEATURE:

 Widely useful, grind various surfaces
 Spindle and leadscrew is imported
 Mutiple labyrinth seal is used on spindle quill
 Rolling ball guideway is used on longitudinal direction
 Double V type guideways
 Vertical handwheel is fixed on bed
 Manual oil pump lubricates all moveable parts





SG-SERIES SADDLE MOVING SURFACE GRINDER





 Model No.

SG-4080AH
SG-4080AHR
SG-4080AHD

SG-40100AH
SG-40100AHR
SG-40100AHD

 Specifications


 Table size (mm)
406 x 813 mm
406 x 1020 mm
 Max. longitudinal travel (mm)
910 mm
1130 mm
 Max. cross travel (mm)
450 mm
450 mm
 Max. dis. from spindle to table (mm)
580 mm
580 mm
 Electro magnetic chuck size(mm)
400 x 800 mm
400 x 1000 mm
 Table longitudinal feed speed
7-23 m/min.
 Table tansverse
 movement
 Auto feed
0.1 - 8 mm/min.
 Rapid speed
990 m/min.
 Feed of electro handwheel
0.02 mm/div.
 Head vetical
 movement
 Auto feed
0.005/0.01/0.02/0.03/0.04/0.05 mm (only for AHD)
 Rapid feed
460 mm/min. (only for AHD)
 Feed of handwheel
0.005 mm/div.
 Grinding wheel
 Speed
1450 rpm
 Size (ODxWxID)
350 x 40 x 127 mm
 Spindle Motor (kw)
5.5 kw
 Hydranlic motor (kw)
2.2 kw
 Cooling pump motor (kw)
0.125 kw
 Elevating motor (kw)
--- (AH mode) 0.25 (AHR mode) 0.5 (AHD mode,servo motor)
 Cross feed motor (kw)
0.04 kw
 Max. loading of table ( include chuck) (kg)
500 kg
600 kg
 Total rated power (kw)
9 kw
 Height of machine (mm)
1890 mm
 Floor space (mm)
3600 x 2400 mm
4400 x 2400 mm
 Gross weight (kg)
3500 kg
4000 kg
 Package dimensions (mm)
2850x2270x2180 mm
2950x2270x2210 mm
