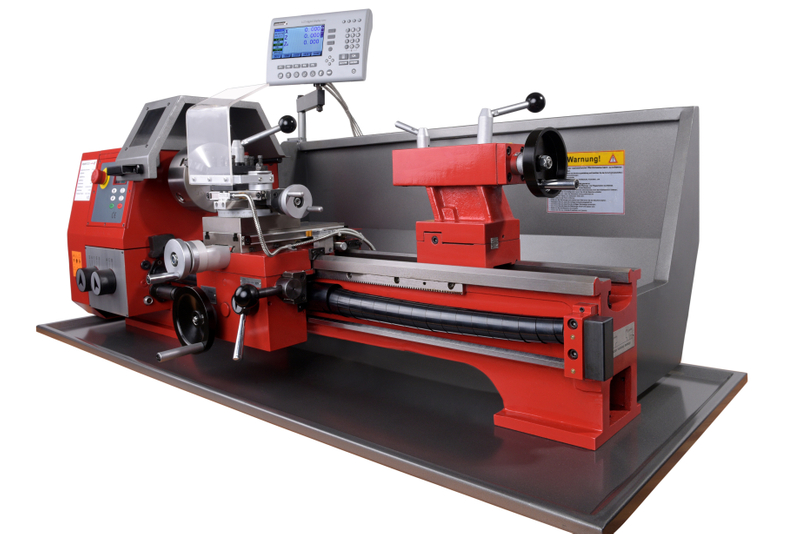

SC10 DRO
Quantity: -
SC10 DRO
• Overrunning clutch
• Hardened bed way
• High power with large cutting capacity
• Auto feeding on both X, Y axis
• Cutting all thread pitchs only adjust the gear box handles, no more need changing gears
Features: 1500W DC Brushless Motor
Cross & Longitudinal Power FeedIn-Built Oil Bathed Gear Box
Belt Drive for Quieter OperationCam-Lock Tailstock
Metal GearsT-Slots on Cross Slide
38mm BoreSwitched Chuck Guard
Leadscrew GuardLeadscrew Overload Clutch
Metric & Imperial ThreadsEmergency Stop Button
High Quality Induction Hardened Cast Iron Bed
Swing over bed
305 mm
Distance between centers
700 mm
Hole through spindle
38mm
Spindle taper
MT5
Spindle nose
D type
Tailstock taper
MT3
Compound travel
80 mm
Cross slide travel
155 mm
Range of thread Metric version
0.25 - 2 .5 mm (14 threads pitches)
Imperial version
12 - 96 TPI (9 threads pitches)
Motor output power
(Brushless motor)1500 W
Spindle speed
100-2000 rpm
Overall dimension(LxWxH)
1500x750x730 mm
Packing size (LxWxH)
1550x890x670 mm
Weight (Net/Gross)
215/255kg
Standard Accessories:160mm D1-4
3-Jaw Self-Centering Chuck
MT5 Spindle CentreM
T3 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set
