Over running clutch
Hardened bed way
High power with large cutting capacity
Auto feeding on both X, Y axis
utting all thread pitchs only adjust the gear box handles, no more need changing gears
Features: 1500W DC Brushless Motor
Cross & Longitudinal Power FeedIn-Built Oil Bathed Gear Box
Belt Drive for Quieter OperationCam-Lock Tailstock
Metal GearsT-Slots on Cross Slide
38mm BoreSwitched Chuck Guard
Leadscrew GuardLeadscrew Overload Clutch
Metric & Imperial ThreadsEmergency Stop Button
High Quality Induction Hardened Cast Iron Bed

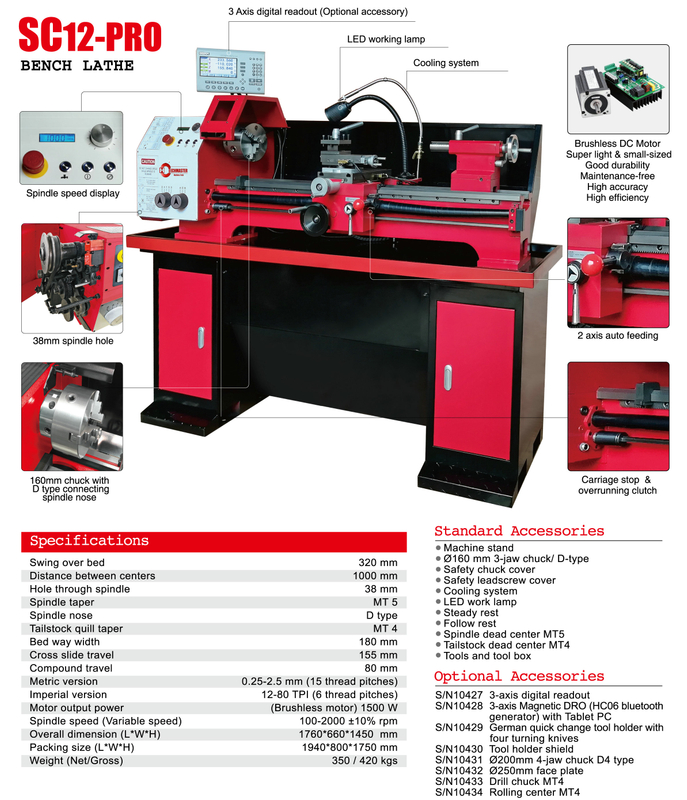

Swing over bed | 320 mm |
Distance between centers | 1000 mm |
Hole through spindle | 38mm |
Spindle taper | MT5 |
Spindle nose | D type |
Tailstock taper | MT4 |
Compound travel | 80 mm |
Cross slide travel | 155 mm |

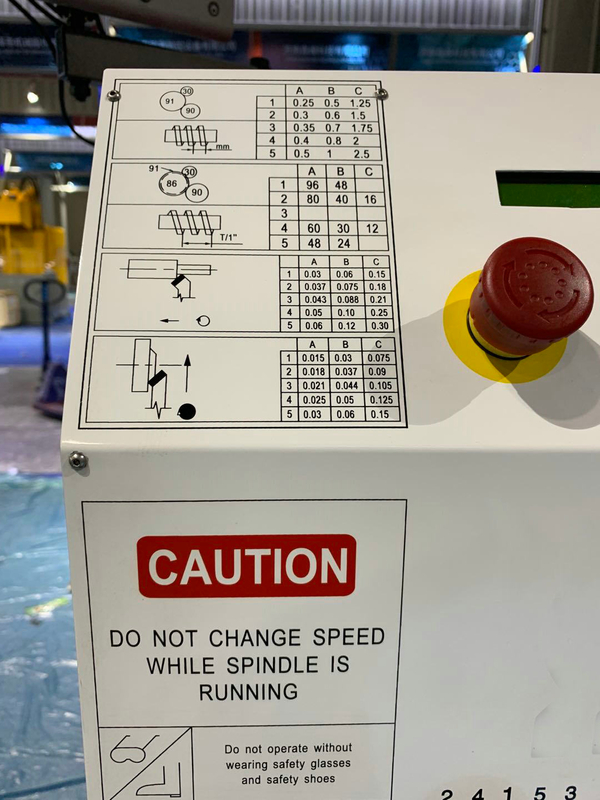

Range of thread Metric version | 0.25 - 2 .5 mm (14 threads pitches) |
Imperial version | 12 - 96 TPI (9 threads pitches) |
Motor output power | (Brushless motor)1500 W |
Spindle speed | 100-2000 rpm |
Overall dimension(LxWxH) | 1760x660x1450 mm |
Packing size (LxWxH) | 1940x800x1750 mm |
Weight (Net/Gross) | 350/420kg |
Standard Accessories:160mm D1-4
3-Jaw Self-Centering Chuck
MT5 Spindle CentreM
T4 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set
