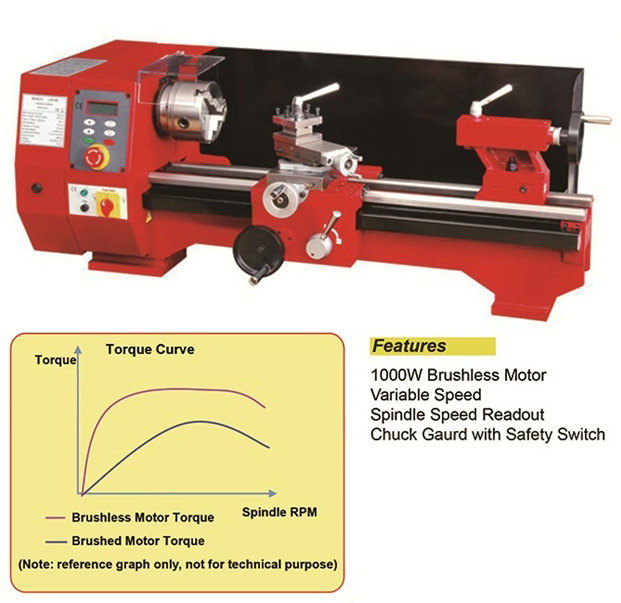

C6
Near silent running
• Integral splash guard
• Metric and Imperial thread cutting
• Full range of accessories available
• 1000W high torque, brushless motor
• 125-2,000 rpm electronic variable spindle speeds
Swing over bed | 250 mm |
Distance between centers | 550 mm |
Hole through spindle | 20 mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Spindle speed (variable speed) | 125-2000 ±10% rpm |
Compound travel | 75 mm |
Cross slide travel | 110 mm |
Motor output power | 1000 W (Brushless Motor) |
Thread range Metric version | 0.4-3.0 mm (12 threads pitches) |
Imperial version | 10-44 TPI ( 8 threads pitches) |
Overall dimension (LxWxH) | 1100x550x420 mm |
Weight (Net/Gross) | 145/180 kg |
Packing size (LxWxH) | 1180x640x570 |
