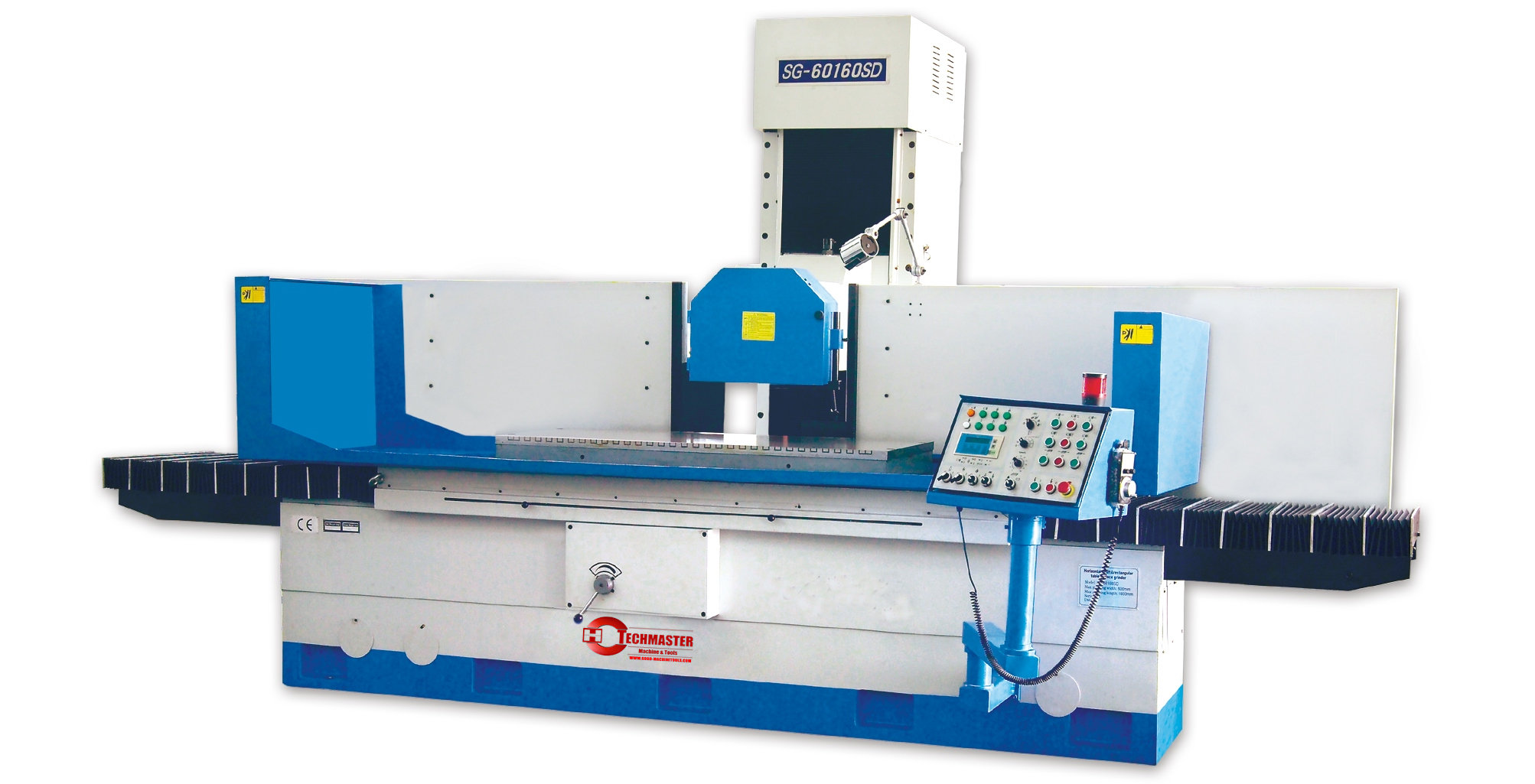

SG-60160SD
Quantity: Feature:
Headstock runs in preloaded angular ball bearings and features a high load capacity
X and Y axis guide ways are counter-laminated(plastic)
Separate hydraulic unit with oil coole
X axis with high-dynamic, hydraulic drive
Combination of box ways and V-guides on X and Y, plus rectangular guide way on Z
Premium components ensure maximum accuracy for continuous operation
Standard Equipment:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser
Stand not include diamond pen
Standard grinding wheel
Foundation bolt
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD/SD models
Optional Accessories：
Wheel stand
Standard magnetic chuck
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper
Model
Unit
SG60160SD
SG60160CNC
SG60220SD
SG60220CNC
SG60300SD
SG60300CNC
SG80160SD
SG80160CNC
SG80220SD
SGA80220SD
SG80220CNC
SG80300SD
SG80300CNC
Table size
mm
610x1600
610x2200
610x3000
810x1600
810x2200
810x3000
Max grind(W x L)
mm
610x1600
610x2200
610x3000
810x1600
810x2200
810x3000820
Max distance from table to spindle center
mm
820(925)
Magnetic chuck size(optional equipment)
mm
600x800x2
600x1000x2
600x1000x3
800x800x2
800x1000x2
800x1000x3
Speed of table longitudinal movement
m/min
5-25
Wheel head cross
movement
Auto feed
Mm/t
1-30
Rapid speed
Mm/min
0.05-2
Feed of hand wheel
Mm/div
Mm/gra
0.005
Wheel head vertical movement
Auto feed
Mm/t
0.005-0.05
Rapid feed
mm/min
0.05-2
Feed of hand wheel
Mm/div
Mm/gra
0.005
960(14050)Wheel
Speed
Rpm
960(1450)
Size
Mm
500x75x305(450x75x203)
Motor of s500pindle
Kw
18.5
Max loading capacity of table
Kg
1230
1690
2300
1630
2240(3000)
3060
Total rated power
Kw
28.5
28.5(29.6)
31
Height of machine
Mm
2700
Floor space
Mm
4700x3000
6000x3000
8200x3000
4700x3500
6000x3500
8200x3600
Gross weight
kg
8500
9500
12500
10000
11500
14000
Feature:
Headstock runs in preloaded angular ball bearings and features a high load capacity
X and Y axis guide ways are counter-laminated(plastic)
Separate hydraulic unit with oil coole
X axis with high-dynamic, hydraulic drive
Combination of box ways and V-guides on X and Y, plus rectangular guide way on Z
Premium components ensure maximum accuracy for continuous operation
Standard Equipment:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser
Stand not include diamond pen
Standard grinding wheel
Foundation bolt
Leveling wedge and bolt
Built in electro magnetic chuck controller
PLC auto grinding controller only for AHD/SD models
Optional Accessories：
Wheel stand
Standard magnetic chuck
Coolant tank with magnetic separator
Coolant tank with paper filter
Coolant with magnetic separator and paper
Model
Unit
SG60160SD
SG60160CNC
SG60220SD
SG60220CNC
SG60300SD
SG60300CNC
SG80160SD
SG80160CNC
SG80220SD
SGA80220SD
SG80220CNC
SG80300SD
SG80300CNC
Table size
mm
610x1600
610x2200
610x3000
810x1600
810x2200
810x3000
Max grind(W x L)
mm
610x1600
610x2200
610x3000
810x1600
810x2200
810x3000820
Max distance from table to spindle center
mm
820(925)
Magnetic chuck size(optional equipment)
mm
600x800x2
600x1000x2
600x1000x3
800x800x2
800x1000x2
800x1000x3
Speed of table longitudinal movement
m/min
5-25
Wheel head cross
movement
Auto feed
Mm/t
1-30
Rapid speed
Mm/min
0.05-2
Feed of hand wheel
Mm/div
Mm/gra
0.005
Wheel head vertical movement
Auto feed
Mm/t
0.005-0.05
Rapid feed
mm/min
0.05-2
Feed of hand wheel
Mm/div
Mm/gra
0.005
960(14050)Wheel
Speed
Rpm
960(1450)
Size
Mm
500x75x305(450x75x203)
Motor of s500pindle
Kw
18.5
Max loading capacity of table
Kg
1230
1690
2300
1630
2240(3000)
3060
Total rated power
Kw
28.5
28.5(29.6)
31
Height of machine
Mm
2700
Floor space
Mm
4700x3000
6000x3000
8200x3000
4700x3500
6000x3500
8200x3600
Gross weight
kg
8500
9500
12500
10000
11500
14000
