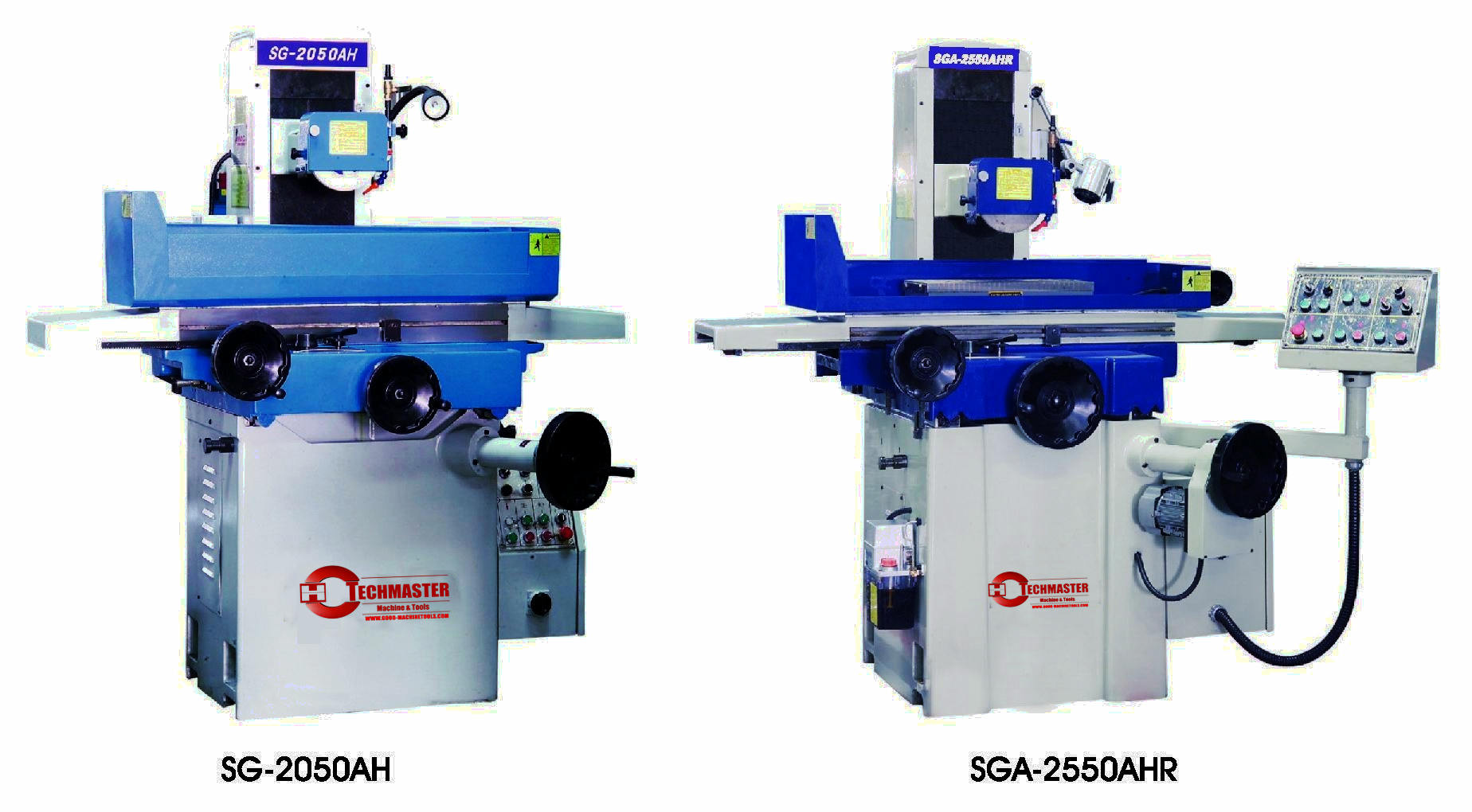

The surface grinding machine with pleasing appearance and well designed structure, the machine is an indeed precision grind equipment for metal working.
The well designed structure have good rigidity and keep the machine with high accuracy.
Well designed and carefully assembled Hydraulic unit make the table moves smoothly. The oil temperature increase low after long working.
1.The machine can grind work pieces which are made of steel,casting iron,nonferrous mateial,and it also grind nonmetal,such as porcelain,stone ect.The machine is applied in machining workshop,repair workshop and tools workshop.
2.The machine adopts the design style of “+”saddle,three guideways are all lined with TF wearable material and lubricated by intermittent forced oil pump,the column adopts double wall structure(The column of SG2050、 SGA2550 series have steel guideway.The table longitudinal movement is driven by variable displacement vane pump and adopts closed type hydraulic system,Its speed is variable changed by adjusting lever located on the saddle and can be driven by manual also.The saddle cross movement is driven by manual and can be also driven automatic intermittent moving by motor through the ball screw.
3.The grinding haad can be driven by lift motor (AHR model) or servo motor (AHD model),and also can be driven by manual.
description model | unit | SGA2050AH | SGA-3063AH | SGA-30100AH | SGA-4080AH | SGA-40100AH | |
SGA2050AHR | SGA-3063AHR | SGA-30100AHR | SGA-4080AHR | SGA-40100AHR | |||
SGA2050AHD | SGA-3063AHD | SGA-30100AHD | SGA-4080AHD | SGA-40100AHD | |||
table size(W*L) | mm | 250*500 | 305*635 | 305*1020 | 406*813 | 406*1020 | |
max.longitudinal travel | mm | 560 | 765 | 1130 | 910 | 1130 | |
cross travel | mm | 275 | 340 | 340 | 450 | 450 | |
max. distance from spindle center to table | mm | 450 | 580 | 580 | 580 | 580 | |
magnetic chuck size | mm | 250*500 | 300*600 | 300*1000 | 400*800 | 400*1000 | |
speed of table longitudinal moving | m/min | from 7 to 23 | |||||
table transverse moving | auto feed | m/min | 0.1-8 | ||||
rapid speed | m/min | 990 | |||||
feed of handwheel | mm/div | 0.02 | |||||
wheel head vertical moving | auto feed | mm/stroke | (AH/AHR mode) 0.005/0.01/0.02/0.03/0.04/0.05(only for AHD mode) | ||||
rapid speed | m/min | (AH mode)460(only for AHR/AHD model) | |||||
feed of handwheel | mm/div | 0.005(only for AHR/AHD model) | |||||
grinding wheel | speed | rpm | 50HZ 2850;60HZ 3450 | 50HZ 1450;60HZ 1750 | |||
| wheel size | mm | 200*20*31.75 | 350*40*127 | | | |
spindle motor | Kw | 2.2 | 5.5 | | | | |
hydraulic motor | Kw | 0.75 | 2.2 | | | | |
cooling pump motor | Kw | 0.04 | 0.125 | | | | |
elevating motor | Kw | 0.25(AHR mode),0.5(AHD mode,servo motor) | |||||
cross feed motor | Kw | 0.04 | |||||
max.loading capacity of table(including magnetic chuck) | kg | 180 | 270 | 400 | 500 | 600 | |
total rated power | kw | 3.7 | 9 | | | | |
height of machine | mm | 1675 | 1890 | | | | |
floor space(L*W) | mm | 2650*2150 | 3800*2200 | 4400*2200 | 3600*2400 | 4400*2400 | |
Gross weight | kg | 1800 | 2700 | 3400 | 3700 | 4200 | |
package size(L*W*H) | mm | 217*212*215 | 235*222*213 | 295*222*215 | 285*227*215 | 295*227*21 |
