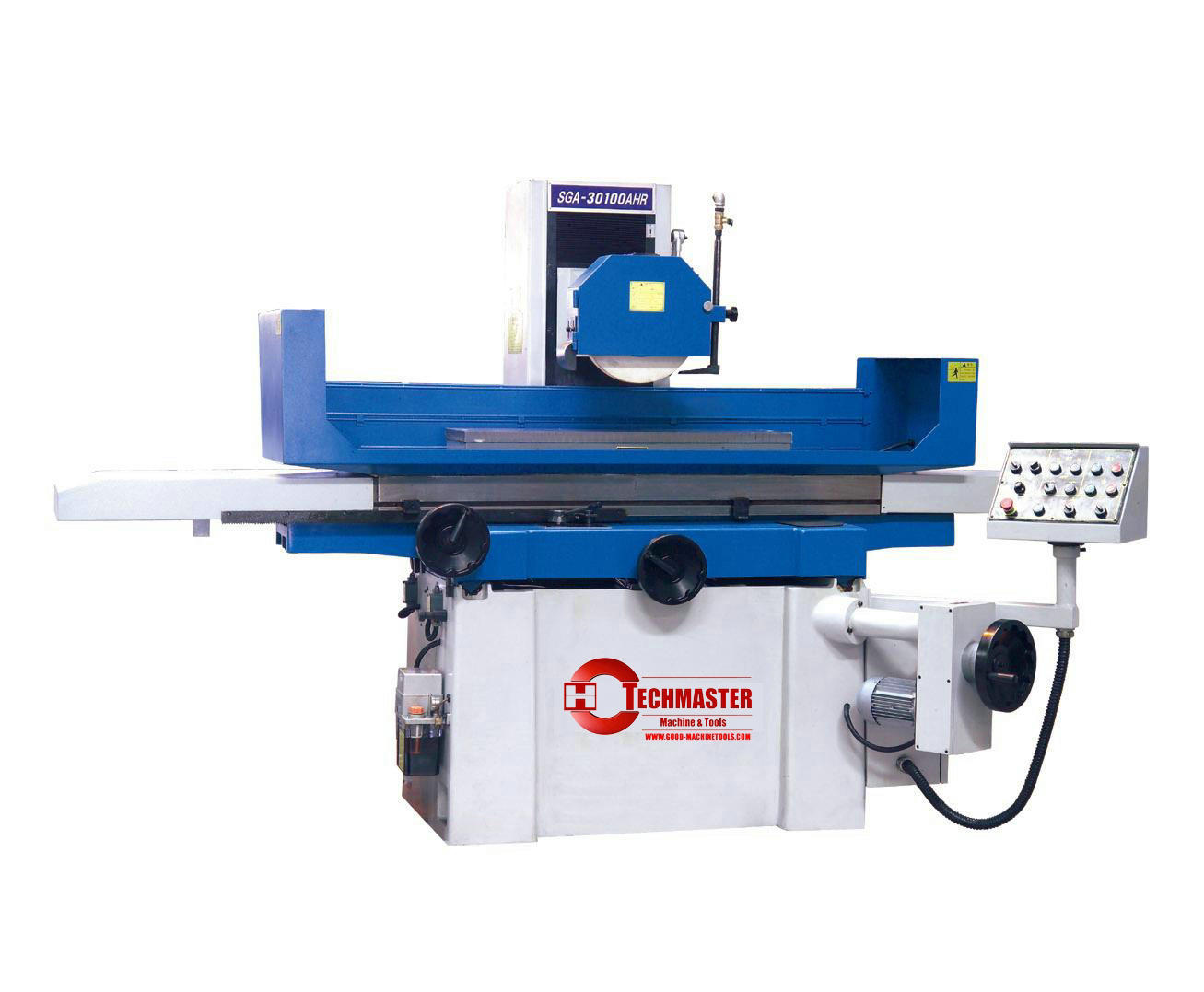

SGA-30100AHR

Item		Unit	SGA-2050H/AH SGA-2050AHR SGA-2050AHD	SGA-2550H/AH SGA-2550AHR SGA-2550AHD	SGA-3063AH SGA-3063AHR SGA-3063AHD	SGA-30100AH SGA-30100AHR SGA-30100AHD	SGA-4080AH SGA-4080AHR SAG-4080AHD	SGA-40100AH SGA-40100AHR SGA-40100AHD
Table size（W*L）		mm	200*460	250*500	305*635	305*1020	406*813	406*1020
Max. travel (Longitudinal x cross)		mm	510*238	560*275	765*340	1130*340	910*450	1130*450
Max. distance from spindle center to table		mm	450	450	580	580	580	580
Electro magnetic chuck size		mm	200*460	250*500	300*600	300*1000	400*800	400*1000
Speed of table longitudinal movement		m/min	7-25
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	m/min	990
	Feed of hand wheel	mm/div	0.02
Wheel head Vertical movement	Auto feed	mm/min	AHD:0.005/0.01/0.02/0.03/0.04/0.05
	Rapid speed	m/min	AHR:460 AHD:240
	Feed of hand wheel	mm/div	0.005
Grinding wheel	Speed	rpm	2850(50HZ)、3450（60HZ）		1450(50HZ)、1750（60HZ）
	Size	mm	200*20*31.75		350*40*127
Spindle motor		kw	1.5	2.2	5.5
Hydraulic motor		kw	0.75		2.2
Cooling pump motor		kw	0.04		0.125
Elevating motor		kw	AHR:0.25 AHD:0.5
Cross feed motor		kw	0.04
Max. loading capacity of table (Include chuck)		kg	120	180	270	400	500	600
Total rated power		kw	3	3.7	9
Height of machine		mm	1675		1890
Floor space		mm	2050*1400	2300*1600	2800*2200	4400*2200	3600*2400	4400*2400
Gross weight		kg	1600	1800	2800	3500	3800	4300
Packing dimension		mm	AH:1780*1500*2155 AHR/AHD:1906*1716*2195	AH:2116*2016*2208 AHR/AHD:2316*2016*2208	2350*2220*2150	2950*2220*2210	2850*2270*2180	2950*2270*2210


Standard accessories:
Coolant tank,
standard electro magnetic chuck,
balancing arbor,
wheel flange,
wheel extractor,
leveling wedge and bolt,
tool box and tools,
standard grinding wheel,
working lamp,
wheel dresser stand(not including diamond pen)
Build in elector magnetic chuck controller
PLC auto controller (only for AHD models)

Optional accessories:
Balancing stand
Dust collector
Coolant tank with magnetic separator,
coolant tank with paper filter,
coolant with magnetic separator and paper filter,
parallel wheel dresser,
luxurious magnetic chuck controller,
universal dresser,
radius& angle dresser,
sine dresser,
digital readout.
