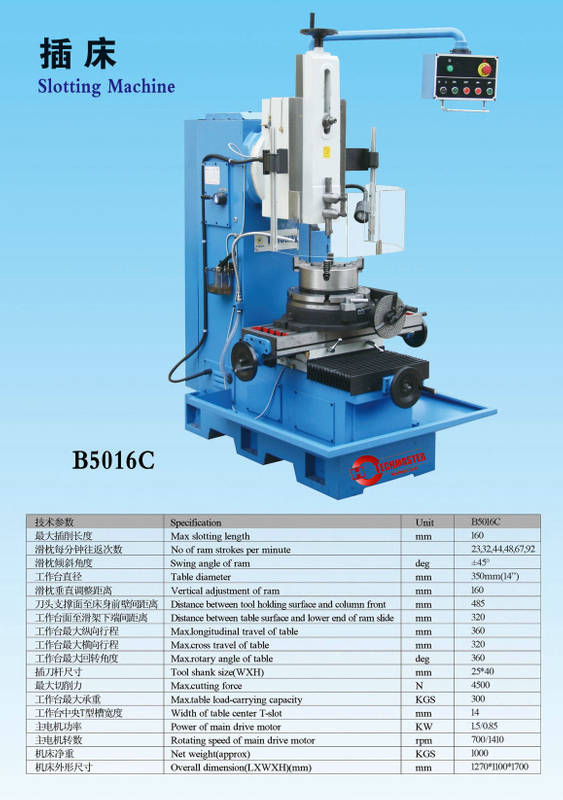

Specification | Unit | B5016C |
Max. Slotting length | mm | 160 |
No. Of ram strokes per minute |
| 23,32,44,48,67 |
Swing angle of ram | deg | 45° |
Table diameter | mm | 350mm |
Vertical adjustment of ram | Mm | 160 |
Distanc between tool holding surface and column front | mm | 485 |
Distance between table surface and lower end of ram slide | mm | 320 |
Max.longitudinal travel of table | mm | 360 |
Max. Cross travle of travel | mm | 320 |
Max.rotary angle of table | deg | 360 |
Tool shank size (WXH) | mm | 25x40 |
Max.cutting force | N | 4500 |
Max.table load-carrying capacity | KGS | 300 |
Width of table center T-slot | Mm | 14 |
Power of main drive motor | Rpm | 700/1410 |
Net weight | KGS | 1000 |
Overall dimensions | mm | 1270x1100x1700 |
