| Quantity: | |
|---|---|

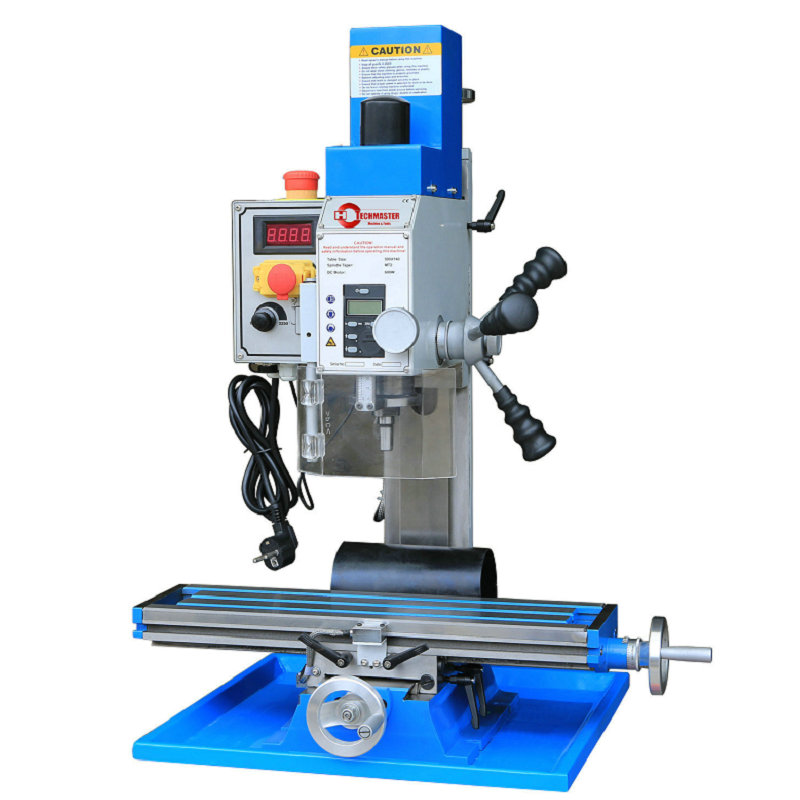

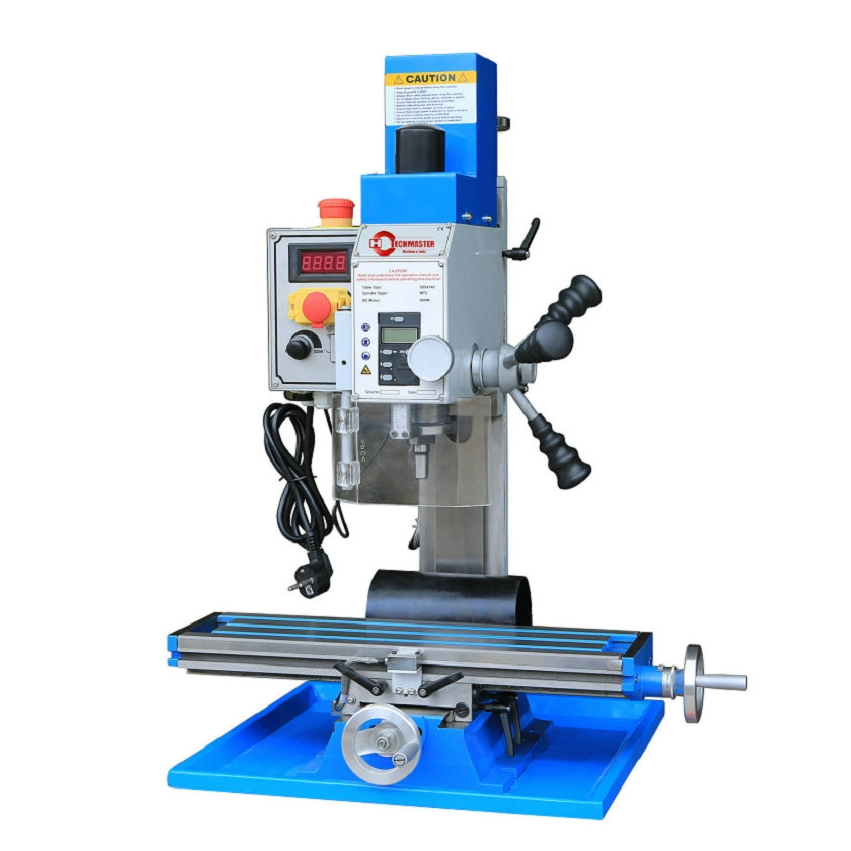

| MODEL | BF16VL |
| Max. drilling capacity | 16mm |
| Max. end milling capacity | 16mm |
| Max. face milling capacity | 50mm |
| Table size | 500x140mm |
| Table travel (X,Y) | 220X160mm |
| T-slot | 3x10mm |
| Spindle taper | MT2 |
| Spindle stroke | 50mm |
| Step of spindle speeds | Variable |
| Range of spindle speeds | 100-2500rpm |
| Spindle incline angle | ±90° |
| Distance from spindle to column | 175mm |
| Distance from spindle nose to table | 275mm |
| Motor | 750W |
| Packing size | 500x540x840mm |
| Net weight | 60KG |
Standard Accessories
| Drill chuck 3-16/ B16 |
| Drawbar |
| Arbor MT2/B16-M10 |
| Digital Depth Ruler |
| Spindle Cover with Micro Switch |
| Toolbox and tools |
Optional Accessories
| Tapping Function |
| Keyless Drill Chuck 3-16mm |
| ER 25 Collet Chucks MT2(8pcs) |
| Vice BMS80 |
| HSS 10 pcs Drill sets |
| End Mill Sets 7pcs 4-16mm |
| 3-Axis DRO(Magnetic Scales) |
| 58pcs clamping kits M10 |
| Oil Tray |
| Stand |
| Luxury Stand |
