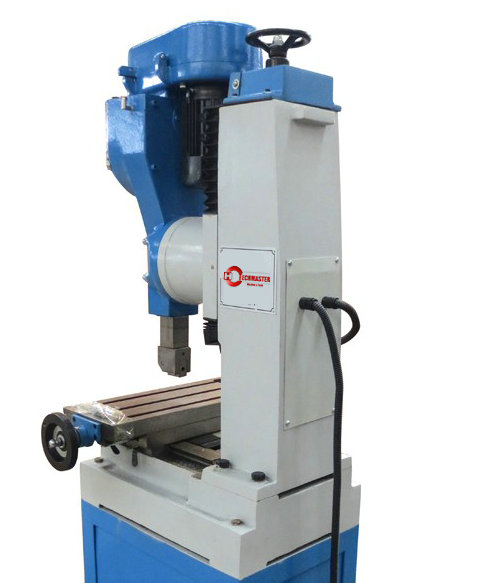

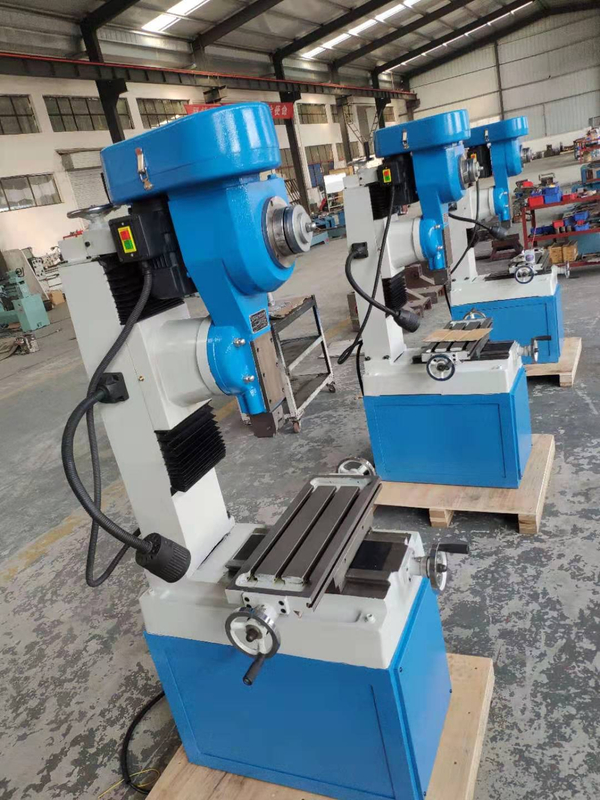

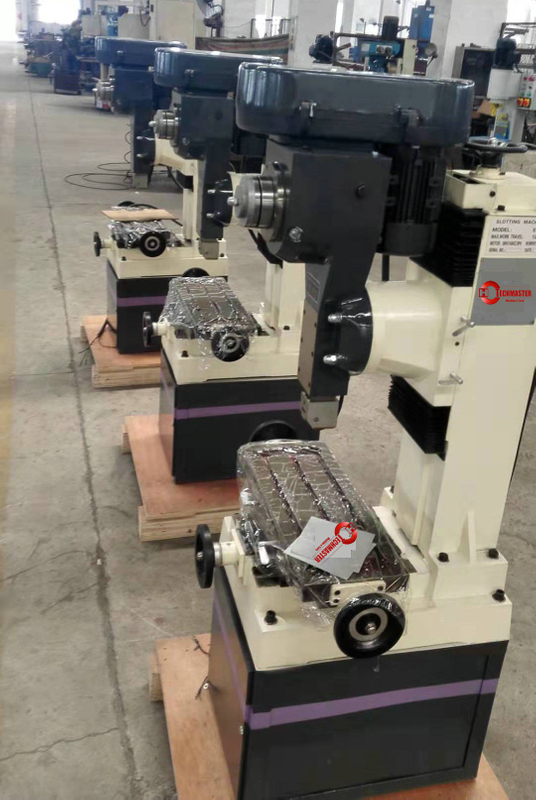

SMALL VERTICAL SLOTTING MACHINE XC-100/ XC-125
Quantity: -
XC-100 / XC-125
oject
Parameter
XC-100
XC-125
The biggest slotting(mm)
100
125
Minimum number of stroke (times/min))
60
60
Maximum stroke times (times/min)
350
350
The spindle speed
6
6
For the turning Angle of rest
90
90
Table size (mm)
500*200
500*200
Table travel (mm)
200*150
200*150
The motor power (W)
250
370
Overall dimensions (mm)
750*750*1550
750*750*1550
The net weight/gross weight (Kg)
236/286
243/293
Installation dimensions
T bolt dividing circle (mm)
150
150
For the turning Angle of rest
360
360
T bolt size (mm)
M12X80
M12X80
Note: the installation size is only for choice, other size can also order according to user requirements.
