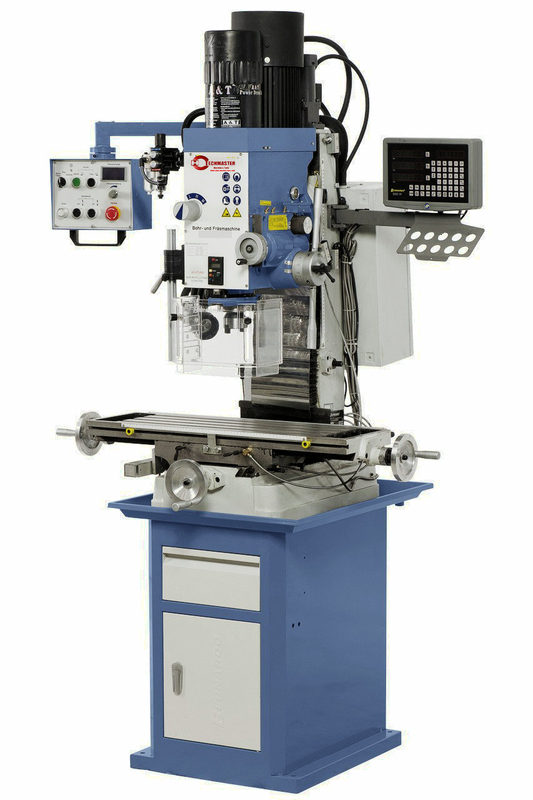

STEPLESS AUTO FEEDING DRILLING AND MILLING MACHINE EUROPE STYLE J-ZX45VD DRO
Quantity: Vario drilling and milling machine features a motorised height adjustment of the mill head and an automatic spindle feed. However, the stepless speed adjustment makes this model truly unique. Additionally this model comes with a pneumatic tool clamping device in accordance with DIN 2080 and a 3-axis digital readout.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
32 mm
Drilling capacity in cast iron
40 mm
Distance spindle to column
240 mm
Spindle speed, stepless
120-600 / 270 – 1350 / 620 – 3100 rpm
Spindle taper
ISO 40
Spindle stroke
130 mm
Spindle feed
(3) 0,12 / 0,19 / 0,26 mm/rev.
Table size / T-slot size
820 x 240 mm / 14 mm
Distance spindle / table
95 - 395 mm
Travel (x / y)
530 / 140 mm
Mill head tiltable
-90° to +90°
Height adjustment of mill head
300 mm
Lifting motor
90 W
Motor power output S1 100%
2,2 kW (400 V)
Motor power input S6 40%
3,0 kW (400 V)
Machine dimension (W x D x H) *
1200 x 950 x 1500 mm
Weight approx.
345 kg
* without stand
FEATURES- Pneumatic tool clamping device shortens conversion times significantly
- Automatic spindle feed and thread cutting device come standard
- Delta frequency inverter ensures variable speed adjustment with optimal torque
- Many possible applications, such as groove milling, face milling, reboring etc.
- Lifting motor ensures convenient height adjustment of milling head
- Dovetail guide of gear unit guarantees rigidity
- Digital display for speed and spindle stroke comes standard
- Manual central lubrication for all guide ways
Standard accessories:
- 3-axis digital readout
- Automatic spindle feed
- Thread cutting device
- Pneumatic tool clamp
- Digital speed indication
- Digital spindle stroke indication
- Frequency inverter
- Lifting motor for mill head
- Central lubrication
- Drawbar M 10 with adapter M 16
- Drill chuck 1 - 16 mm / B 18
- Drill chuck arbor ISO 40 / B 18
- Morse taper drill sleeve ISO 40/MT 3, ISO 40/MT 2
- Milling head 80 mm with ISO 40 taper
- LED machine light
- Height adjustable protective cover
- Steel cover
- Tools
