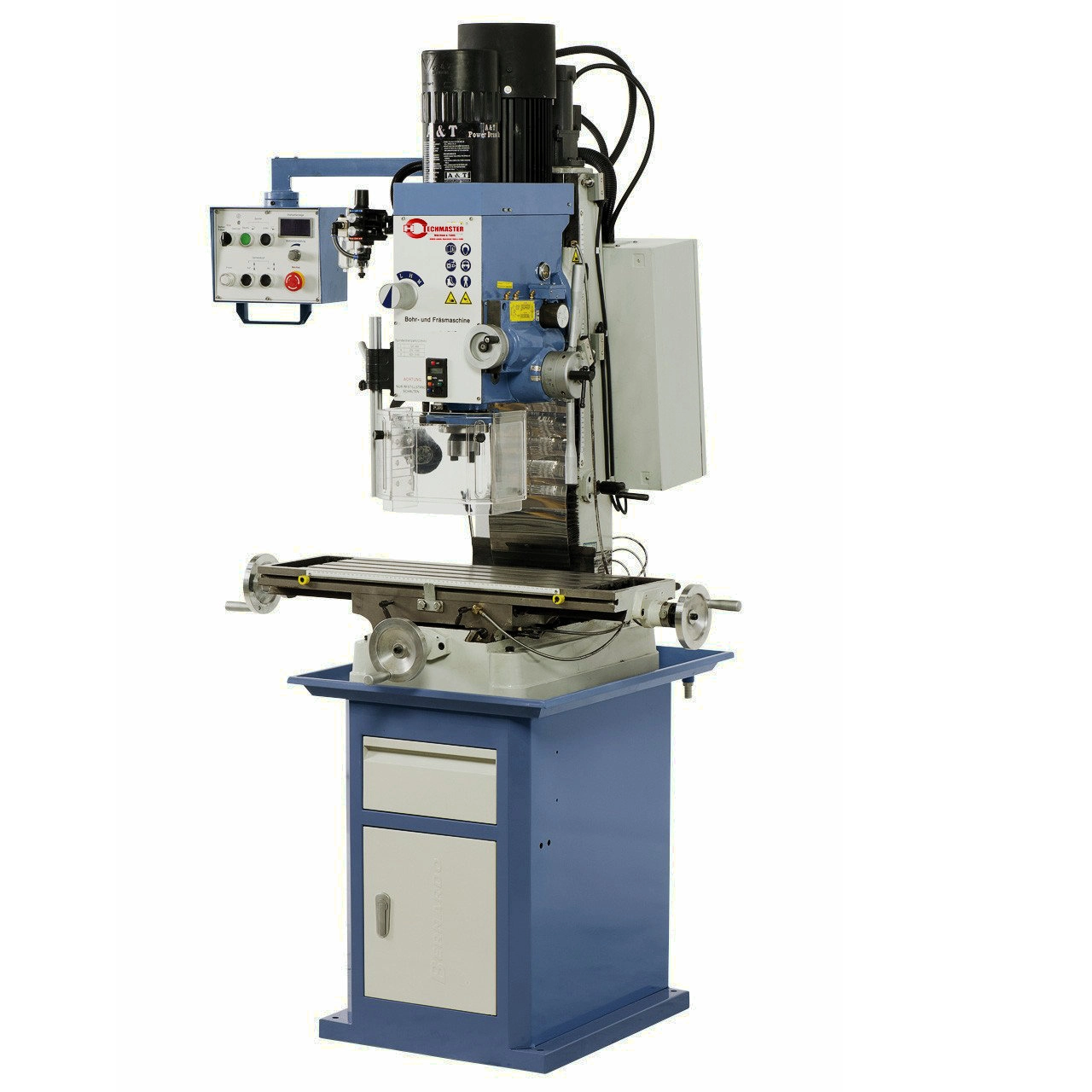

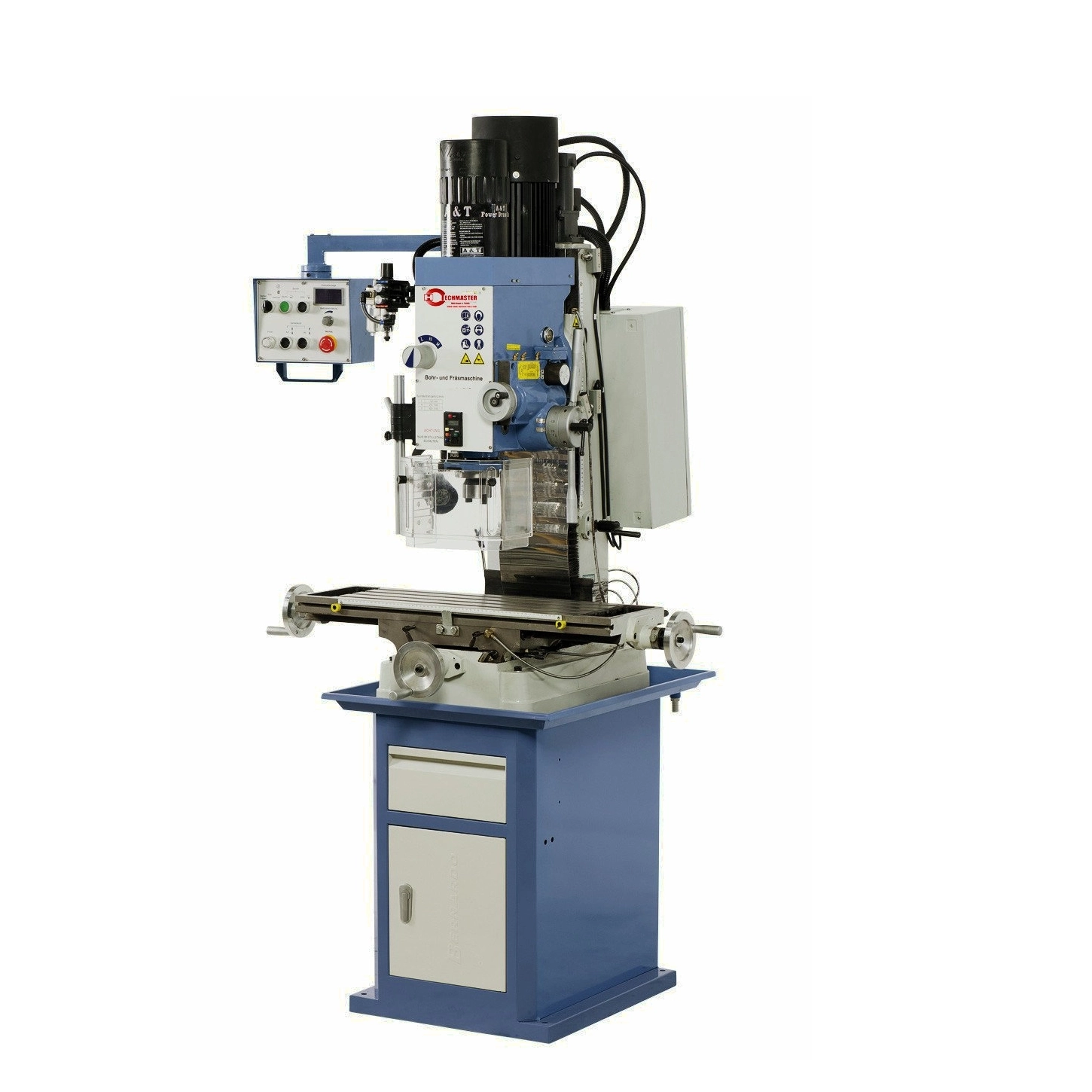

Vario drilling and milling machine features a motorised height adjustment of the mill head and an automatic spindle feed. However, the stepless speed adjustment makes this model truly unique.
Drilling capacity in steel | 32 mm |
Drilling capacity in cast iron | 40 mm |
Distance spindle to column | 240 mm |
Spindle speed, stepless | 120-600 / 270 – 1350 / 620 – 3100 rpm |
Spindle taper | ISO 40 |
Spindle stroke | 130 mm |
Spindle feed | (3) 0,12 / 0,19 / 0,26 mm/rev. |
Table size / T-slot size | 820 x 240 mm / 14 mm |
Distance spindle to table | 95 - 395 mm |
Travel (x / y) | 530 / 180 mm |
Mill head tiltable | -90° to +90° |
Height adjustment of mill head | 300 mm |
Lifting motor | 90 W |
Motor power output S1 100% | 2,2 kW (400 V) |
Motor power input S6 40% | 3,0 kW (400 V) |
Machine dimension (W x T x H)* | 1200 x 950 x 1500 mm |
Weight approx. | 325 kg |
* without stand
FEATURES
Delta- frequency inverter ensures variable speed adjustment with optimal torque
Wide range of applications, such as slotting, face milling, circular milling etc.
Automatic spindle feed and thread cutting device come standard
Mill head tilts to both sides for angular boring, groove milling and many more
Lifting motor ensures convenient height adjustment of milling head
Dovetail guide of gear unit guarantees rigidity
Handle allows for spindle adjustment, hand wheel allows for fine feed
Digital display for speed and spindle stroke comes standard
Manual central lubrication for all guide ways
Standard accessories:
Automatic spindle feed
Thread cutting device
Digital speed indication
Digital spindle stroke indication
Frequency inverter
Lifting motor for mill head
Central lubrication
Drawbar M 10 with adapter M 16
Drill chuck 1 - 16 mm / B 18
Drill chuck arbor ISO 40 / B 18
Morse taper drill sleeve ISO 40/MT 3, ISO 40/MT 2
Milling head 80 mm with ISO 40 taper
LED machine light
Height adjustable protective cover
Steel cover
